Product Overview
The FA9TE Hydraulic Linear & Rotational Flange Alignment Tool is a simple solution to large diameter high pressure flange joint misalignment.
- Maximum Reaction Force of 9 tonnes
- Has a tool weight of 14.5 kg
- Bolt Diameter of 35.5 mm
Technical specifications
Model Number | Maximum Reaction Force (metric ton) | Maximum Reaction Force (kN) | Minimum Bolt Size (mm) | Reaction Force 2 Max (metric ton) | Bolt Hole Diameter Min (mm) B | Misalignment Min (mm) M | Weight (kg) |
---|---|---|---|---|---|---|---|
FA9TESTD | 9 | 90 | 35.5 | 9 | 35.5 | 0 | 14.5 |

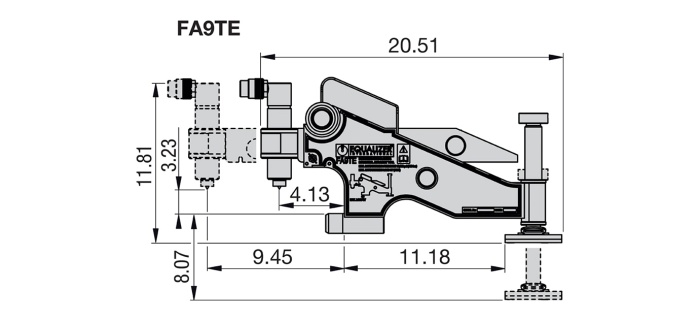

Dimension

Dimensions (mm)
Model number | Case Dimensions |
---|---|
FA9TESTD | 920 x 520 x210 |
