Die Grinders
- Patented exhaust muffler technology significantly reduces noise levels
- Features a speed control switch which offers added control
- Ergonomically designed housing and grip for improved operator comfort
Product Overview
AIRCAT® die grinders are engineered to provide the power required to complete the job effortlessly and quietly. These ultra-quiet tools feature the most comfortably designed triggers with ergonomic grips that relieve stress and fatigue on the operator’s hands, wrists and arms. The range offers a choice of 13 models with options of precision collets, spindles and gears to suit the unique application as well as provide low service run-out and long life.
- Collet sizes up to 11"
- Choice of 0.4 to 1.0 HP motors
- Free speeds up to 22,000 RPM
Product resources
Technical specifications
| Model number | Free Speed RPM | Collet Size (in) | Motor (hp) | Gears | Air Cons. (CFM) | Exhaust | Rec. Hose Size | Air Inlet (in) | Vibration m/sec2 | Noise dBA | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|

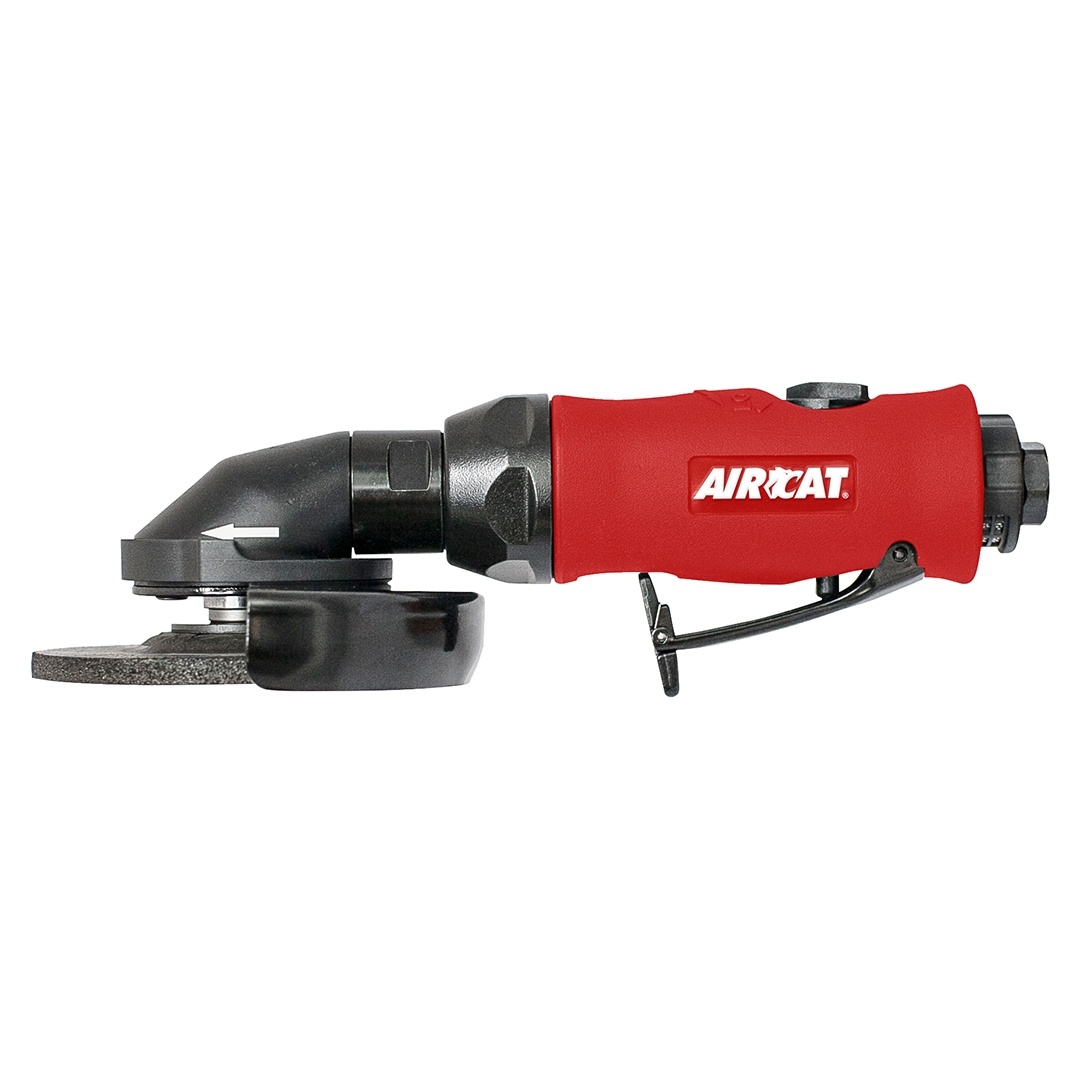

| 6340-A | 11,000 | 5/8" - 11 | 1 | Spiral Bevel | 6 | Rear | 3/8 | 1/4 NPT | 1.2 | 88 | 1.02 |
| 6220 | 15,000 | 3/8" x 24 | 0.5 | Spiral Bevel | 3.5 | Rear | 3/8 | 1/4 NPT | 0.6 | 80 | 0.68 |
| 6265 | 18,000 | 1/4 | 1 | Spiral Bevel | 4.2 | Rear | 3/8 | 1/4 NPT | 2.5 | 89 | 0.82 |
| 6280 | 18,000 | 1/4 | 0.75 | 5:1 Bevel Gears | 4.1 | Rear | 3/8 | 1/4 NPT | 2.5 | 79 | 0.82 |
| 6295 | 18,000 | 1/4 | 0.6 | Bevel | 6 | Rear | 3/8 | 1/4 NPT | 4.5 | 80.6 | 0.73 |
| 6200 | 20,000 | 1/4 | 0.4 | Direct Drive | 4 | Rear | 3/8 | 1/4 NPT | 2.9 | 82 | 0.41 |

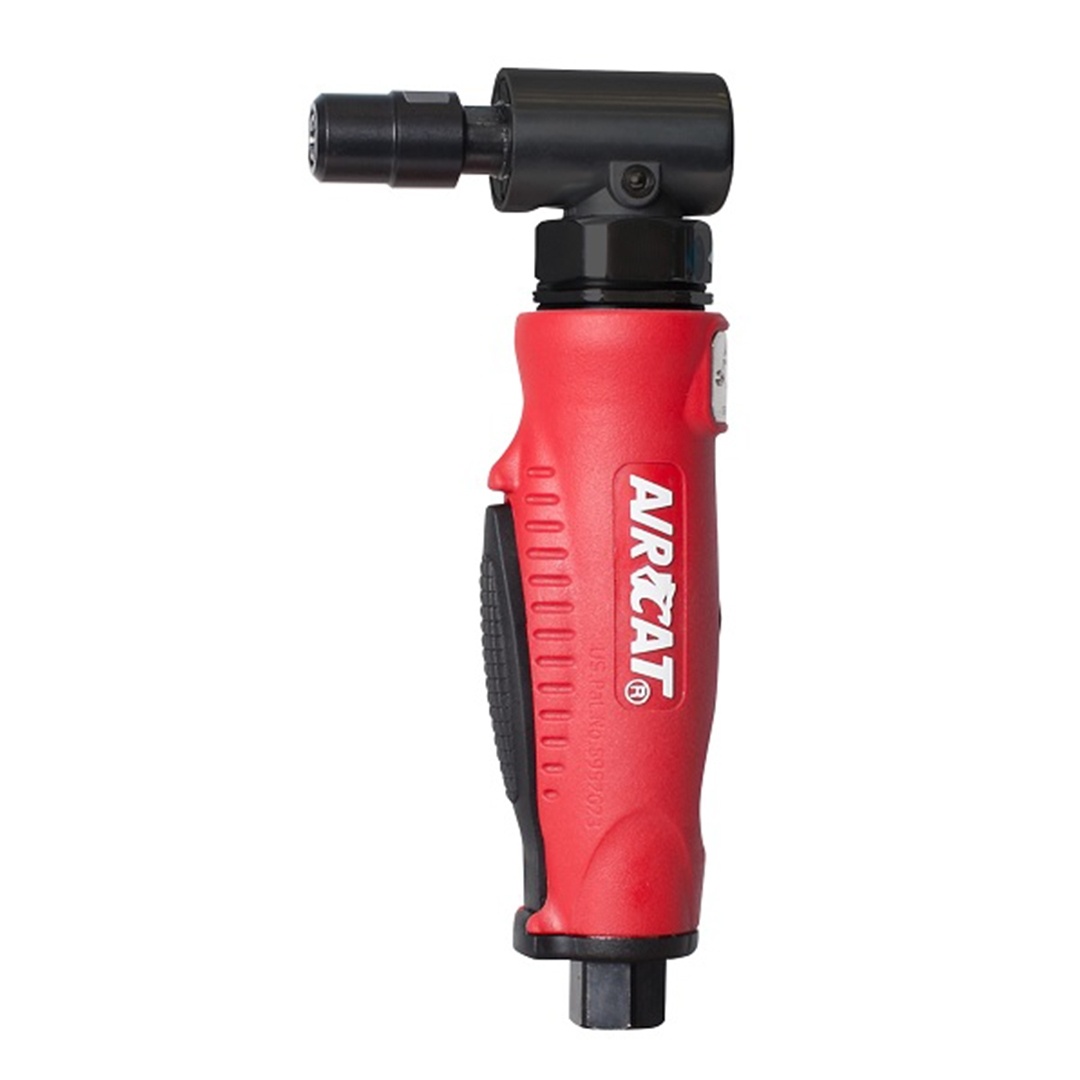

| 6255 | 20,000 | 1/4 | 0.4 | Spiral Bevel | 4.2 | Rear | 3/8 | 1/4 NPT | 4.5 | 82 | 0.50 |

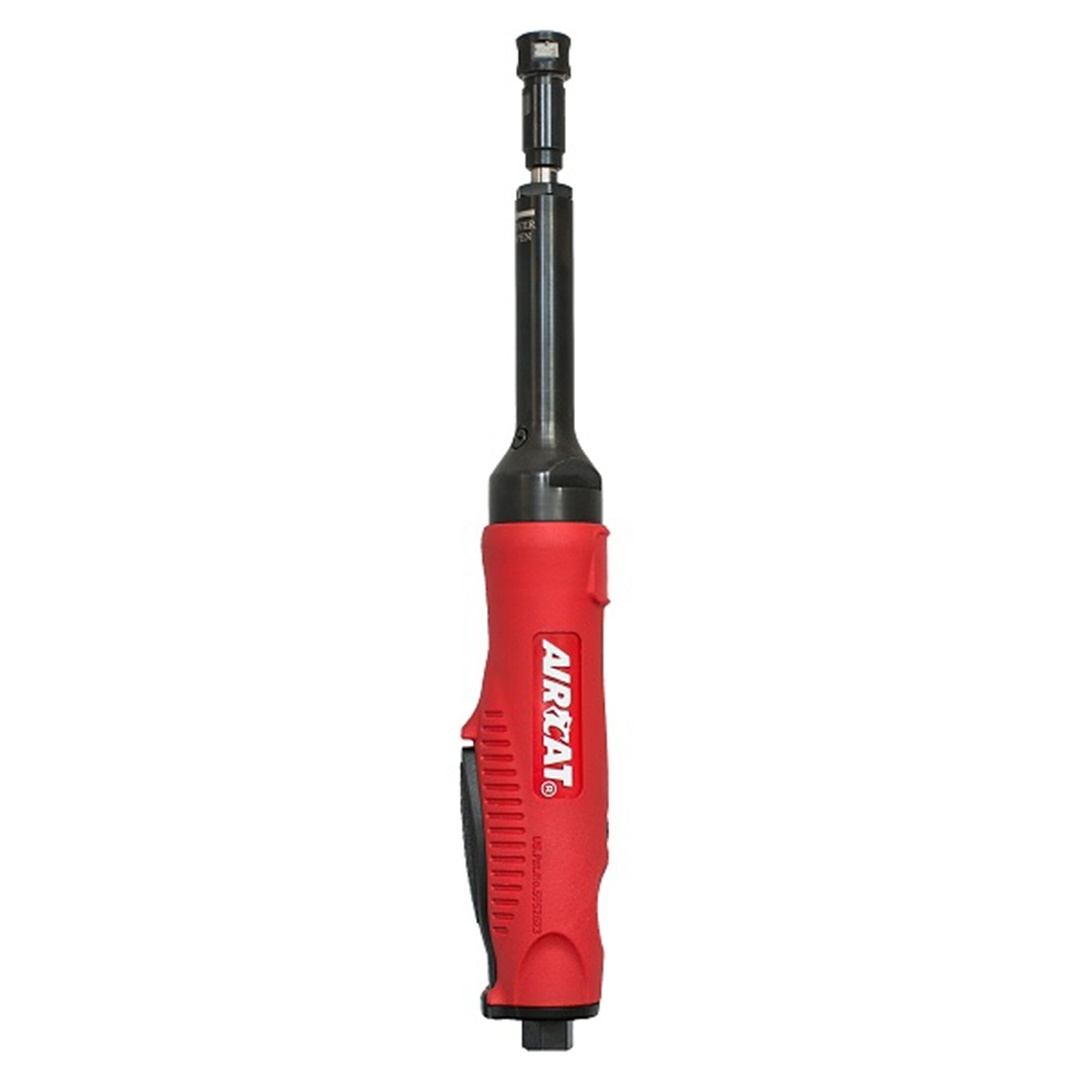

| 6270 | 20,000 | 1/4 | 1 | Direct Drive | 6 | Rear | 3/8 | 1/4 NPT | 2.5 | 80 | 1.41 |
| 6285 | 20,000 | 1/4 | 0.75 | Direct Drive | 4.1 | Rear | 3/8 | 1/4 NPT | 2.5 | 79 | 0.64 |

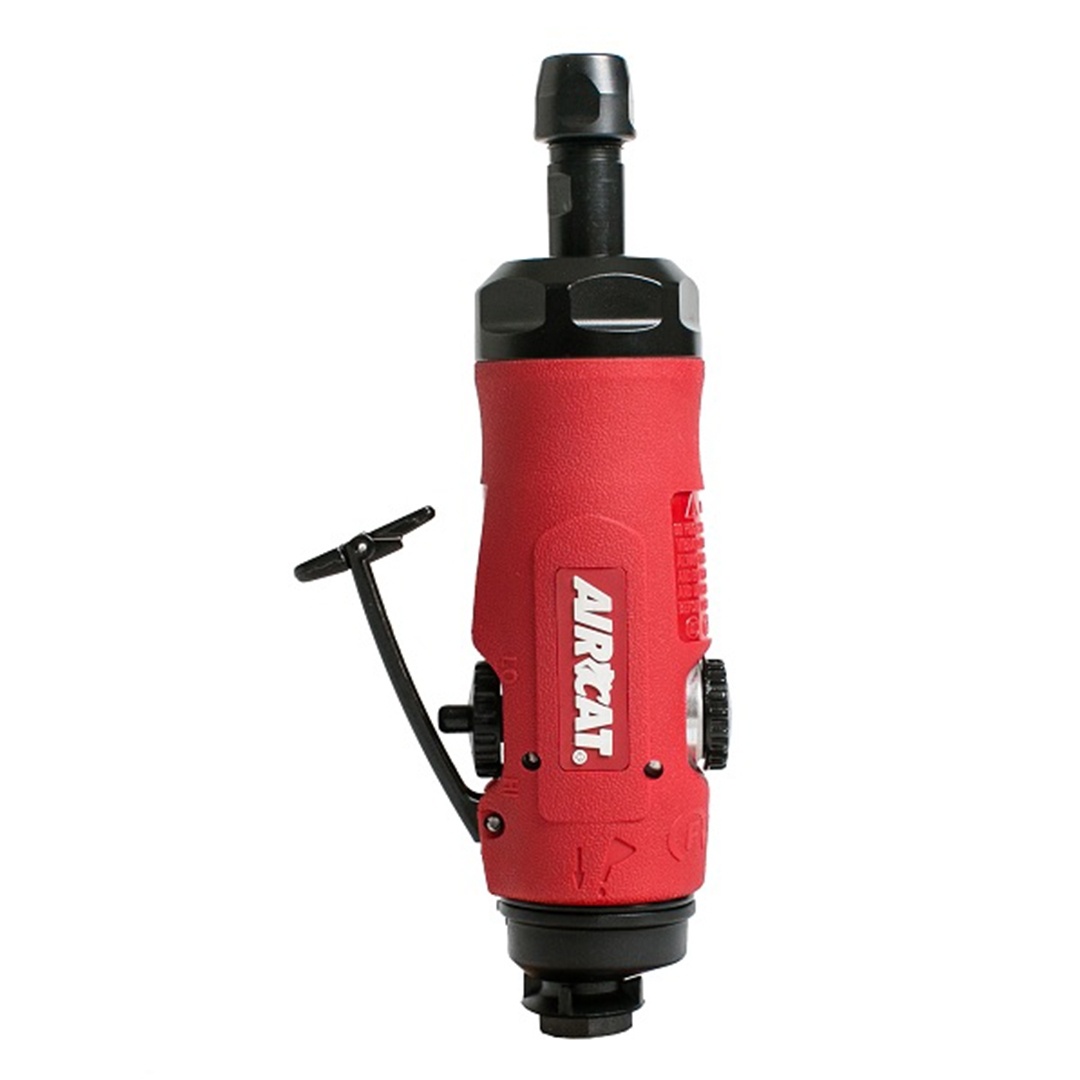

| 6290 | 20,000 | 1/4 | 0.75 | Direct Drive | 4.1 | Rear | 3/8 | 1/4 NPT | 2.5 | 79 | 0.64 |
| 6201 | 22,000 | 1/4 | 0.5 | Direct Drive | 4.2 | Rear | 3/8 | 1/4 NPT | 3.1 | 82 | 0.50 |
| 6210 | 22,000 | 1/4 | 0.5 | Direct Drive | 4.2 | Rear | 3/8 | 1/4 NPT | 3.1 | 82 | 1.14 |
| 6260 | 22,000 | 1/4 | 1 | Direct Drive | 6 | Rear | 3/8 | 1/4 NPT | 2.3 | 82 | 0.55 |
Dimension
Dimensions (mm)
| Model number | Length | Width | Height |
|---|---|---|---|
| 6340-A | 222.25 | 132.08 | 71.12 |
| 6220 | 177.80 | 63.50 | 64.77 |
| 6265 | 241.30 | 43.18 | 78.74 |
| 6280 | 177.80 | 86.36 | 43.18 |
| 6295 | 203.20 | 44.45 | 82.55 |
| 6200 | 165.10 | 38.10 | 43.18 |
| 6255 | 177.80 | 38.10 | 78.74 |
| 6270 | 359.41 | 45.72 | 50.80 |
| 6285 | 177.80 | 45.72 | 45.72 |
| 6290 | 177.80 | 43.18 | 43.18 |
| 6201 | 215.90 | 43.18 | 50.80 |
| 6210 | 342.90 | 43.18 | 50.80 |
| 6260 | 234.95 | 43.18 | 50.80 |
