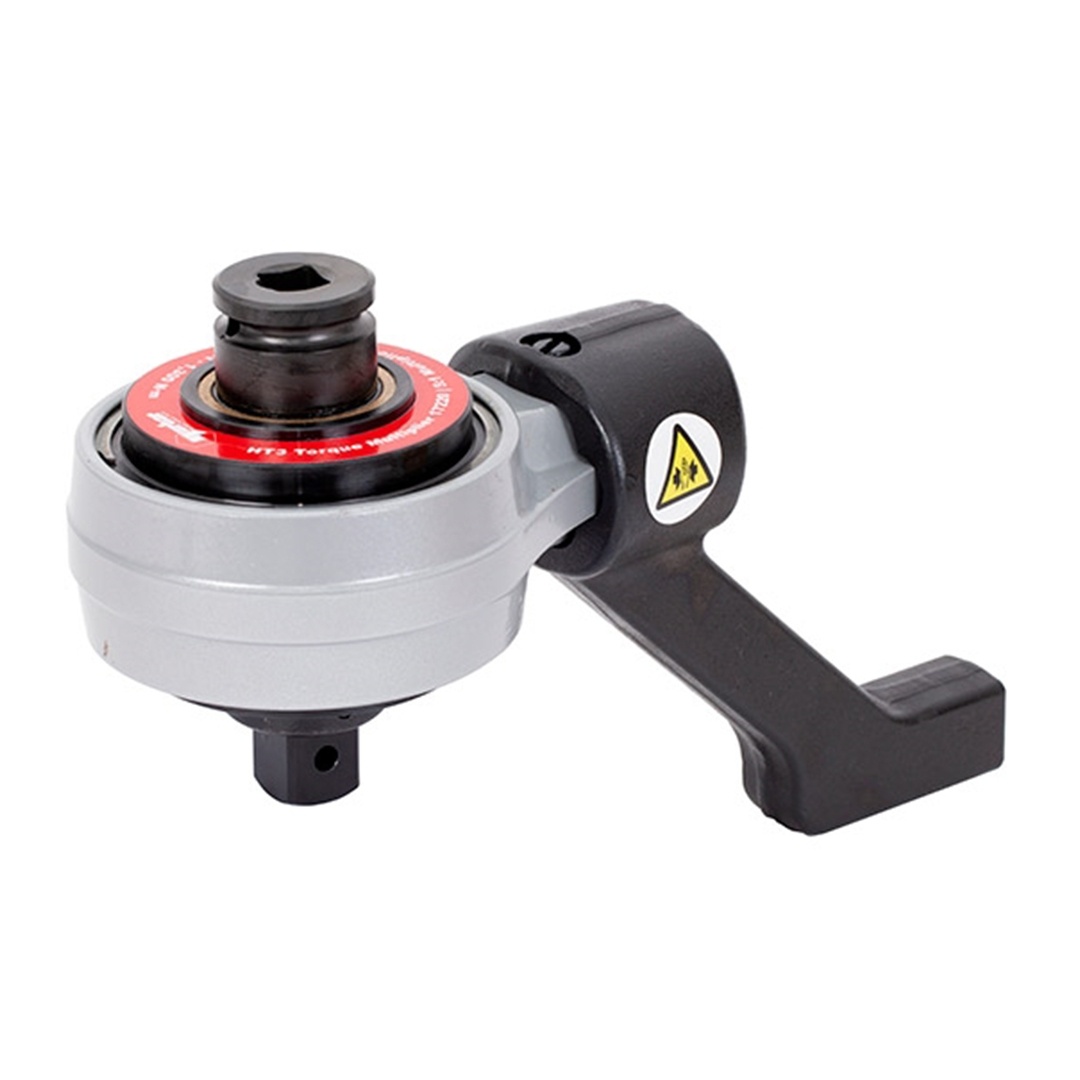

HT3 Series

  • Supplied with two reaction bar styles for maximum versatility

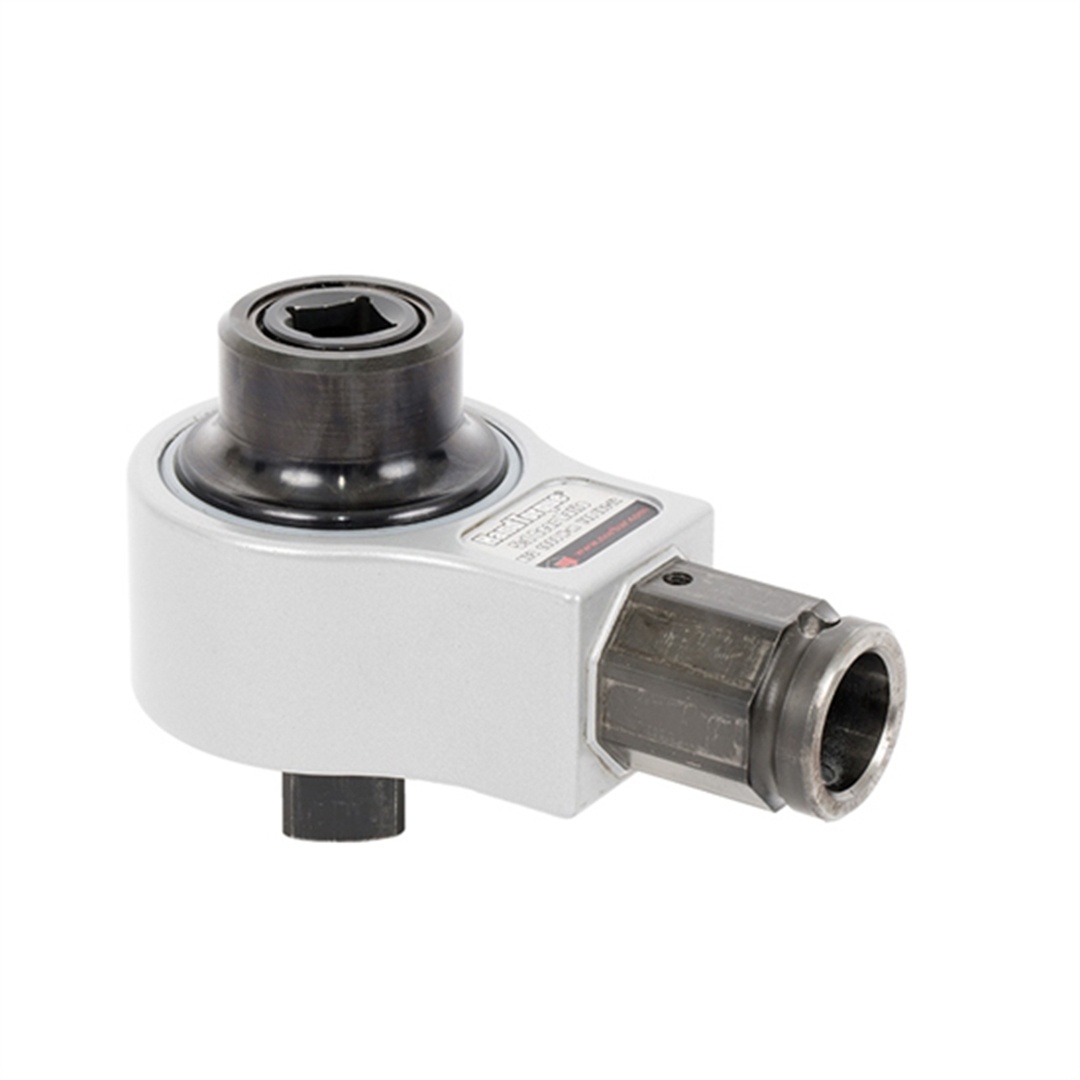

  • Quick-change cranked reaction on HT3-1000 with improved flexibility allowing reaction in 8 orientations
  • Robust construction means minimal maintenance and long life
Enquire now

Product Overview

The HT3 'Highwayman' torque multiplier range from Norbar has been designed for use where it is necessary to provide higher torques than would otherwise be possible, due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one-fifth of the desired output torque.

  • Operates between 1000 and 2700 Nm
  • Square drive sizes of 3/4" and 1"
  • 5:1 nominal torque multiplication, accuracy ±4%

Product resources

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire

Related products

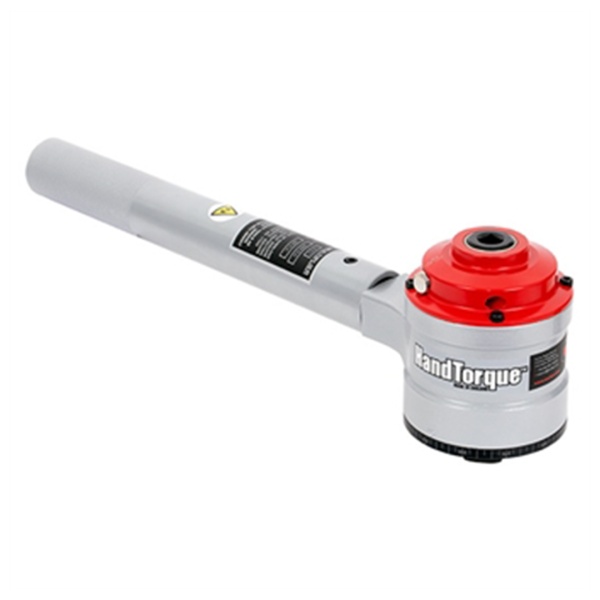

HT4 Series

Norbar manual torque multipliers HT4

View

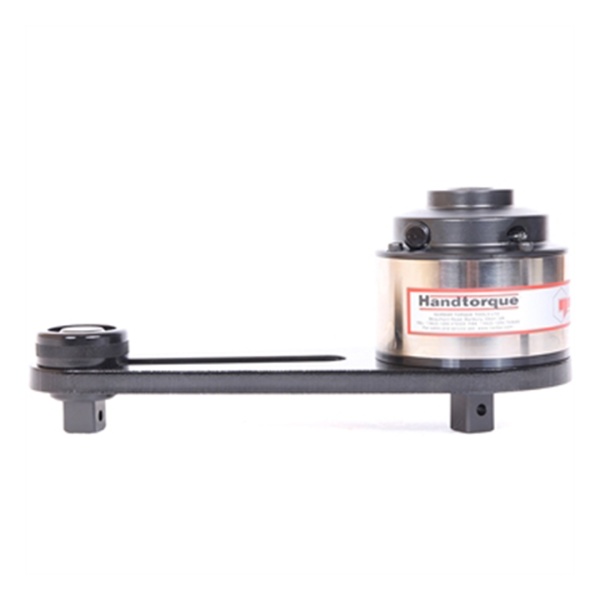

Standard Series
