Hi-Force product

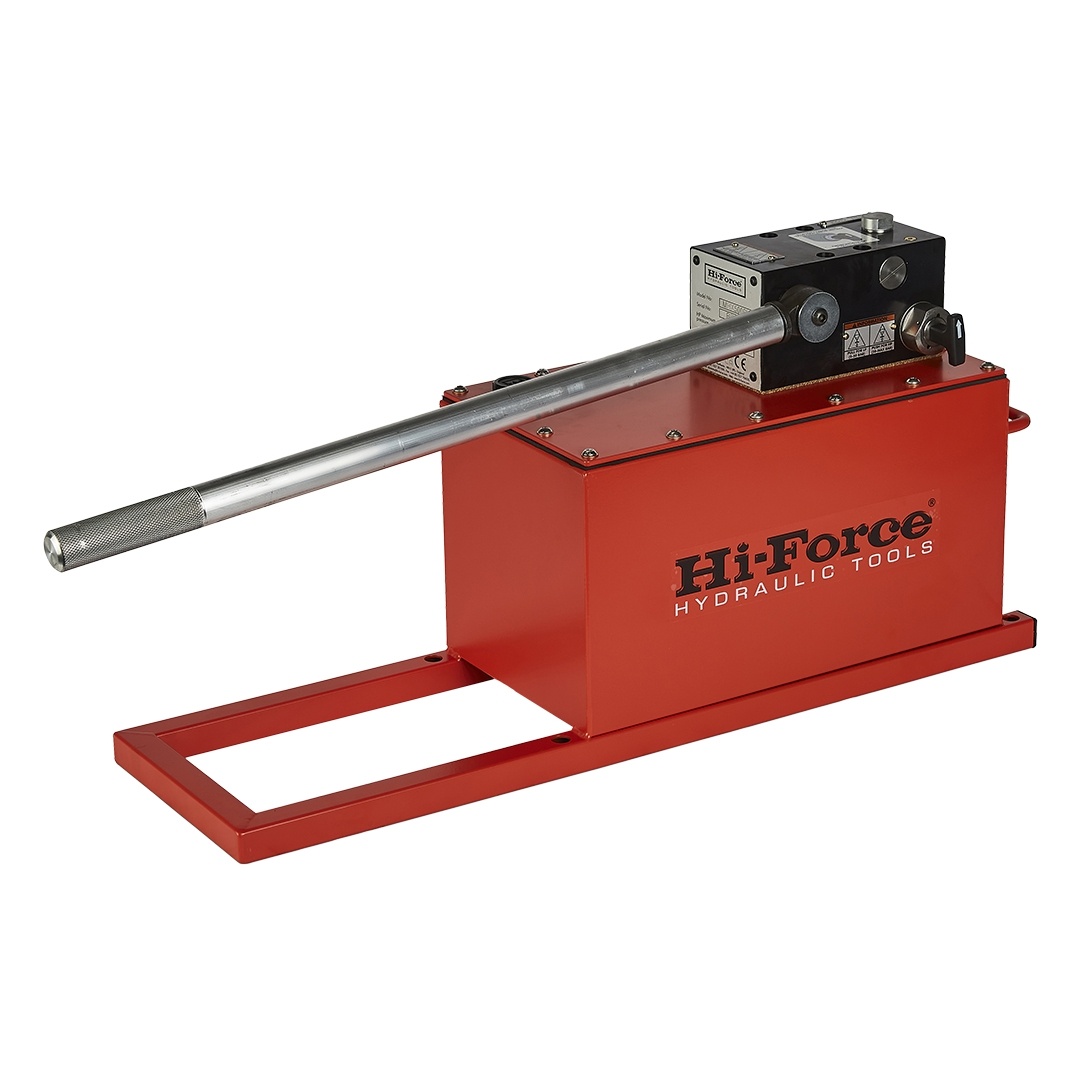

MHX Range
Manually Operated Hydrotest Pumps
- Lightweight aluminium alloy pump unit with integral factory set safety relief valve
- High grade stainless steel pistons for increased resistance to corrosion
- Smooth manually operated 2-way pressure and release valve with precise control
- Stainless steel, powder coated, 15 litres capacity reservoir with extended foot reaction bar
Product Overview
The Hi-Force MHX series of manually operated two speed hydrotest pumps are suitable for use in several applications including hydro-testing of pipes, pressure vessels, valves, and also back-up systems and other pressure retaining equipment, prior to commissioning.
- Choice of 5 models available
- Maximum output pressures up to 1000 bar
- Two stage displacement with manual T-Handle changeover plunger
Product resources
Technical specifications
| Model Number (with reservoir) | Working Pressure bar | Displacement Per Stroke cm3 | Changeover Pressure bar | Outlet Port | Weight with reservoir kg* | |
|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | |||||
| MHX100 | 100 | 50 | 22 | 50 | 3/8" NPT | 20 |
| MHX300 | 300 | 50 | 8 | 50 | 3/8" NPT | 20 |
| MHX500 | 500 | 50 | 4 | 50 | 3/8" NPT | 20 |
| MHX700 | 700 | 50 | 3 | 50 | 3/8" NPT | 20 |
| MHX1000 | 1000 | 50 | 2 | 50 | 3/8" BSP | 20 |
*Weight excluding fluid
Pressure Gauges
| Model Number | Pressure Range bar |
|---|---|
| MHX100GK | 110 |
| MHX300GK | 310 |
| MHX500GK | 552 |
| MHX700GK | 700 |
| MHX1000GK | 1000 |
Hoses
| Model Number | Max. working pressure bar | Length metres | Weight kg | End Fitting | For Model Number |
|---|---|---|---|---|---|
| HH3-6NMS-1 | up to 300 | 3 | 0.8 | 3/8" NPT Male Swivel | MHX100 & MHX300 |
| HH3-6NMS-2 | up to 700 | 3 | 0.9 | 3/8" NPT Male Swivel | MHX500 & MHX700 |
| HH3-6NMS-3 | 1000 | 3 | 1.5 | 3/8" BSP Male Swivel | MHX1000 |
Dimension
