MS Range

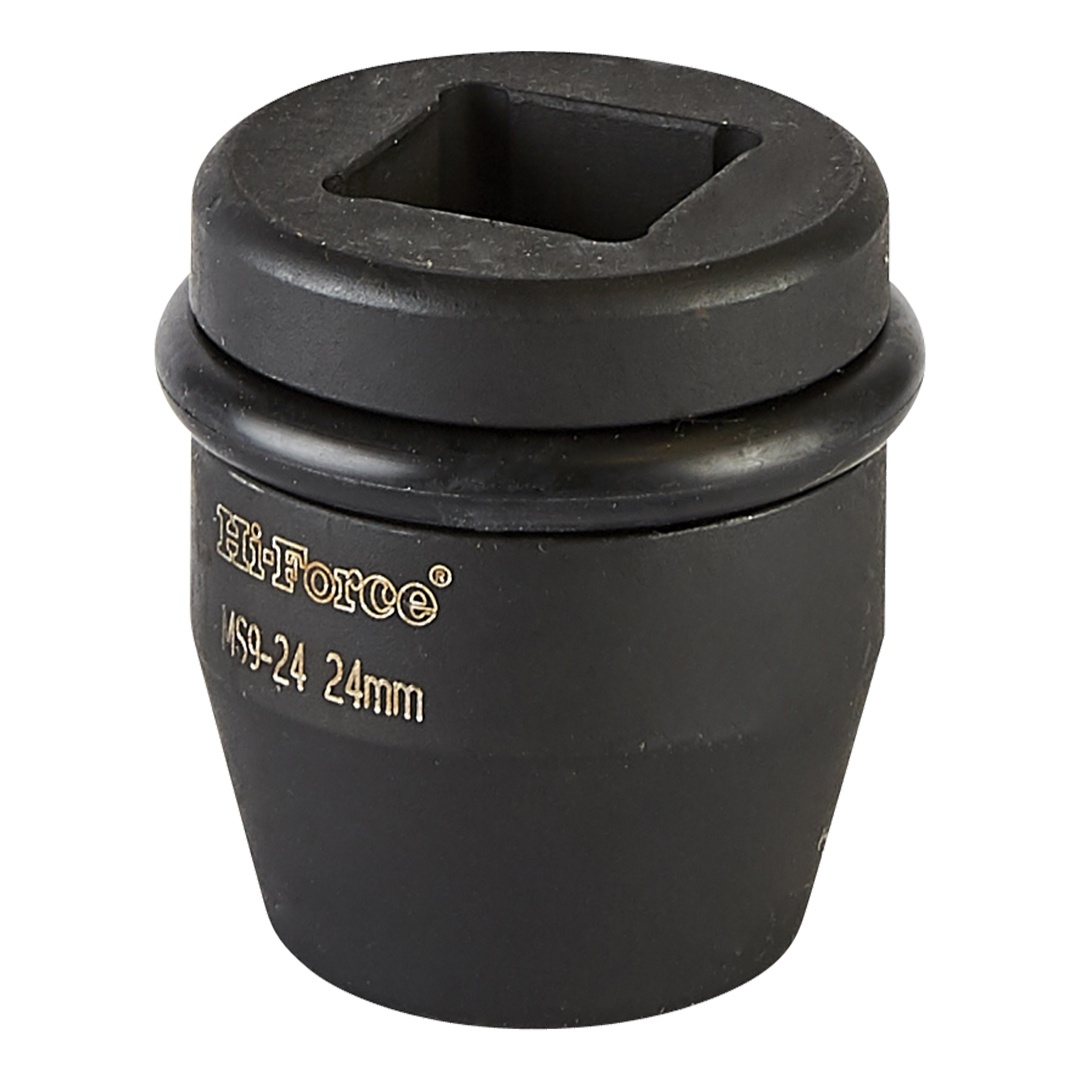

Metric Hexagon AF Size Heavy Duty Sockets

Enquire now

Product Overview

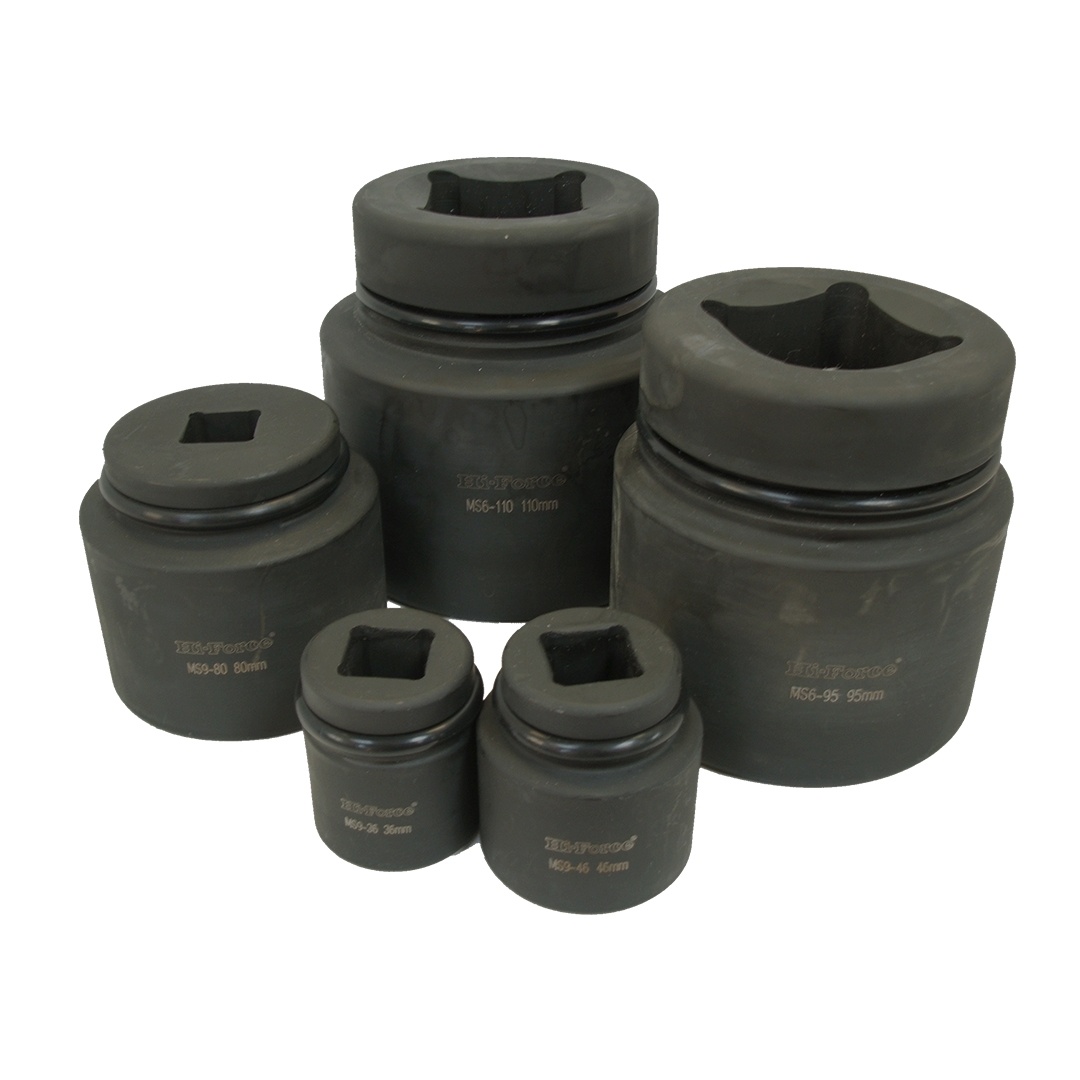

Hi-Force high quality metric size heavy duty sockets are designed and manufactured for use with all Hi-Force bolting products, including hydraulic torque wrenches and impact wrenches. The MS range of metric impact sockets offers 56 models, with square drives from ¾” to 2 ½” and across flat sizes up to 145 mm. Long length, bi-hexagonal and special sockets are available on request.

Square drives from ¾" to 2 ½"
Across flat sizes up to 145 mm
Supplied complete with retaining ring and pin

Product resources

MS Catalogue Page

ModelNumber	Square Drive	Nut AF mm
MS2-24	3/4"	24
MS2-27	3/4"	27
MS2-30	3/4"	30
MS2-32	3/4"	32
MS2-36	3/4"	36
MS2-41	3/4"	41
MS2-46	3/4"	46
MS2-50	3/4"	50
MS2-55	3/4"	55
MS2-60	3/4"	60
MS9-24	1"	24
MS9-27	1"	27
MS9-30	1"	30
MS9-32	1"	32
MS9-36	1"	36
MS9-41	1"	41
MS9-46	1"	46
MS9-50	1"	50
MS9-55	1"	55
MS9-60	1"	60
MS9-65	1"	65
MS9-70	1"	70
MS9-75	1"	75
MS9-80	1"	80
MS9-85	1"	85
MS9-90	1"	90
MS9-95	1"	95
MS9-100	1"	100
MS5-36	1 1/2"	36
MS5-41	1 1/2"	41
MS5-46	1 1/2"	46
MS5-50	1 1/2"	50
MS5-55	1 1/2"	55
MS5-60	1 1/2"	60
MS5-65	1 1/2"	65
MS5-70	1 1/2"	70
MS5-75	1 1/2"	75
MS5-80	1 1/2"	80
MS5-85	1 1/2"	85
MS5-90	1 1/2"	90
MS5-95	1 1/2"	95
MS5-100	1 1/2"	100
MS5-105	1 1/2"	105
MS5-110	1 1/2"	110
MS5-115	1 1/2"	115
MS5-130	1 1/2"	130
MS6-80	2 1/2"	80
MS6-85	2 1/2"	85
MS6-90	2 1/2"	90
MS6-95	2 1/2"	95
MS6-100	2 1/2"	100
MS6-105	2 1/2"	105
MS6-110	2 1/2"	110
MS6-115	2 1/2"	115
MS6-130	2 1/2"	130
MS6-145	2 1/2"	145

Dimensions (mm)

Model Number	A	B	C	D
MS2-24	50	39	44	16
MS2-27	54	43	44	16
MS2-30	54	47	44	23
MS2-32	56	49	44	23
MS2-36	56	54	44	23
MS2-41	58	60	44	24
MS2-46	63	67	44	30
MS2-50	72	71	54	32
MS2-55	74	78	54	35
MS2-60	75	84	54	37
MS9-24	58	42	54	17
MS9-27	58	46	54	17
MS9-30	60	50	54	21
MS9-32	60	51	54	21
MS9-36	65	56	54	30
MS9-41	67	63	54	31
MS9-46	74	69	54	36
MS9-50	80	74	54	42
MS9-55	84	80	54	44
MS9-60	87	86	54	44
MS9-65	90	92	54	46
MS9-70	96	99	54	51
MS9-75	98	106	86	45
MS9-80	100	112	86	48
MS9-85	105	118	86	52
MS9-90	105	125	86	52
MS9-95	115	131	86	52
MS9-100	115	137	95	58
MS5-36	78	64	86	23
MS5-41	80	70	86	26
MS5-46	84	76	86	27
MS5-50	87	81	86	29
MS5-55	90	86	86	36
MS5-60	92	93	86	38
MS5-65	95	97	86	40
MS5-70	100	105	86	43
MS5-75	103	110	86	45
MS5-80	110	116	86	50
MS5-85	118	125	86	55
MS5-90	118	130	86	55
MS5-95	118	137	95	55
MS5-100	125	140	95	58
MS5-105	125	150	95	58
MS5-110	125	156	95	58
MS5-115	135	160	95	65
MS5-130	140	185	127	70
MS6-80	140	124	127	51
MS6-85	140	130	127	51
MS6-90	145	136	127	54
MS6-95	145	143	127	54
MS6-100	150	149	127	57
MS6-105	155	155	127	61
MS6-110	160	161	127	64
MS6-115	165	167	127	67
MS6-130	175	188	127	75
MS6-145	185	208	127	83
