Single Acting Nut Splitters

  • Spring assisted return
  • Angled body design for increased clearance on flanges and flat surfaces
  • High quality steel construction
  • Designed to fit on most API and ANSI flanges
Enquire now

Product Overview

The improved NS range of hydraulic nut splitters offers a choice of 5 models suitable for hexagon nut AF sizes from 17 to 75 mm (M10 to M48 bolt sizes). The revolutionary design incorporates a hardened steel linkage that ensures the blade cutting edge is kept parallel to the nut throughout the splitting process which improves operational efficiency and more importantly, blade life.

  • Nut AF sizes from 17 to 75 mm
  • Bolt sizes from M10 to M48
  • Working pressure 700 bar

Technical specifications

Model NumberCapacity tonnesOil Capacity cm3Hexagon AF SizesStud Bolt Thread SizesWeight kg
mminchmetricimperial
NS10416.34617 - 3211/16" - 1 1/4"M10 - M221/2" - 3/4"4.0
NS11024.96232 - 411 1/4" - 1 5/8"M22 - M273/4" - 1"7.4
NS20041.212241 - 501 5/8" - 2"M27 - M331" - 1 1/4"10.6
NS20657.819550 - 602" - 2 3/8"M33 - M391 1/4" - 1 1/2"15.8
NS21590.440660 - 752 3/8" - 2 15/16"M39 - M481 1/2" - 1 7/8"39.3

Note: NS nut splitters are for use on heavy duty nuts, where the nut height is equal to or greater than two-thirds of the blade length of the tool being used.

Dimension

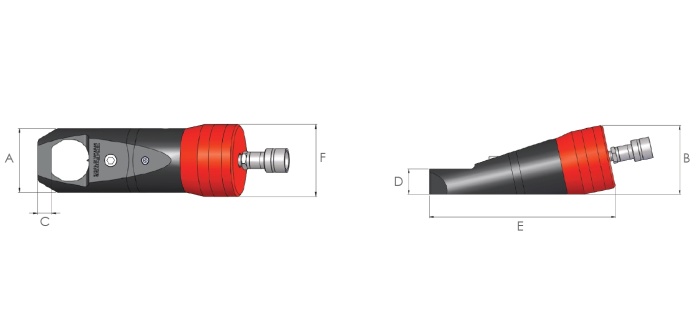

Hi force dim draw nut splitters NS

Dimensions (mm)

Model NumberDimensions in mm
ABCDEF
NS104647712.53021067
NS1107896203726888
NS200961162143315108
NS2061151382452336126
NS2151561752775426162
Note: Please check dimension 'C' to confirm the tool will fit in the space between the edge of the nut and the neck of the flange.

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire

Related products

HMNS Range

Hi force nut splitters hmns

Self-Contained Nut Splitters

View

DNS Range

Hi force nut splitters dns

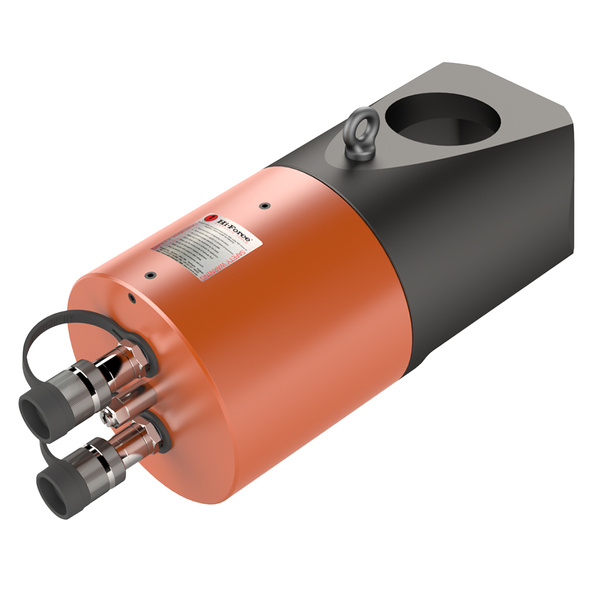

Double Acting Nut Splitters
