Product Overview

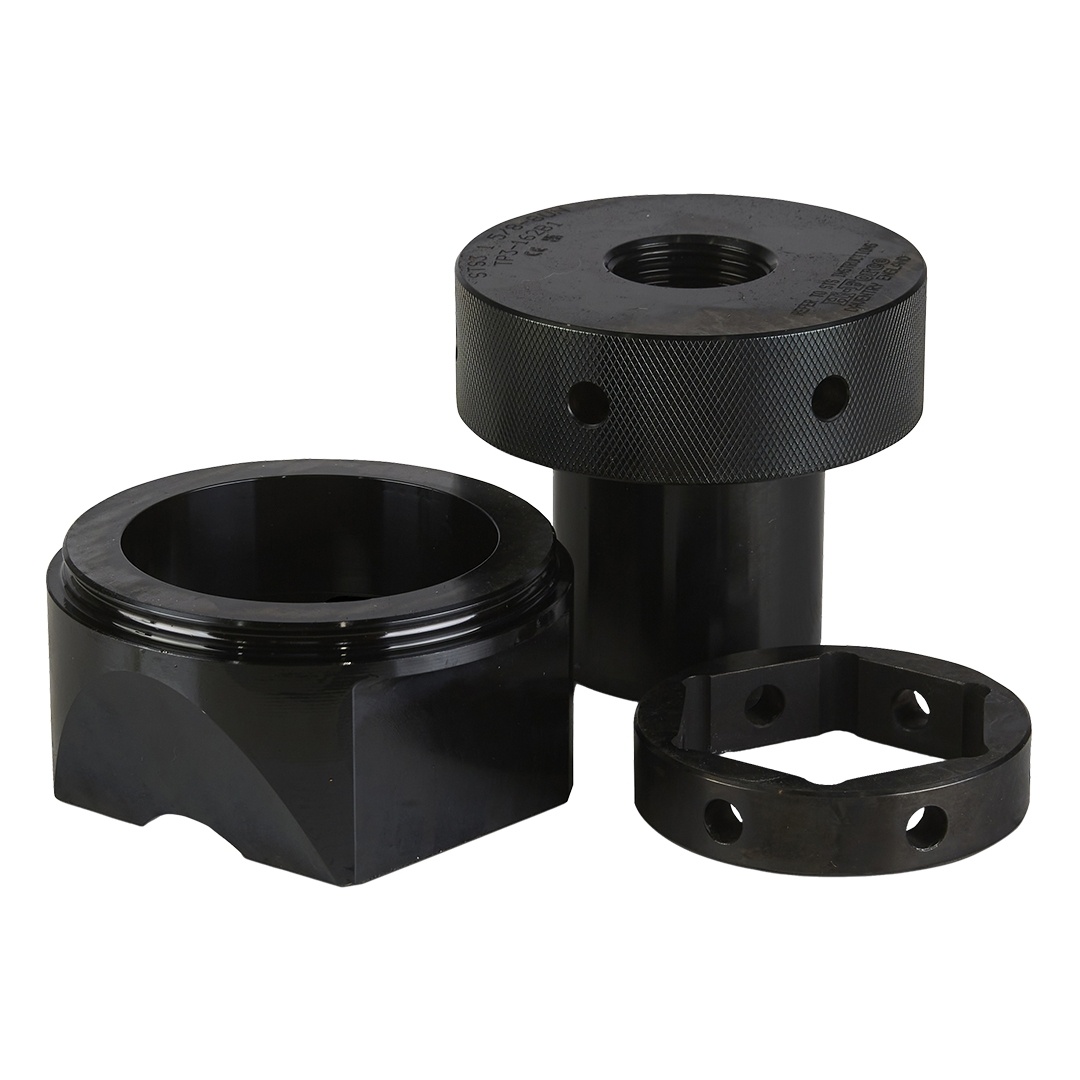

The modular design of Hi-Force SBT series spring return hydraulic bolt tensioners enables the user to adapt an existing SBT tensioner assembly to another thread size, within the tensioner range, by purchasing individual components or a simple conversion kit. By changing the required components, Hi-Force SBT bolt tensioners offer the user even greater versatility at an economical cost.
- Use with SBT Imperial Spring Return Tensioners
- Modular design
- Offers greater versatility
Product resources
Technical specifications
| Complete Tensioner | Individual components | D & E | |||||
|---|---|---|---|---|---|---|---|
| Model Number | Bolt Thread | A Load cell | B Tommy bar | C Bridge | D Threaded puller | E Rotating socket | Complete conversion kit |
| For tensioner range SBT2: | |||||||
| SBT2-125B1 | 1 1/4" | SBT2-LC | TTB08 | STS2-B1 | TPS2-125B1 | RS2-51B1 | CKS2-125B1 |
| SBT2-137B1 | 1 3/8" | SBT2-LC | TTB08 | STS2-B1 | TPS2-137B1 | RS2-56B1 | CKS2-137B1 |
| SBT2-150B1 | 1 1/2" | SBT2-LC | TTB08 | STS2-B1 | TPS2-150B1 | RS2-60B1 | CKS2-150B1 |
| For tensioner range SBT3: | |||||||
| SBT3-162B1 | 1 5/8" | SBT3-LC | TTB10 | STS3-B1 | TPS3-162B1 | RS3-65B1 | CKS3-162B1 |
| SBT3-175B1 | 1 3/4" | SBT3-LC | TTB10 | STS3-B1 | TPS3-175B1 | RS3-70B1 | CKS3-175B1 |
| SBT3-187B1 | 1 7/8" | SBT3-LC | TTB10 | STS3-B1 | TPS3-187B1 | RS3-75B1 | CKS3-187B1 |
| SBT3-175B2 | 1 3/4" | SBT3-LC | TTB10 | STS3-B2 | TPS3-175B2 | RS3-70B2 | CKS3-175B2 |
| SBT3-187B2 | 1 7/8" | SBT3-LC | TTB10 | STS3-B2 | TPS3-187B2 | RS3-75B2 | CKS3-187B2 |
| SBT3-200B2 | 2" | SBT3-LC | TTB10 | STS3-B2 | TPS3-200B2 | RS3-80B2 | CKS3-200B2 |
| For tensioner range SBT4: | |||||||
| SBT4-187B1 | 1 7/8" | SBT4-LC | TTB10 | STS4-B1 | TPS4-187B1 | RS4-75B1 | CKS4-187B1 |
| SBT4-200B1 | 2" | SBT4-LC | TTB10 | STS4-B1 | TPS4-200B1 | RS4-80B1 | CKS4-200B1 |
| SBT4-200B2 | 2" | SBT4-LC | TTB10 | STS4-B2 | TPS4-200B2 | RS4-80B2 | CKS4-200B2 |
| SBT4-225B2 | 2 1/4" | SBT4-LC | TTB10 | STS4-B2 | TPS4-225B2 | RS4-90B2 | CKS4-225B2 |
| SBT4-250B2 | 2 1/2" | SBT4-LC | TTB10 | STS4-B2 | TPS4-250B2 | RS4-98B2 | CKS4-250B2 |
| For tensioner range SBT5: | |||||||
| SBT5-250B1 | 2 1/2" | SBT5-LC | TTB14 | STS5-B1 | TPS5-250B1 | RS5-100B1 | CKS5-250B1 |
| SBT5-300B1 | 2 3/4" | SBT5-LC | TTB14 | STS5-B1 | TPS5-275B1 | RS5-108B1 | CKS5-275B1 |
| SBT5-275B1 | 3" | SBT5-LC | TTB14 | STS5-B1 | TPS5-300B1 | RS5-118B1 | CKS5-300B1 |
| For tensioner range SBT6: | |||||||
| SBT6-300B1 | 3" | SBT6-LC | TTB14 | STS6-B1 | TPS6-300B1 | RS6-118B1 | CKS6-300B1 |
| SBT6-325B1 | 3 1/4" | SBT6-LC | TTB14 | STS6-B1 | TPS6-325B1 | RS6-127B1 | CKS6-325B1 |
| SBT6-350B1 | 3 1/2" | SBT6-LC | TTB14 | STS6-B1 | TPS6-350B1 | RS6-137B1 | CKS6-350B1 |
| SBT6-375B3 | 3 3/4" | SBT6-LC | TTB14 | STS6-B3 | TPS6-375B3 | RS6-146B3 | CKS6-375B3 |
| SBT6-400B3 | 4" | SBT6-LC | TTB14 | STS6-B3 | TPS6-400B3 | RS6-156B3 | CKS6-400B3 |
Note: Remember to check bridge compatibility for SBT3, SBT4 and SBT6 models when ordering components.
