Air Impact Wrenches | Ingersoll Rand | Industrial Tools | HES
Ingersoll Rand product

Air Impact Wrenches

  • Covers any application from light production to heavy-duty maintenance and repair
  • Pistol, straight or T-handle configuration
  • Excellent power-to-weight ratio
  • Robust metal housing to protect against breakage and corrosion
Enquire now

Product Overview

Ingersoll Rand offers a wide range of air impact wrenches that delivers the flexibility required even in the most unique and demanding applications. The impact wrenches are designed with durability in mind, and the innovative ergonomic designs and excellence in manufacturing all add up to the longest-lasting, hardest-hitting impact wrench offering.

  • Square drive sizes from 1/4" to 2 1/2"
  • Max. torque up to 33900 Nm
  • Free speed up to 15000 RPM

Product resources

Technical specifications

SeriesMax. torque NmMax. torque lbf.ftSquare drive sizeConfigurationMax. free speed RPMFree speed sound level dB(A) (pressure/power)Average air consumption cfmWeight kg
2955610044991 1/2"D-Handle3300114.3-16

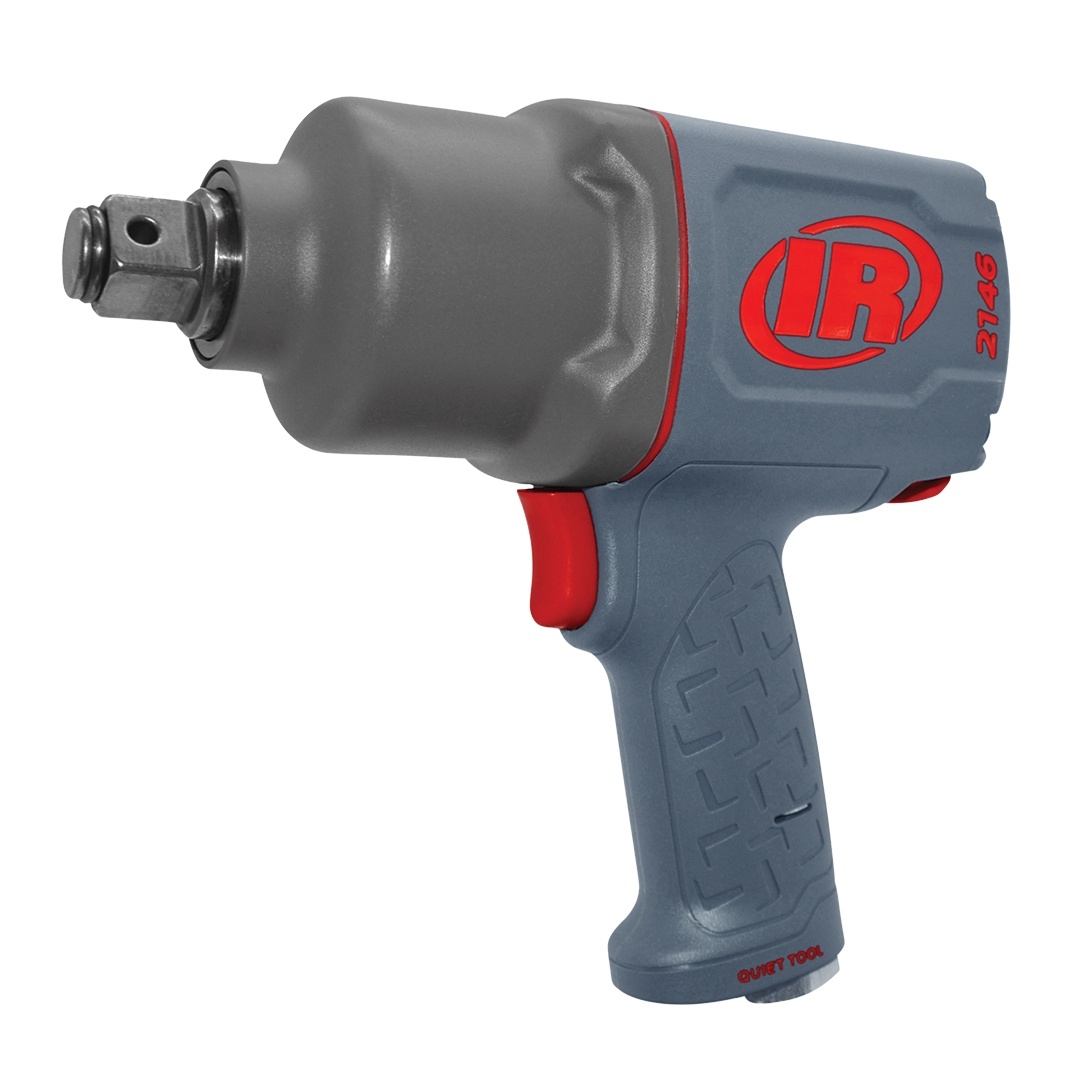

2146MAX270019913/4" & 1"Pistol5500-144.6

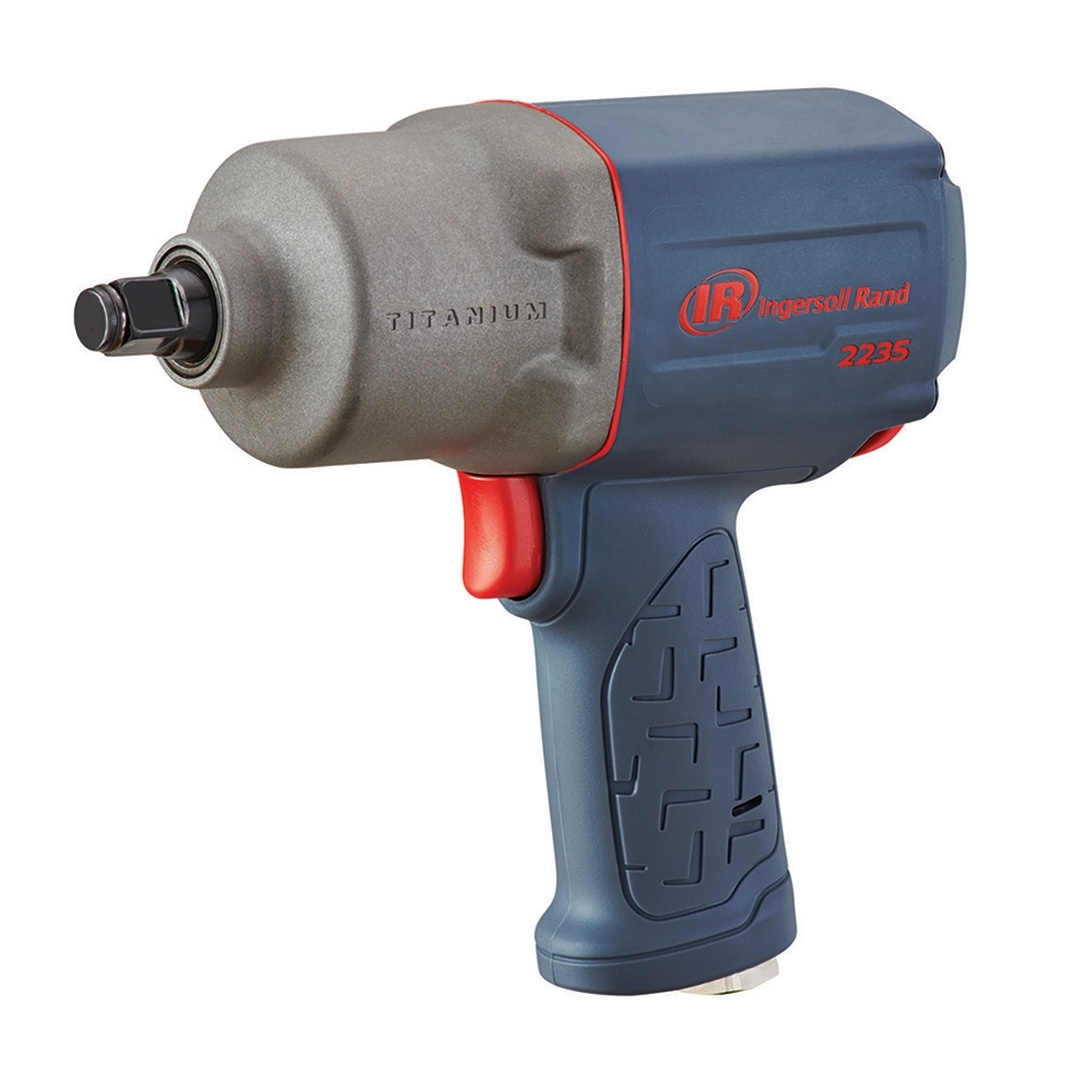

2235QTIMAX176013001/2"Pistol8500--2.1
285B200014751"D-Handle5250103.4/114.41112.61
2145 & 2155QIMAX183013503/4" & 1"Pistol700091.1323.4
3900677950001 & 1 1/2"D-Handle6000103.4/114.49515.7
261 & 271162712003/4" & 1"Pistol5500100.3/111.19.512.4
231GXP6104501/2"Pistol800099/1104.22.63
2850MAX285021001"D-Handle5500--9.8

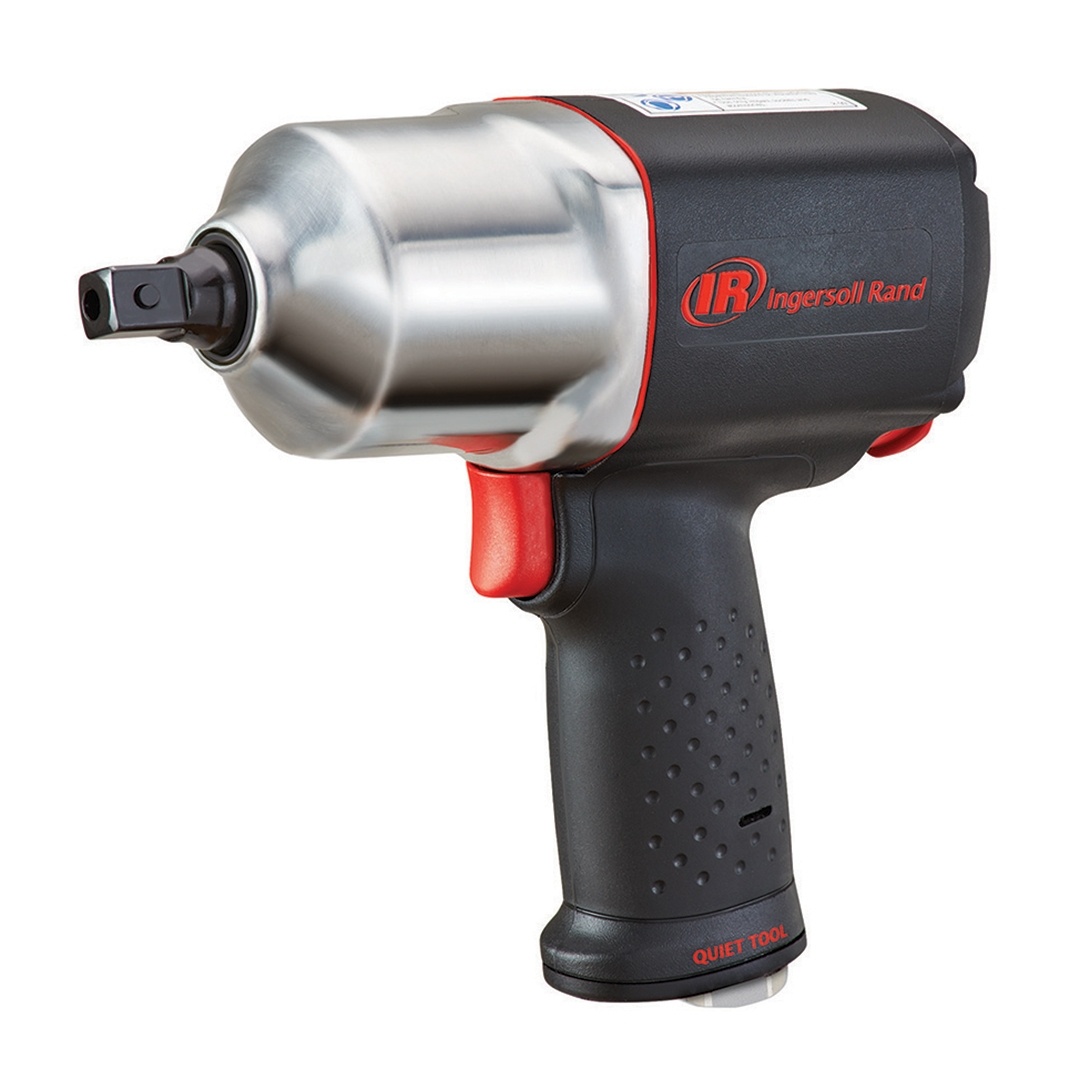

2135QXPA10577801/2"Pistol1100086/9751.9

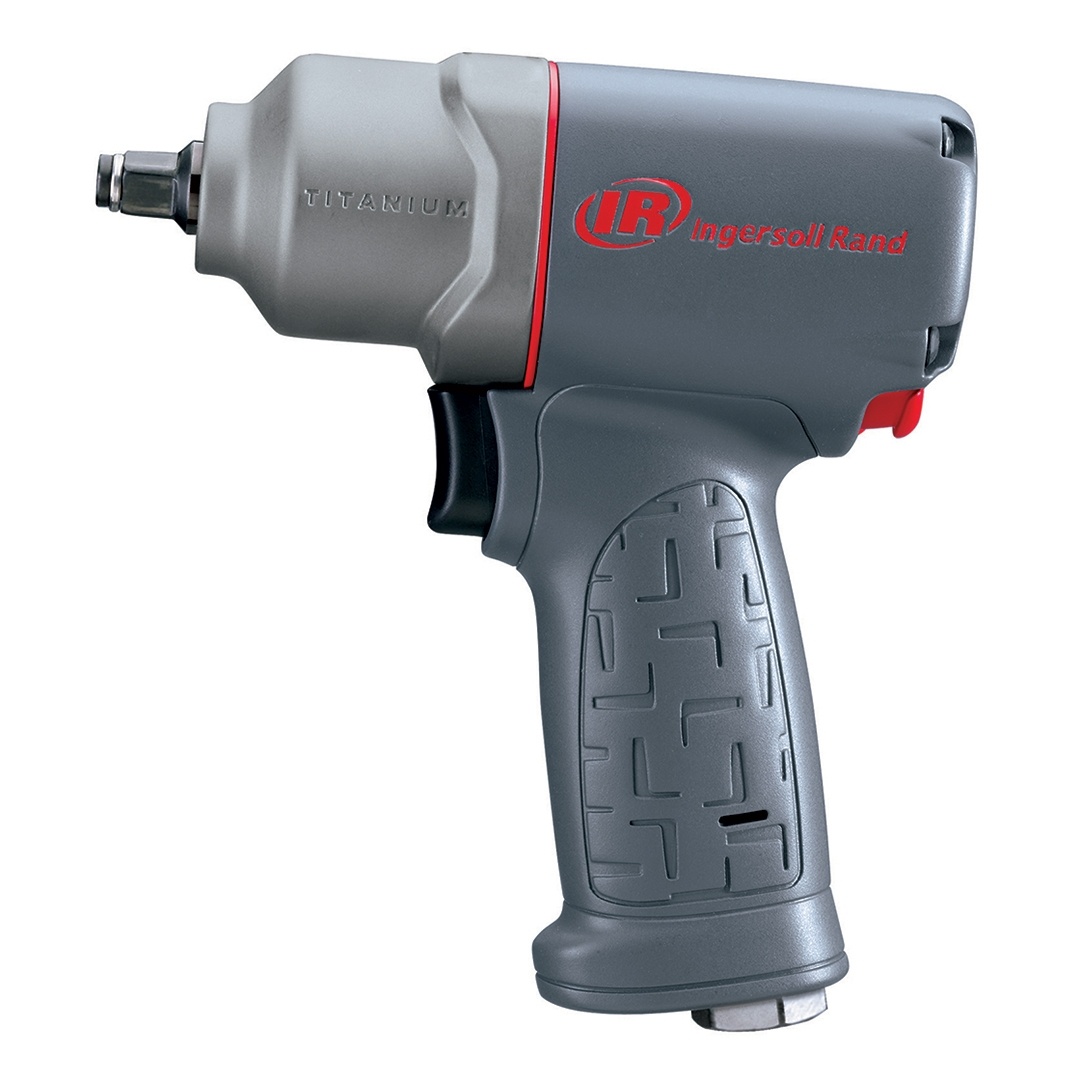

2115QTIMAX4503323/8" & 1/2"Pistol1500089.7/100.71132.2
36QMAX8706403/8" & 1/2"Pistol800087.6/98.6242.4
2925230417003/4" & 1"D-Handle & Pistol650099.6/110.6606.89
2175MAX271520001"Pistol4500103.6/114.614.29.1
295A200014751"Pistol5250101.1/112.11111.43
2161 & 2171XP169512503/4" & 1"Pistol600098/111465.4
2015 & 2025MAX2441803/8" & 1/2"Right Angle, Low Profile900094.1/105.13.51.54
2135QTL-210587801/2"Pistol1100087.2/98.251.9
259142410503/4"Pistol600096.5/107.584
216B2712003/8"Straight850094.8/105.831.27
2122051503/8"Pistol1300096/1072.51.3
2130XP7455501/2"Pistol950096.9/109.64.41.9
280216916001"Pistol6000109.1/122.2109.98
598027120200001 1/2" & 2 1/2"T-Handle830-13839.9
2235QTIMAX-G12209001/2"Pistol800091.9/102.962.1
2934203415001"D-Handle6600--16.2
2366104501/2"Pistol740090.3/101.34.32.4
ATEX 3900677950001" & 1 1/2"D-Handle-99/1109515.7
588A167800500002 1/2"T-Handle355-15597.5
1712B2189813501"D-Handle6000107.7/118.7-8.28
2115QXPA4073003/8"Pistol1500089.7/100.741.1
2906P16785001/2"Pistol5000-232.72
MINI75551/4" & 3/8"Pistol1450083.5/94.513.50.73
29207465503/4"D-Handle500088.8/99.8365.98
ATEX 2925216916003/4"Pistol-95.9/106.9605.44
ATEX 21308136001/2"Pistol--4.82
2112051503/8"Straight1300094.6/105.62.51.09
2902P12441803/8"Pistol1000076.7/87.7151.25
LA1581361003/8"Pistol10000--1.25
