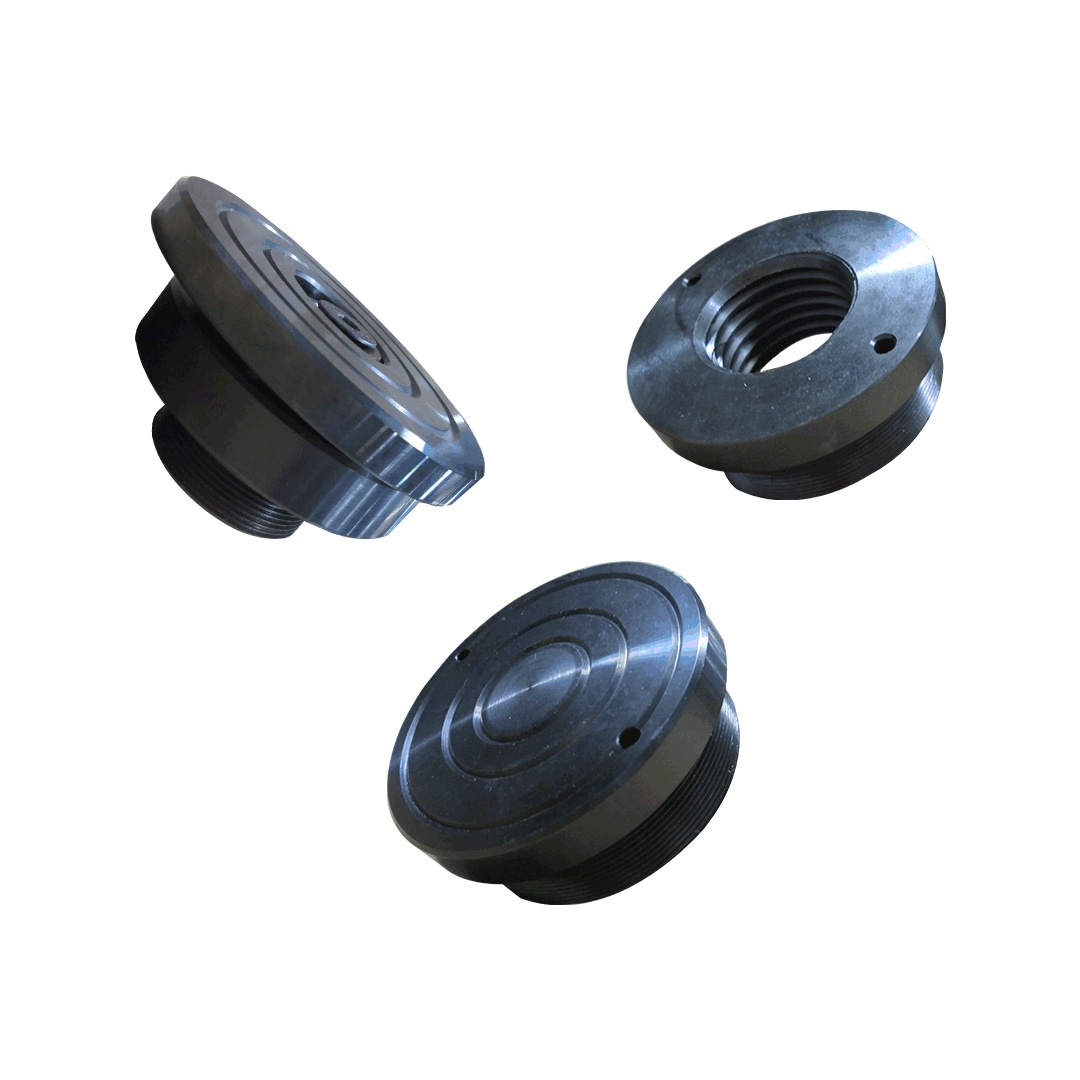

Cylinder Saddles and Piston Rod

Cylinder saddles & piston rod thread specifications

Enquire now

Standard Saddle

Cylinder RangeModel NumberFigure
HAS Cylinder Range
HAS - 30THA302
HAS - 50THA502
HAS - 100THA1002
HDA Cylinder Range
HDA - 25THD253
HDA - 50THD503
HDA - 100THD1003
HDA - 150THD2003
HDA - 200THD2003
HDA - 300THD300T7
HDA - 400THD400T7
HDA - 500THD500T7
HDA - 800TTS8008
HDA - 1000TTS10008
HFA Cylinder Range
HFA - 30THAT307
HFA - 50THAT507
HFA - 100THAT1007
HFG Cylinder Range
HFG - 50TTS508
HFG - 100TTS1008
HFG - 150TTS1508
HFG - 200TTS2008
HFG - 250TTS2008
HFG - 300TTS3008
HFG - 400TTS4008
HFG - 500TTS5008
HFG - 800TTS8008
HFG - 1000TTS10008
HFL Cylinder Range
HFL - 50TTS508
HFL - 100TTS1008
HFL - 150TTS1508
HFL - 250TTS2508
HFL - 400TTS4008
HFL - 500TTS5008
HGG Cylinder Range
HGG - 150TTS1508
HGG - 200TTS2018
HGG - 300TTS3018
HHA Cylinder Range
HHA - 18THA184
HHA - 37THA374
HHA - 50THA504
HHR Cylinder Range
HHR - 30THA3024
HHR - 60THA6034
HHR - 100THA10034
HHR - 150THA15084
HHR - 250THA25084
HHS Cylinder Range
HHS - 10THA1024
HHS - 20THA2024
HHS - 30THA3024
HHS - 60THA6034
HHS - 100THA10034
HRA Cylinder Range
HRA - 30THA302
HRA - 50THA502
HRA - 100THA1002
HSG Cylinder Range
HSG - 150TTS1508
HSG - 200TTS2018
HSG - 300TTS3028
HSS Cylinder Range
HSS - 5THA51
HSS - 10THA101
HSS - 15THA151
HSS - 25THA251
HSS - 30THA251
HSS - 50THA502
HSS - 75THA752
HSS - 100THA1002

Optional Saddle

Cylinder RangeModel numberFigure
HAS Cylinder Range
HAS - 30THAT307
HAS - 50THAT507
HAS - 100THAT1007
HDA Cylinder Range
HDA - 25THD25T9
HDA - 50THD50T9
HDA - 100THD100T9
HDA - 150THD200T9
HDA - 200THD200T9
HDA - 300THD3002
HDA - 400THD4002
HDA - 500THD5002
HDA - 800T--
HDA - 1000T--
HFA Cylinder Range
HFA - 30THA302
HFA - 50THA502
HFA - 100THA1002
HFG Cylinder Range
HFG - 50T--
HFG - 100T--
HFG - 150T--
HFG - 200T--
HFG - 250T--
HFG - 300T--
HFG - 400T--
HFG - 500T--
HFG - 800T--
HFG - 1000T--
HFL Cylinder Range
HFL - 50T--
HFL - 100T--
HFL - 150T--
HFL - 250T--
HFL - 400T--
HFL - 500T--
HGG Cylinder Range
HGG - 150T--
HGG - 200T--
HGG - 300T--
HHA Cylinder Range
HHA - 18THA18T5
HHA - 37THA37T5
HHA - 50THA50T5
HHR Cylinder Range
HHR - 30THA302T, HA302G5,6
HHR - 60THA603T, HA603G5,6
HHR - 100THA1003T, HA1003G5,6
HHR - 150THA1508G6
HHR - 250THA2508G6
HHS Cylinder Range
HHS - 10THA102T, HA102G5,6
HHS - 20THA202T, HA202G5,6
HHS - 30THA302T, HA302G5,6
HHS - 60THA603T, HA603G5,6
HHS - 100THA1003T, HA1003G5,6
HRA Cylinder Range
HRA - 30THAT307
HRA - 50THAT507
HRA - 100THAT1007
HSG Cylinder Range
HSG - 150T--
HSG - 200T--
HSG - 300T--
HSS Cylinder Range
HSS - 5T--
HSS - 10THAT109
HSS - 15THAT109
HSS - 25THAT259
HSS - 30THAT259
HSS - 50THAT507
HSS - 75THAT757
HSS - 100THAT1007

Internal Saddle Thread Specifications

Saddle ModelInternal Saddle Thread Specification
HA18TM24
HA37TM36
HA50TM48
HA102T3/4" - 16 UNF
HA202T1" x 8 UNC
HA302T1 1/4" x 7 UNC
HA603T1 5/8" x 5 1/2" UNS
HA1003T2 1/2" x 8 UN

Dimension

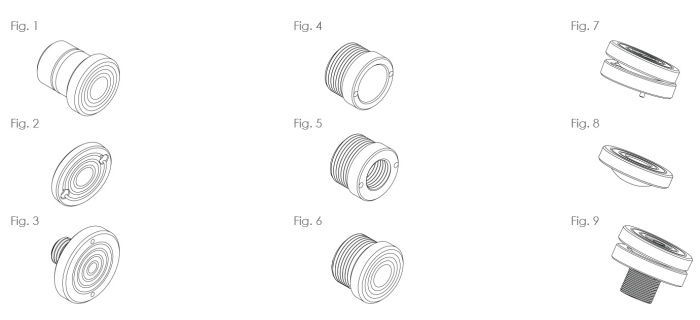

Hi force dim draw cylinders Saddles

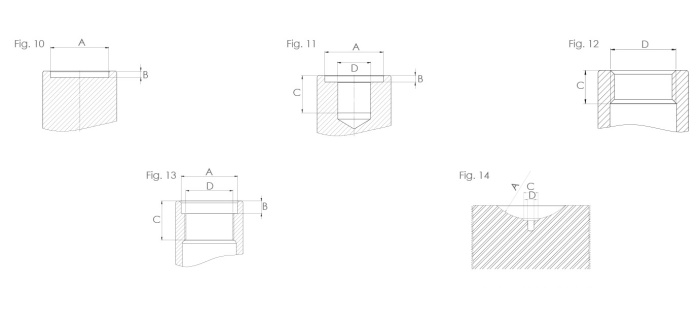

Hi force dim draw cylinders Piston

Piston Rod Thread Dimensions (mm)

ABCDFigure
HAS Cylinder Range
5010--10
7011--10
10012--10
HDA Cylinder Range
459351”-12UNF11
7011451”-12UNF11
10012551¾”-12UNF11
10012523”-16UN11
11012702½”-12UN11
15025---
18025---
18025---
180-51M24X314
180-51M24X314
HFA Cylinder Range
5010--10
7011--10
10012--10
HFG Cylinder Range
31-15M8x1.2514
60-18M12x1.7514
60-18M12x1.7514
60-18M12x1.7514
70-16M12x1.7514
70-16M10x1.514
125-17M12x1.7514
125-17M12x1.7514
175-50M24X314
175-51M24X314
HFL Cylinder Range
31-15M8x1.2514
60-18M12x1.7514
120-18M12x1.7514
140-40M10x1.514
180-40M12x1.7514
200-40M12x1.7514
HGG Cylinder Range
18-60M12x1.7514
18-124.5M12x1.7514
21-95M12x1.7514
HHA Cylinder Range
--28M35x1.512
--35M50x1.512
--37M60x1.512
HHR Cylinder Range
521032M48x1.513
801032M70x1.513
1141238M105x213
17013.550M150x313
24213.574M220x313
HHS Cylinder Range
32721M28x1.513
431031M39x1.513
521031M48x1.513
801031M70x1.513
1141238M105x213
HRA Cylinder Range
5010--10
7011--10
10012--10
HSG Cylinder Range
18-60M12x1.7514
18-124.5M12x1.7514
28-160M22x2.514
HSS Cylinder Range
--20¾”-16UNF12
--141”-8UNC12
--141”-8UNC12
--301½”-16UN12
--301½”-16UN12
7011--10
8012--10
10012--10
