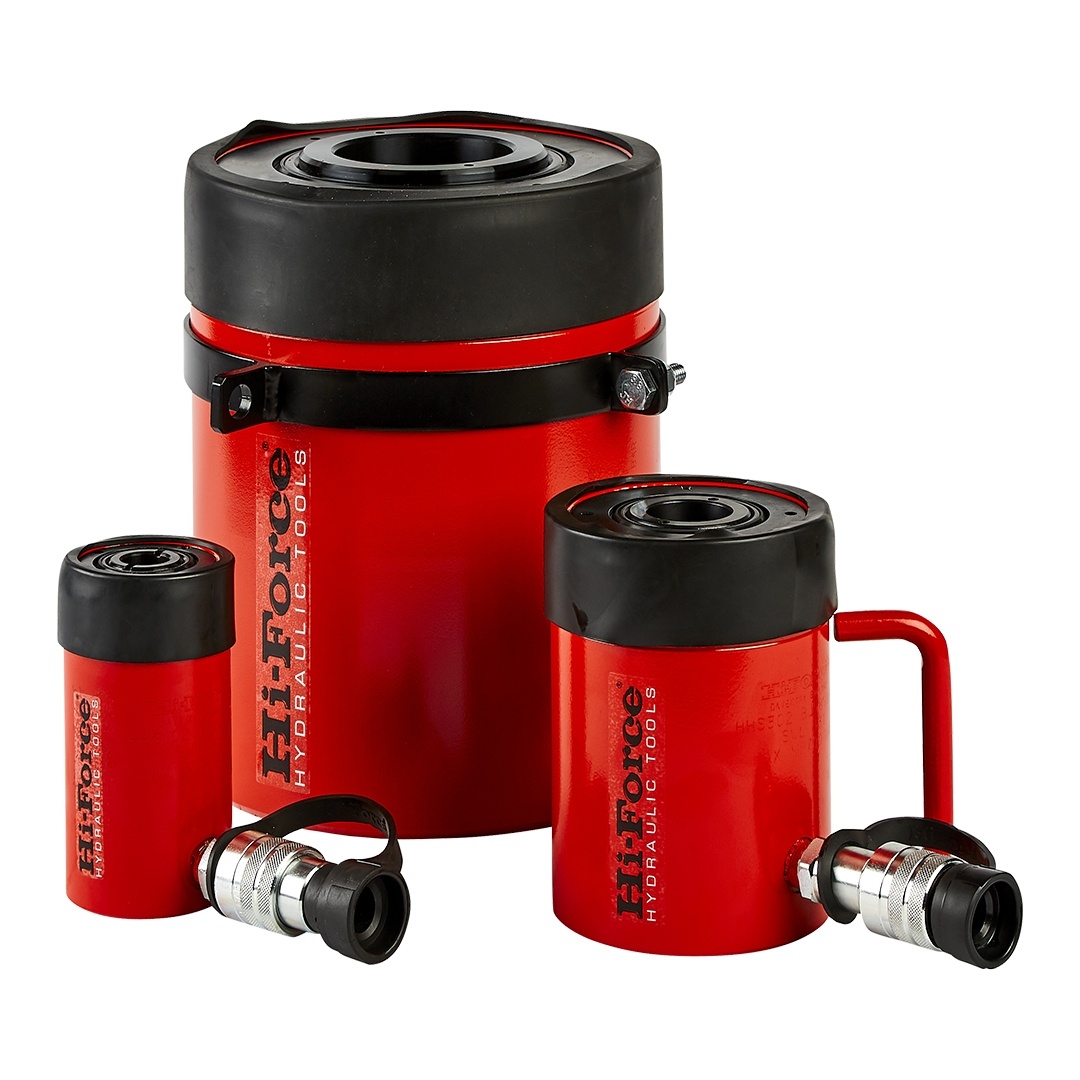

HHS Range
Single acting hollow piston cylinders
- Spring assisted return
- Nitrocarburised piston rod, low friction bearing surfaces
- Anti-extrusion seals
- Optional piston rod saddles
Product Overview
The HHS single acting hollow piston cylinder range is extremely versatile for use in tooling, maintenance and tensioning applications. Specifically designed with a hollow piston to enable a rod or cable to be passed through the entire cylinder length for applications where a pulling force is required, the HHS range is used extensively in post-tensioning and pre-stressing applications as well as testing of various bonded or mechanical anchoring systems. HHS cylinders can also be used for general lifting applications, when fitted with readily available interchangeable hardened steel piston rod saddles.
- Capacities from 11 to 102 tonnes
- Stroke lengths from 25 to 152 mm
- Working pressure 700 bar
Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Oil cap. cm3 | Cyl. eff. area cm2 | Weight kg |
|---|---|---|---|---|---|
| HHS101 | 11 | 25 | 39 | 15.8 | 2.8 |
| HHS102 | 11 | 50 | 79 | 15.8 | 3.0 |
| HHS106 | 11 | 152 | 240 | 15.8 | 10.2 |
| HHS202 | 23 | 50 | 167 | 33.3 | 7.0 |
| HHS206 | 23 | 150 | 500 | 33.3 | 13.8 |

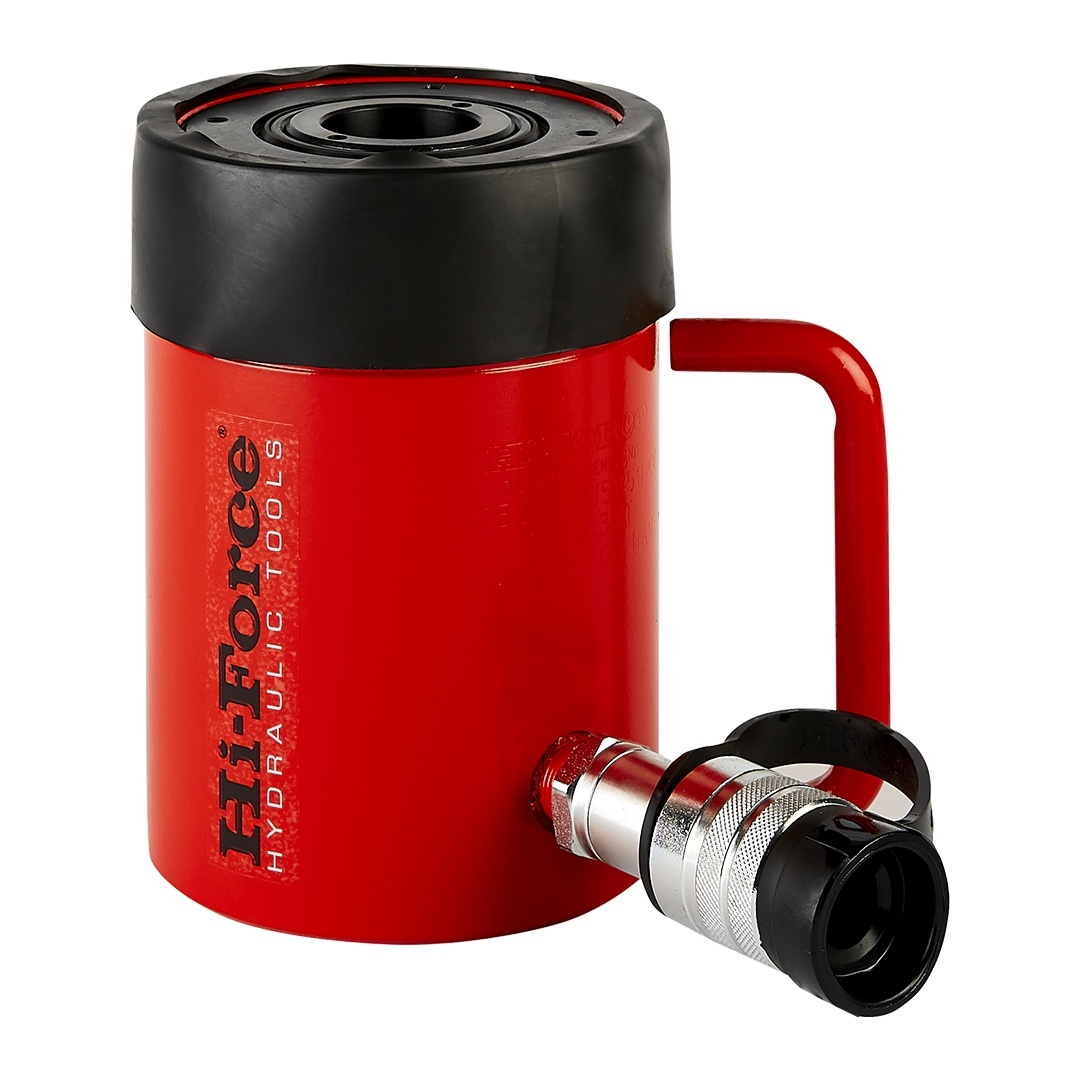

| HHS302 | 33 | 50 | 233 | 46.7 | 10.6 |
| HHS306 | 33 | 152 | 710 | 46.7 | 19.2 |
| HHS603 | 61 | 76 | 651 | 85.7 | 28.0 |
| HHS606 | 61 | 150 | 1285 | 85.7 | 40.6 |
| HHS1003 | 102 | 76 | 1088 | 143.1 | 64.0 |
| HHS1006 | 102 | 150 | 2147 | 143.1 | 75.0 |
Dimension
Dimensions (mm)
| Model Number | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| HHS101 | 110 | 70 | 38 | 20 | 2 3/4"-16un | 30 | M8 | 51 | 19 |
| HHS102 | 140 | 70 | 38 | 20 | 2 3/4"-16un | 30 | M8 | 51 | 19 |
| HHS106 | 297 | 70 | 38 | 20 | 2 3/4"-16un | 30 | M8 | 51 | 19 |
| HHS202 | 160 | 100 | 51 | 30 | 3 7/8"-12un | 40 | M8 | 82.5 | 31 |
| HHS206 | 306 | 100 | 51 | 30 | 3 7/8"-12un | 40 | M8 | 82.5 | 31 |
| HHS302 | 165 | 115 | 60 | 35 | 4 1/2"-12un | 40 | M8 | 92 | 31 |
| HHS306 | 320 | 115 | 60 | 35 | 4 1/2"-12un | 40 | M8 | 92 | 31 |
| HHS603 | 226 | 160 | 92 | 55 | 6 1/4"-12un | 59 | M12 | 130 | 31 |
| HHS606 | 315 | 160 | 92 | 55 | 6 1/4"-12un | 59 | M12 | 130 | 31 |
| HHS1003 | 276 | 213 | 127 | 81 | 8 3/8"-12un | 60 | M16 | 178 | 45 |
| HHS1006 | 350 | 213 | 127 | 81 | 8 3/8"-12un | 60 | M16 | 178 | 45 |
