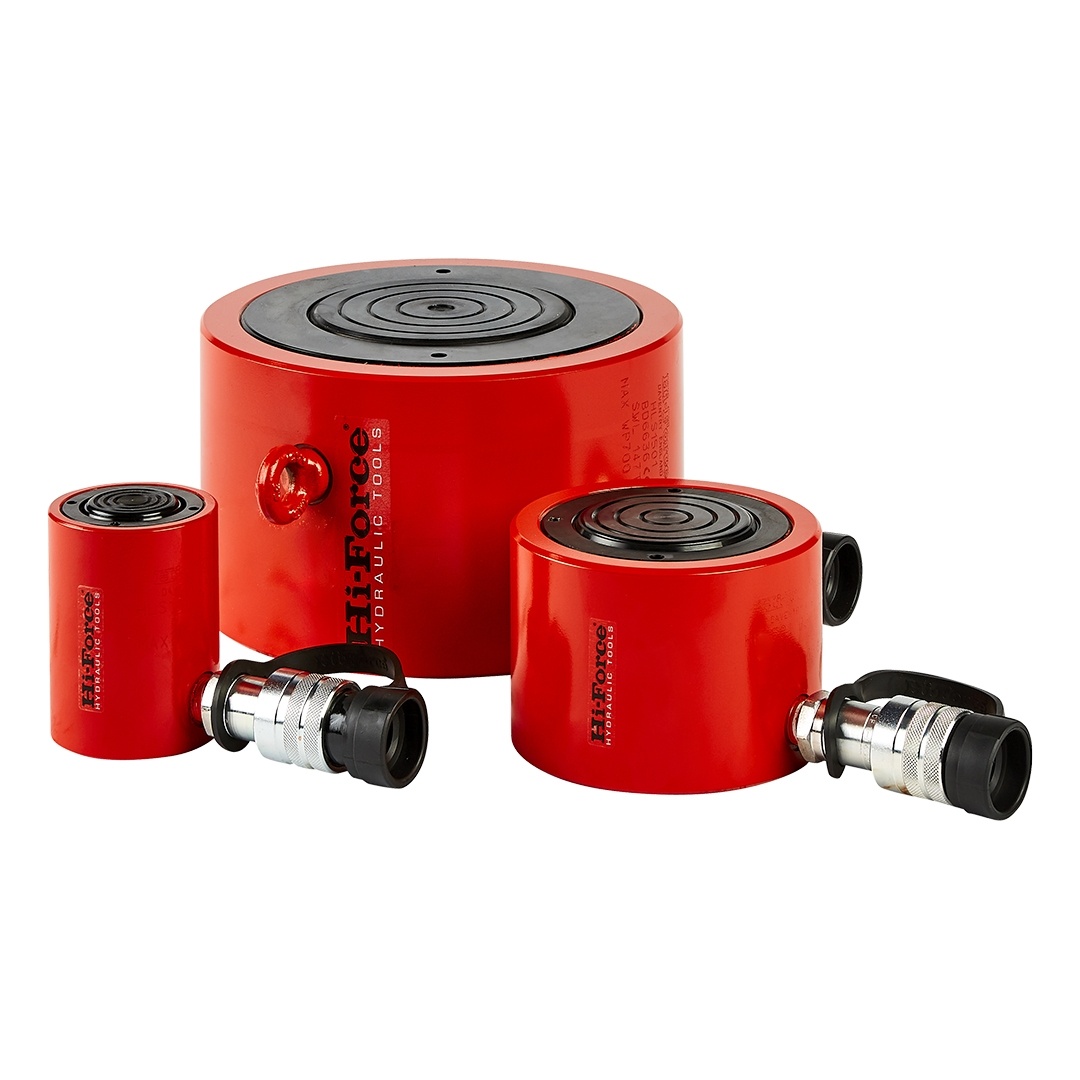

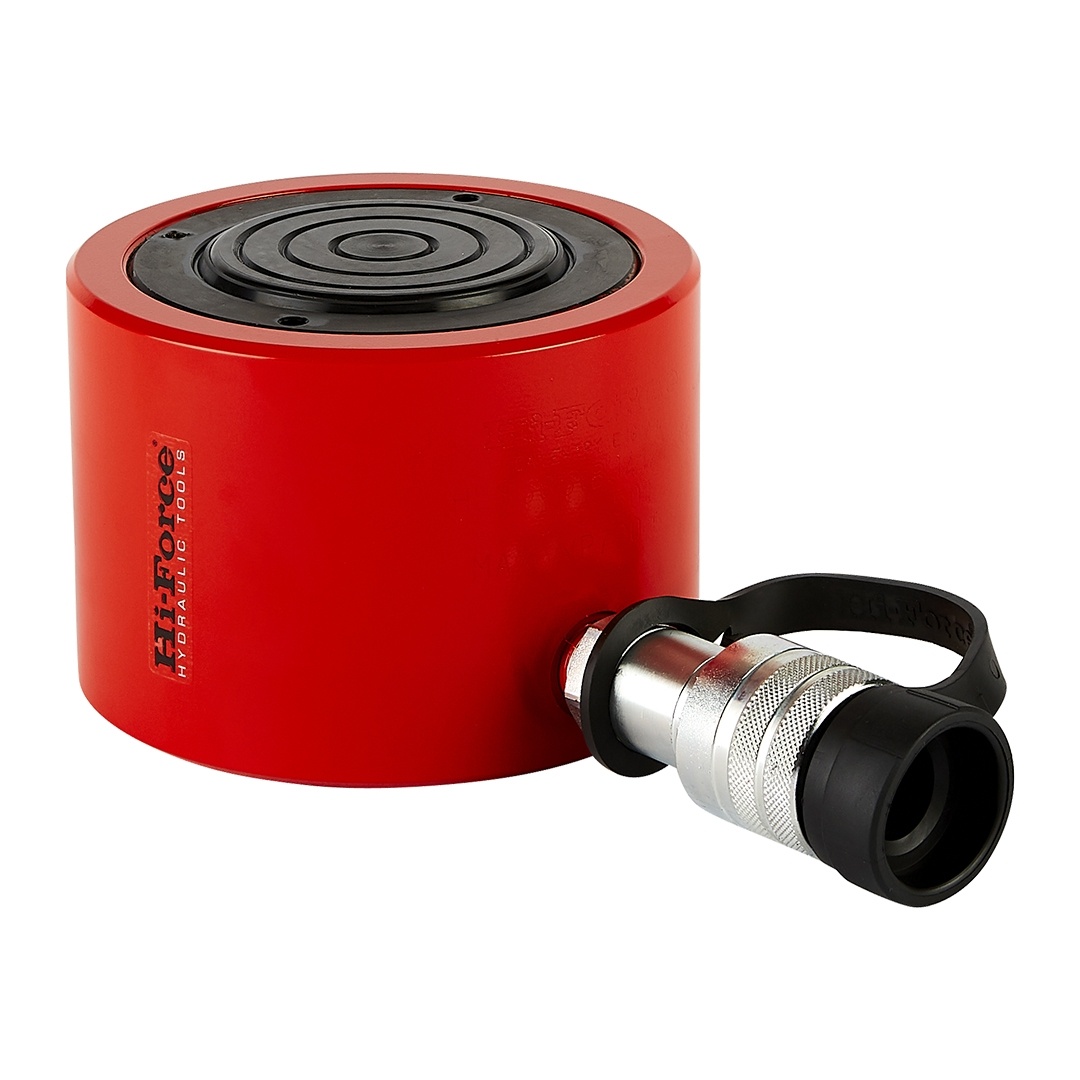

HLS Range

Single acting multi-purpose cylinders

  • Single acting, spring assisted return
  • Nitrocarburised piston rod, low friction bearing surfaces
  • Anti-extrusion seals
  • Customised and special design cylinders are available on request
Enquire now

Product Overview

The HLS low height cylinder range is the most widely used Hi-Force cylinder design in the world today. All models have spring assisted return pistons and combine low closed height with optimum stroke lengths. Offering a compact, powerful force for a wide variety of applications in many industries including power generation, ship building & repair, construction, railways, mining, steel works, oil & gas and many others. The HLS range offers a compact, portable option in an inexpensive package.

  • Capacities from 10 to 147 tonnes
  • Stroke lengths from 25 to 60 mm
  • Working pressure 700 bar

Product resources

Technical specifications

Model NumberCapacity tonnesStroke mmOil cap. cm3Cyl. eff. area cm2Weight kg
HLS10110405814.42.4
HLS201204412628.64.8
HLS301322511445.65.0
HLS302326027445.67.0
HLS501502517871.38.4
HLS502506042871.310.4
HLS100110925384153.419.8
HLS100210960921153.424.0
HLS150114725516206.237.0
HLS1502147501031206.242.0

Dimension

Hi force dim draw cylinders HLS

Dimensions (mm)

Model NumberABCDEF
HLS101957038M84019
HLS2011029051M86019
HLS3018310260M88019
HLS30211910260M88019
HLS5019112770M88020
HLS50212612770M88020
HLS1001108178114M1214030
HLS1002143178114M1214030
HLS1501130216114M1216541
HLS1502155216114M1216541

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire

Related products

HVL Range

Hi force cylinders hvl range

Single acting very low height pancake cylinders

View

HPS Range

Hi force cylinders hps range

Single acting low height pad cylinders

View

HSS Range

Hi force cylinders hss range

Single acting multi-purpose cylinders

View

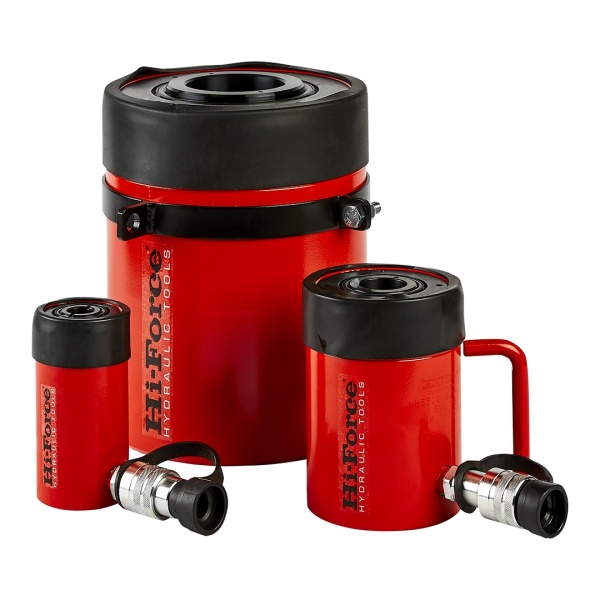

HHS Range
