Hi-Force product

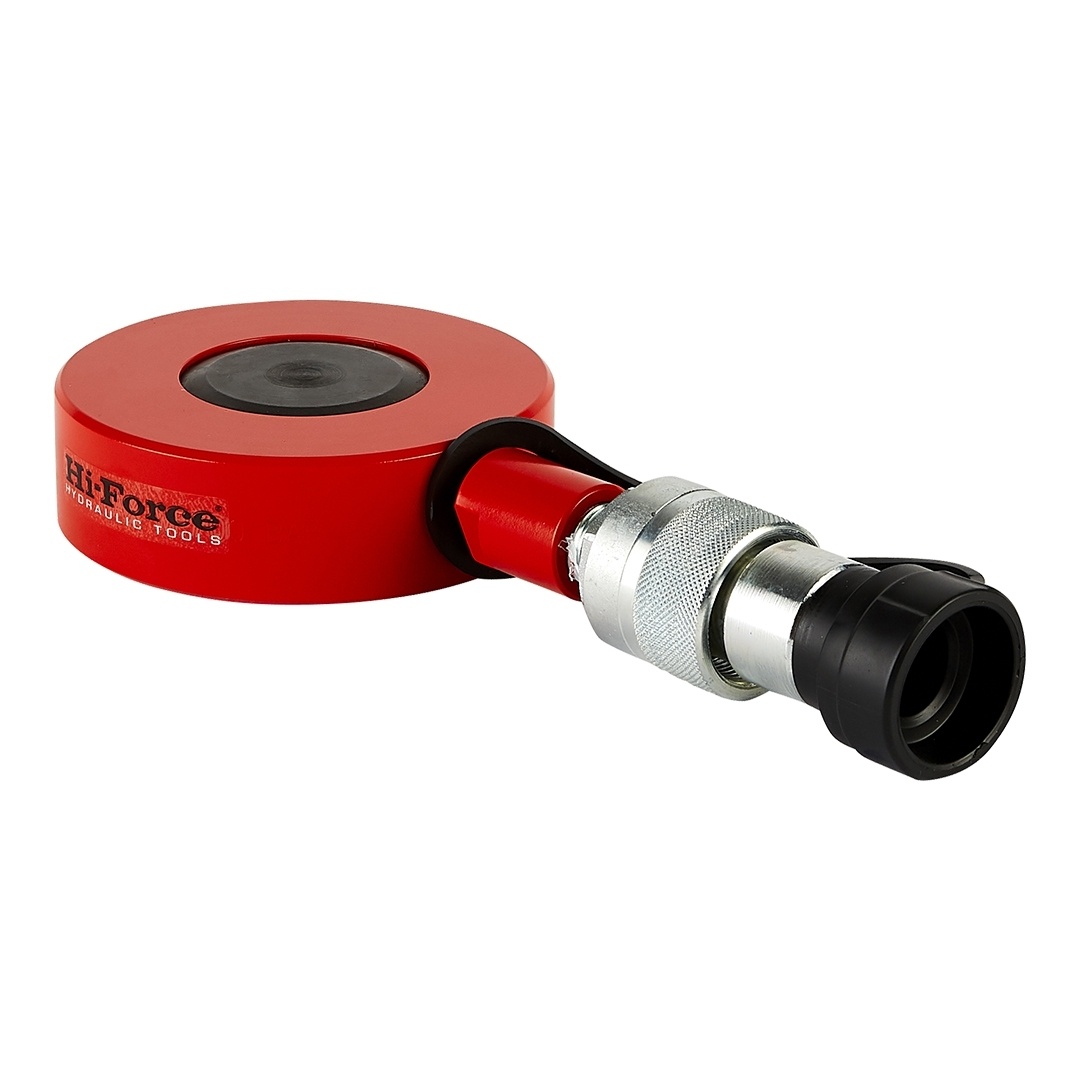

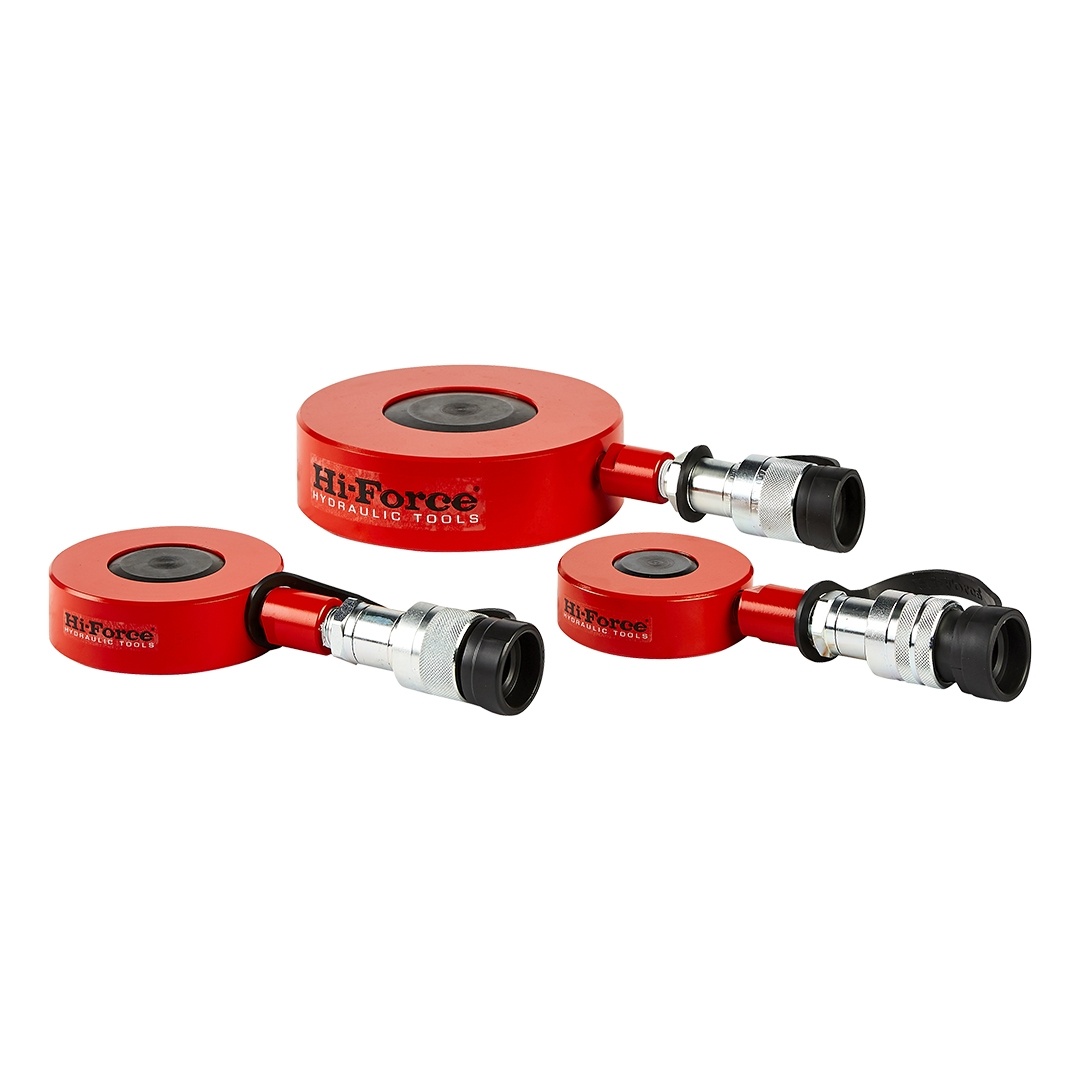

HVL Range

Single acting very low height pancake cylinders

  • Single acting, load return
  • Very low height design for access in narrow spaces
  • Nitrocarburised piston rod for corrosion resistance
  • Low friction bearing surfaces
  • Anti-extrusion seals for improved performance
  • Customised cylinders are available on request
Enquire now

Product Overview

The HVL pancake cylinders from Hi-Force combine a very low closed height with a 6 mm stroke, providing a precise adjusting and lifting force in very confined work areas. All models are single acting with load return design and ideally suited for applications requiring alignment of machinery, turbines, heavy structures etc.

  • Capacities from 10 to 104 tonnes
  • Stroke length 6 mm
  • Working pressure 700 bar

Technical specifications

Model numberCapacity(tonnes)Stroke(mm)Oil capacity(cm3)Cylinder Eff. area(cm2)Weight(kg)
HVL10106914.41.6
HVL202061728.62.6
HVL303262745.63.0
HVL505064371.37.2
HVL100104688146.515.6

Dimension

Dimensions hvl range

Dimensions (mm)

Model numberABCDE
HVL1028873811116
HVL20321045211119
HVL30341206011119.5
HVL50451587511129
HVL100652001007637
