Ingersoll Rand product
DC Electric Fastening Systems

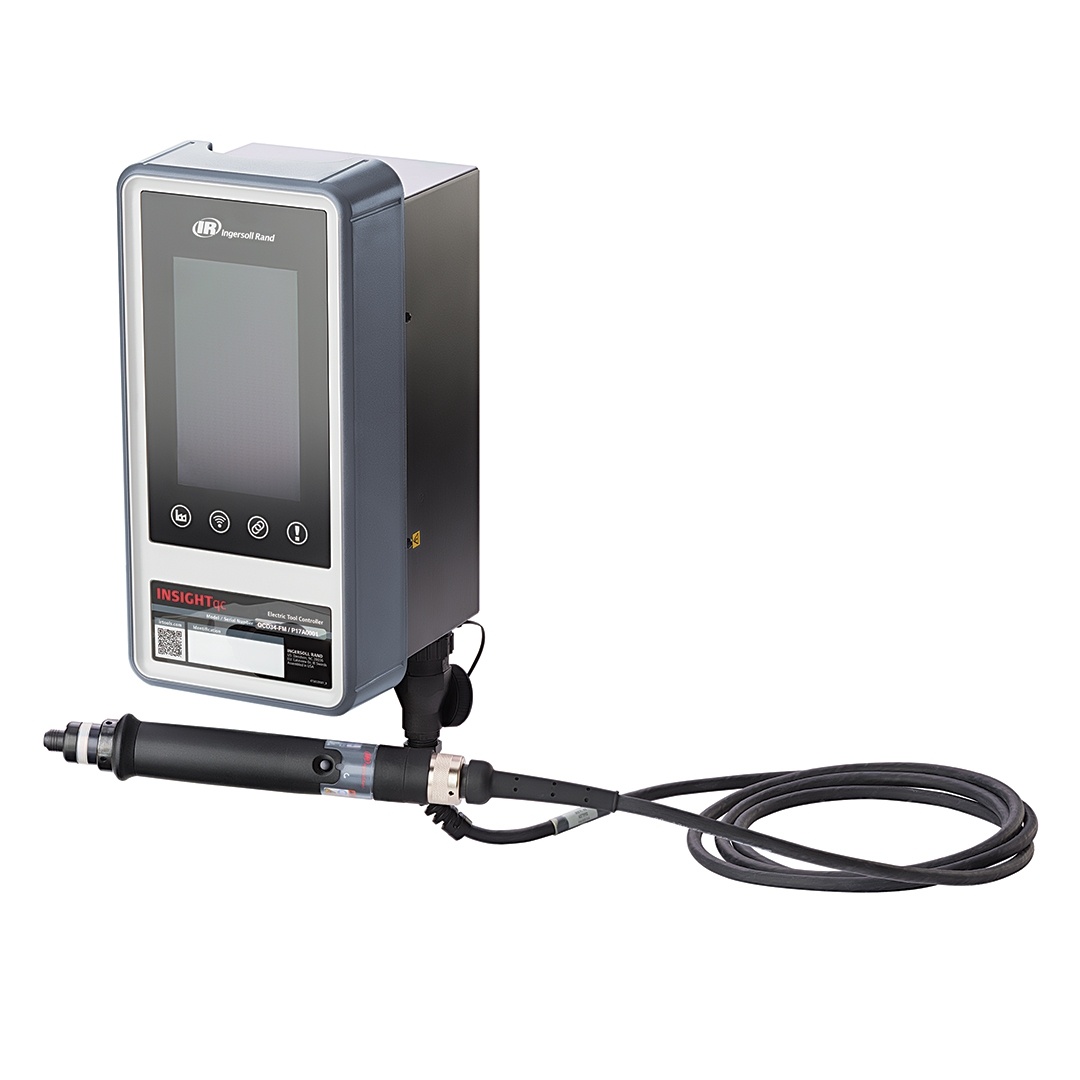

- Range includes handheld and fixtured tools along with the controllers and software
- Choice of pistol, inline, angle or offset configuration
Product Overview
Ingersoll Rand offers a comprehensive family of DC electric fastening systems that deliver simple, flexible and capable solutions to cover all assembly requirements.
- Torque range from 0.3 - 2250 Nm (0.2 - 1660 ft-lb)
- Square drive sizes from 1/4" to 3/4"
Product resources
Technical specifications
| Series | Torque range Nm | Torque range ft-lb | Square drive size | Configuration | Actuation | Free speed RPM | Weight kg |
|---|---|---|---|---|---|---|---|
| QE2 Angle | 0.8 - 12 | 0.6 - 8.8 | 1/4" & 3/8" | Angle | Lever | 2000 | 0.95 |
| QE Fixtured Angle | 0.3 - 400 | 0.2 - 295 | 3/8", 1/2" & 3/4" | Angle | Controller remote | 1200 | 6 |
| QE8 Angle | 13 - 400 | 9.6 - 295 | 1/2" & 3/4" | Angle | Trigger | 1200 | 6 |
| QE4 Angle | 2 - 34 | 1.4 - 25 | 1/4", 3/8" & 1/2" | Angle | Trigger | 1200 | 1.3 |
| QE6 Angle | 6 - 80 | 4.4 - 59 | 3/8" & 1/2" | Angle | Trigger | 1230 | 1.9 |
| QM5 Fixtured Spindles | 3.5 - 90 | 2.5 - 66 | 3/8" & 1/2" | Inline | Controller remote | 590 | 4.2 |
| QM7 Fixtured Spindles | 19 - 220 | 14 - 162 | 1/2" & 3/4" | Inline | Controller remote | 273 | 8.9 |
| QM3 Fixtured Spindles | 0.8 - 20 | 0.6 - 15 | 3/8" & 1/2" | Inline | Controller remote | 1382 | 2.7 |
| QM9 Fixtured Spindles | 79 - 2250 | 58 - 1660 | 3/4", 1" & 1 1/2" | Inline | Controller remote | - | 18.6 |
| QE Fixtured Offset | 0.3 - 400 | 0.2 - 295 | 3/8" | Offset | Controller remote | 1840 | 2.5 |
| QE Fixtured Inline | 0.3 - 400 | 0.2 - 295 | 3/8" & 1/2" | Inline | Controller remote | 3000 | 3.4 |
| QE2 Inline | 0.3 - 15 | 0.2 - 11 | 1/4" & 3/8" | Inline | Lever, Trigger & Push-to-start | 3000 | 0.91 |
| QE6 Inline | 4 - 50 | 3 - 37 | 3/8" & 1/2" | Inline | Trigger | 1840 | 2.3 |
| QE4 Inline | 2 - 34 | 1.5 - 25 | 1/4", 3/8" & 1/2" | Inline | Trigger | 1820 | 1.3 |
| QE8 Inline | 13 - 400 | 9.6 - 295 | 3/8" & 1/2" | Inline | Trigger | 1470 | 5.5 |
| QE2 Pistol | 0.3 - 15 | 0.2 - 11 | 1/4" | Pistol | Trigger & Push-to-start | 3000 | 0.66 |
| QE4 Pistol | 2 - 34 | 1.5 - 25 | 1/4" | Pistol | Trigger | 1820 | 1.2 |
| QE4 Push-to-Start | 2 - 34 | 1.5 - 25 | 1/4" & 3/8" | Inline | Trigger & Push-to-start | 1820 | 1.2 |
