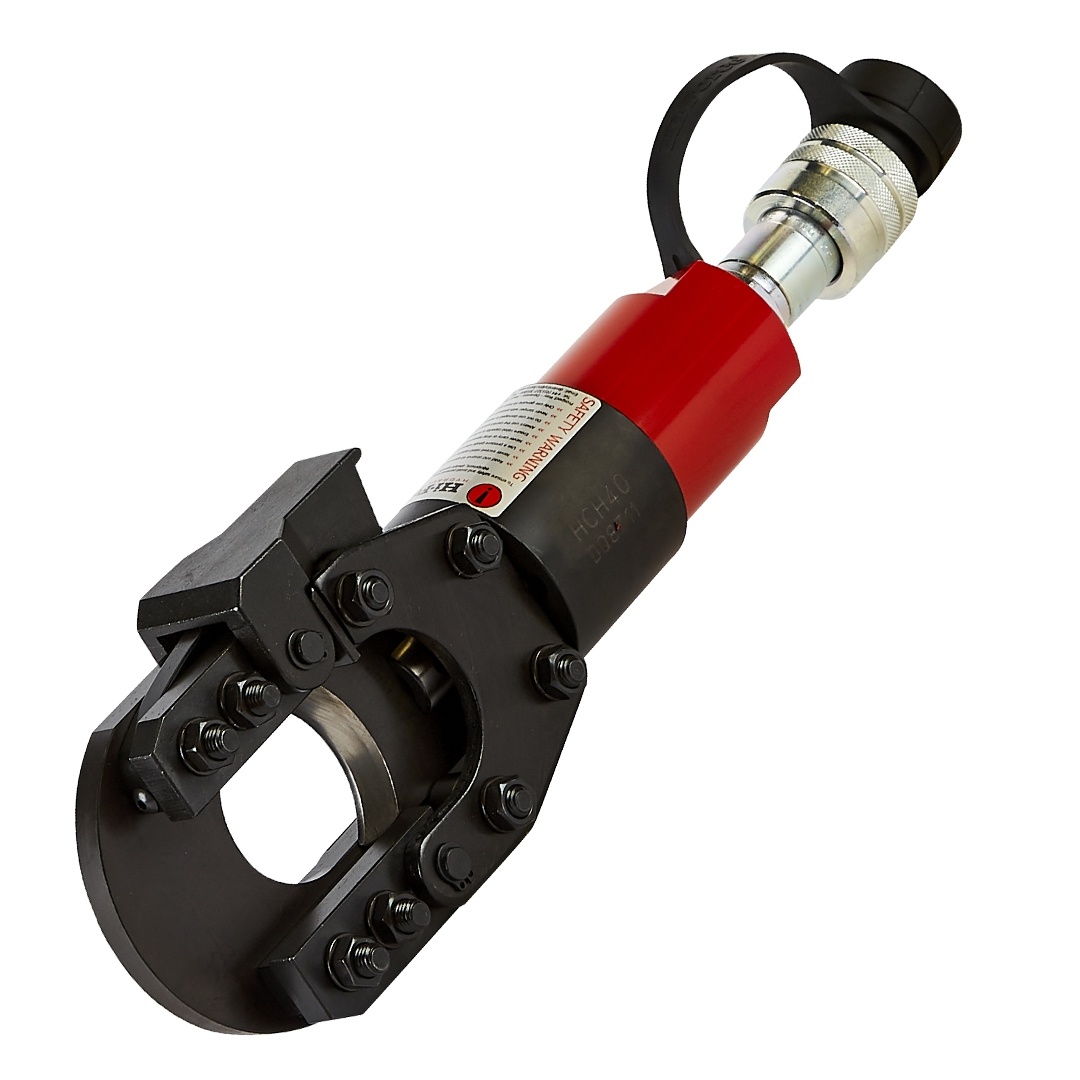

HCH Range

Hydraulic Cutter Heads

  • Single acting, spring assisted return design
  • High quality tool steel cutting blades
  • Fitted with quick connect couplings for easy connection to hydraulic pump & hose
  • Suitable for cutting copper, aluminium and telephone cables including armoured and lead sheathed cables
Enquire now

Product Overview

The HCH range of hydraulic cutter heads provides a quick, safe and cost-effective solution for cutting copper, aluminium and telephone cables in heavy engineering, construction, mining, manufacturing and many other industries.

  • Cutting capacity up to 120 mm diameter
  • Compact and lightweight
  • Working pressure 700 bar

Technical specifications

Model numberCutting ForceWeight (kg)
HCH4072.8
HCH1201215.0

Material

MaterialDescriptionMaximum diameter cutting capacity in mm
HCH40HCH120
Steel Wire Rope6x7 Hempcore20-
6x12 Hempcore25-
6x19 Hempcore25-
Round BarSoft copper bar25-
Soft aluminium bar25-
Soft steel bar (below SS41)16-
Wire StrandsBare copper strands4042
Bare aluminium strands4046
CableTelephone cable CCP-120
Armoured underground cable40120

Note: The cable of XLPE armoured underground cable cannot contain ‘PVC cover’ and ‘steel wire’.

Dimension

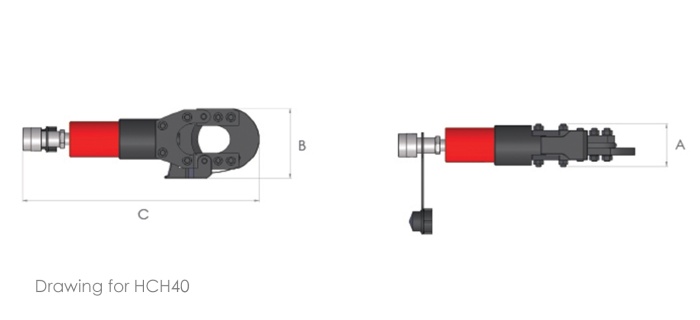

Hi force dim draw crimpers cutters HCH40

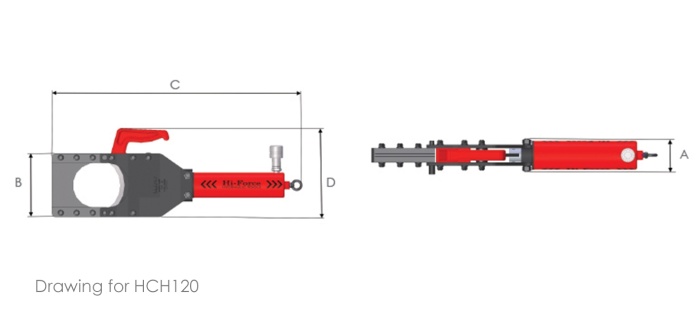

Hi force dim draw crimpers cutters HCH120

Dimensions (mm)

Model numberABCD
HCH4060101330-
HCH12080178702248
