Hi-Force product
BC Range
Battery Operated Cable Crimping Tools
- Fast and quiet operation with no vibration
- Built-in automatic pump pressure release valve
- Low battery power warning light
- Supplied complete with battery, charger, carrying strap and storage case
Product Overview

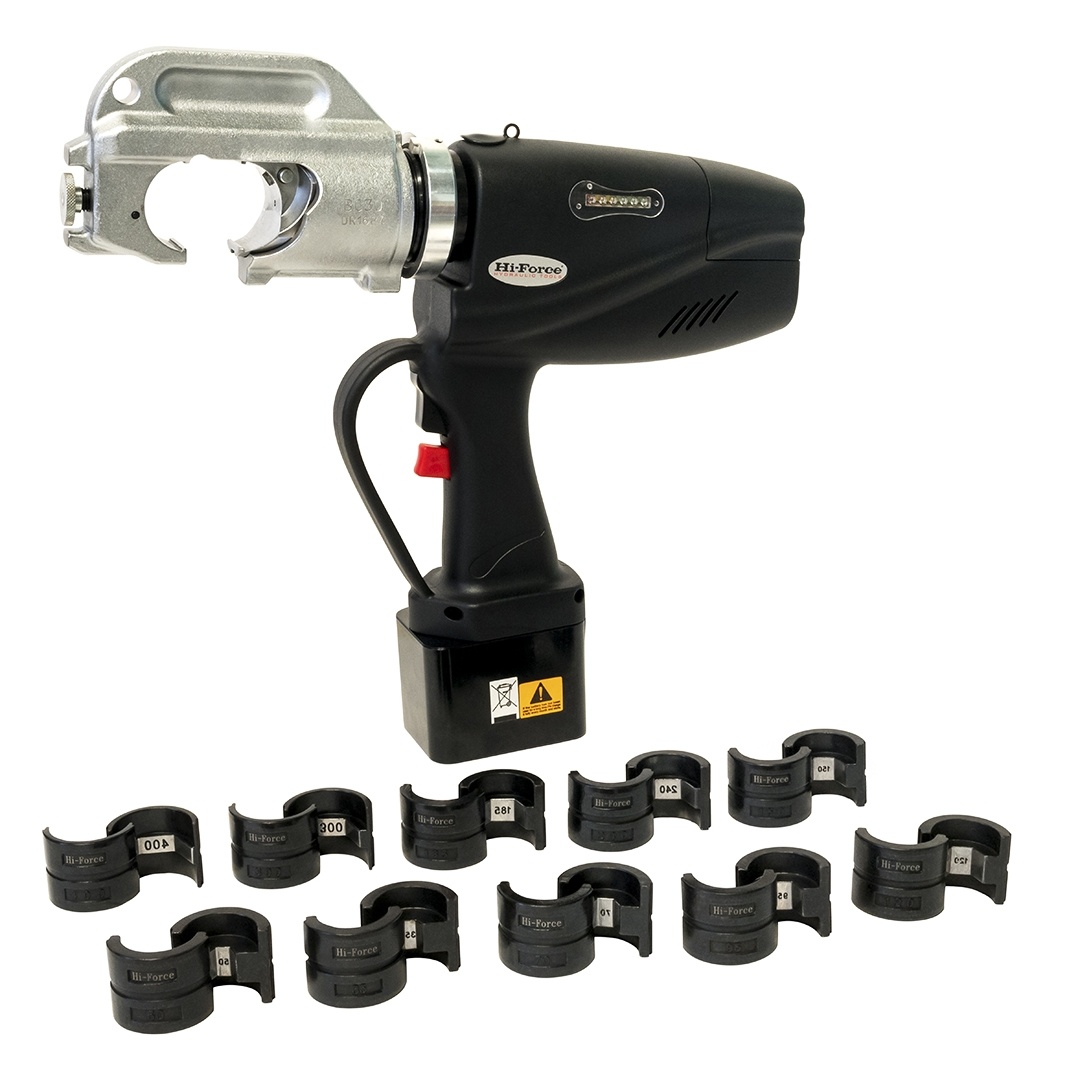

The BC range of battery powered crimping tools consists of 4 models with a choice of ‘C’ jaw or parallel guide design that incorporates a 360° swivel head.
- Fast self-contained battery powered
- Supplied complete with standard set of dies
- Lightweight and easy to operate
Product resources
Technical specifications
| Model Number | Output Tonnes | C-Jaw Opening | Applicable Range DIN mm2 | Standard Dies mm2 | Weight kg | |||
|---|---|---|---|---|---|---|---|---|
| BC18X | 5 | not applicable | 10-185 | With die 10-16, 25-35, 50-70, 95-120, 150, 185 | 3.8 | |||
| BC30 | 10 | 30 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 5.9 | |||
| BC40 | 10 | 38 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 7.2 | |||
| BC63 | 16 | not applicable | 35-630 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630 | 6.9 | |||
Optional Die Sets
| Model Number | Description |
|---|---|
| CD10 | Optional die set 10 mm2, suitable for crimping tool BC30, BC40 & BC63 |
| CD16 | Optional die set 16 mm2, suitable for crimping tool BC30, BC40 & BC63 |
| CD25 | Optional die set 25 mm2, suitable for crimping tool BC30, BC40 & BC63 |
Accessories
| Model Number | Description |
|---|---|

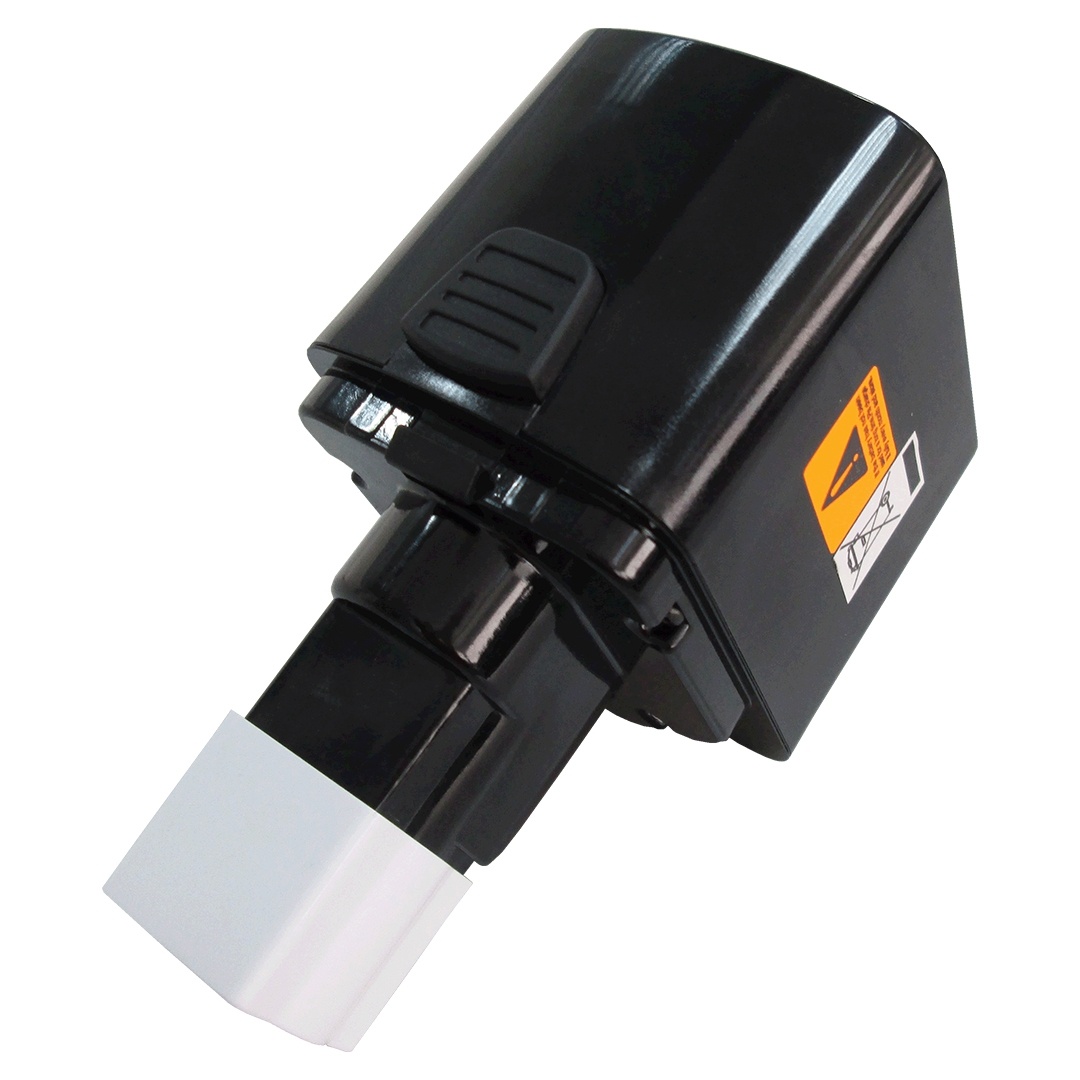

| BP12 | Battery Pack 14.4V |

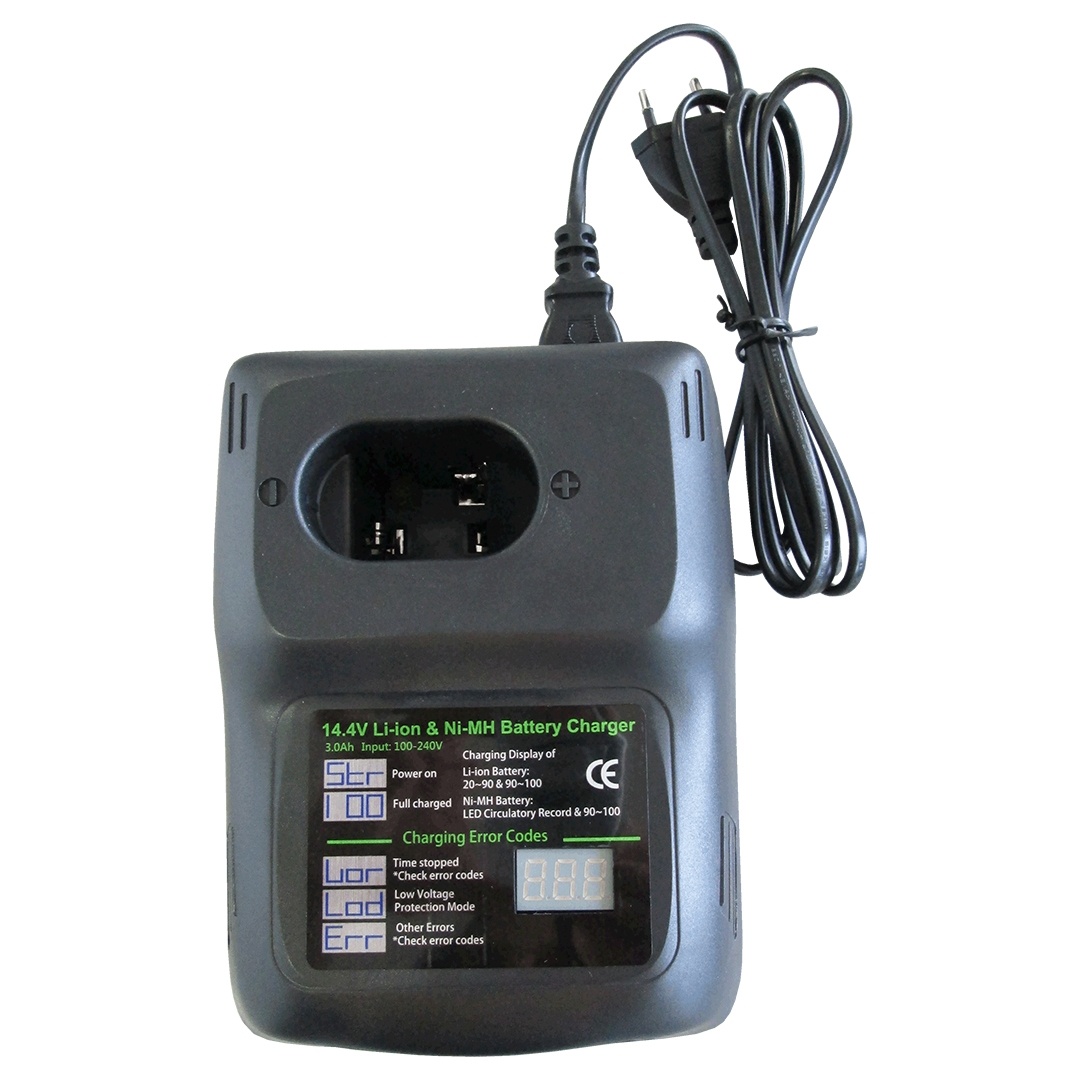

| CU12 | Charger 110V - 230V |
| MP110 | 110V power supply to operate unit directly from mains |
| MP220 | 220/230V power supply to operate unit directly from mains |
Note: Charger supplied separately
Dimension
Dimensions (mm)
| Model number | A | B | C |
|---|---|---|---|
| BC18X | 370 | 280 | 70 |
| BC30 | 400 | 280 | 70 |
| BC40 | 430 | 270 | 70 |
| BC63 | 420 | 320 | 75 |
