CH Range
Cable Crimping Heads

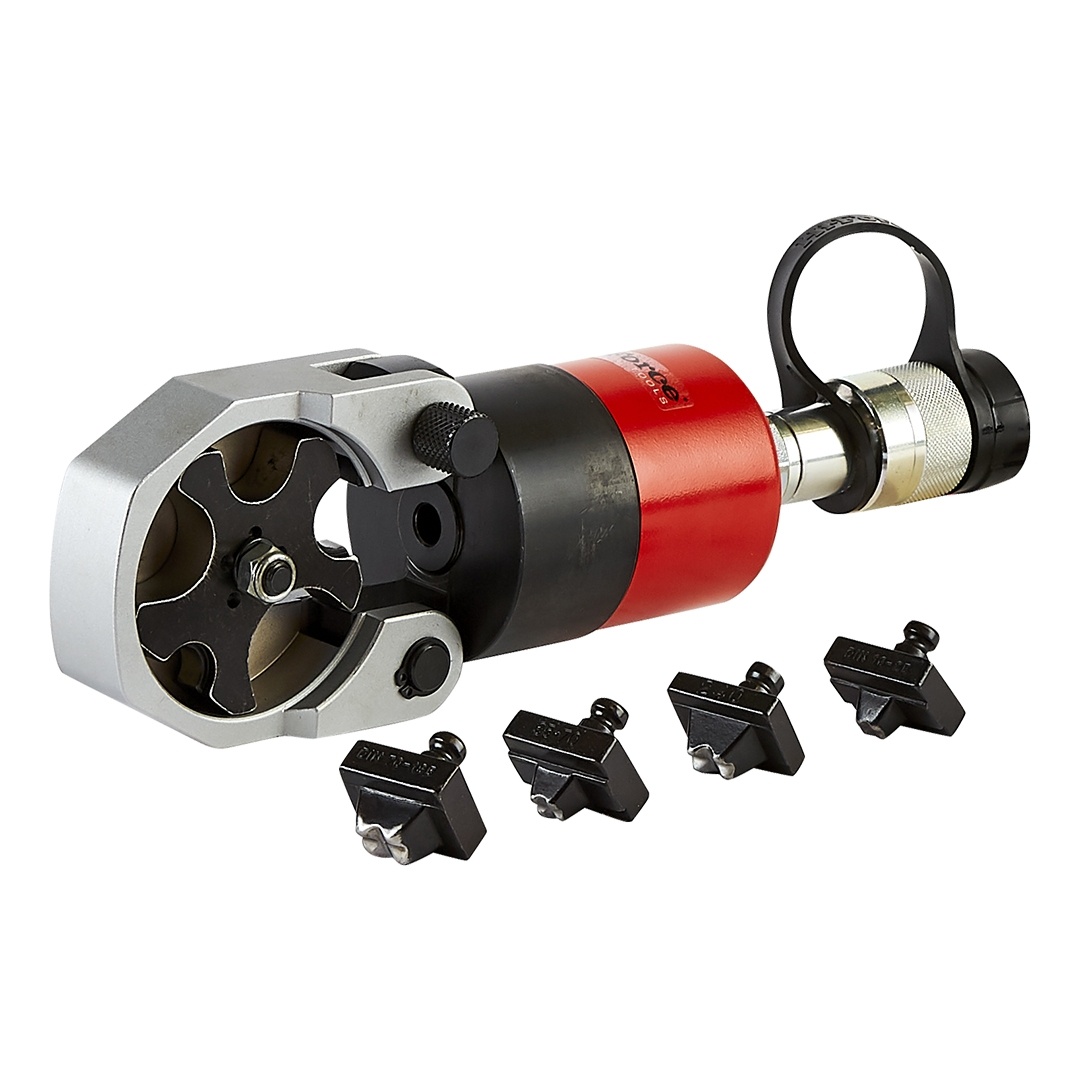

- Model CH21 is suitable for crimping non-insulated terminals up to 240 mm²
- Models CH30, CH32 & CH40 are suitable for crimping connectors up to 400 mm²
- Models CH63 & CH80 are suitable for crimping connectors up to 630 mm²
- Model CH1000N is suitable for crimping distribution and transmission lines up to 1000 mm²
Product Overview
The CH hydraulic cable crimping tool range offers 7 models with a choice of open “C” jaw or parallel guide design. All models are supplied complete with standard die sets and a carrying case. Suitable pump units include HP227FPC foot operated pump set which includes elbow fitting, gauge, gauge block, 3 metre hose and male coupler. All models, excluding CH1000N, are available as a complete kit, comprising of HP227FPC, CSB1 metal storage case and selected crimping tool with die sets.
- Choice of 7 models available
- 180° rotating head for easy fitment
- Working pressure 700 bar
Product resources
More Product resources
Technical specifications
| Model Number | Output tonnes | C-Jaw Opening | Applicable Range DIN mm2 | Standard dies mm2 | Length mm | Weight kg |
|---|---|---|---|---|---|---|
| CH21 | 10 | not applicable | 16-240 | With die (4 pcs) 16-25, 35-70, 70-185, 240 | 210 | 3.0 |
| 10 | not applicable | 16-240 | Female die (1 pc) 25-35, 50-70, 95-120, 150-185, 240 | 210 | 3.0 | |
| CH30 | 12 | 30 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 220 | 4.0 |
| CH32 | 16 | not applicable | 16-400 | With die (4 pcs) 16, 25-35, 50-120, 150-400 | 210 | 3.6 |
| 16 | not applicable | 16-400 | Female die (8 pcs) 16-25, 35-70, 95-120, 150, 185, 240, 300, 400 | 210 | 3.6 | |
| CH40 | 10 | 42 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 245 | 4.8 |
| CH63 | 16 | not applicable | 35-630 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630 | 240 | 4.8 |
| CH80 | 13 | 50 mm | 35-630 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630 | 374 | 7.0 |
| CH1000N | 53 | not applicable | 500-1000 | With die 500, 630, 800, 1000 | 450 | 30.7 |
Comprehensive Kits
| Model Number | Description |
|---|---|
| CHP21 | Comprehensive kit, comprising of crimper CH21, manual operated foot pump HP227FPC and steel box CSB1 |
| CHP30 | Comprehensive kit, comprising of crimper CH30, manual operated foot pump HP227FPC and steel box CSB1 |
| CHP32 | Comprehensive kit, comprising of crimper CH32, manual operated foot pump HP227FPC and steel box CSB1 |
| CHP40 | Comprehensive kit, comprising of crimper CH40, manual operated foot pump HP227FPC and steel box CSB1 |
| CHP63 | Comprehensive kit, comprising of crimper CH63, manual operated foot pump HP227FPC and steel box CSB1 |
| CHP80 | Comprehensive kit, comprising of crimper CH80, manual operated foot pump HP227FPC and steel box CSB1 |
Optional Die Sets
| Model Number | Description |
|---|---|
| CD10 | Optional die set 10 mm2, suitable for crimping tool CH30, CH40 & CH63 |
| CD16 | Optional die set 16 mm2, suitable for crimping tool CH30, CH40 & CH63 |
| CD25 | Optional die set 25 mm2, suitable for crimping tool CH30, CH40 & CH63 |

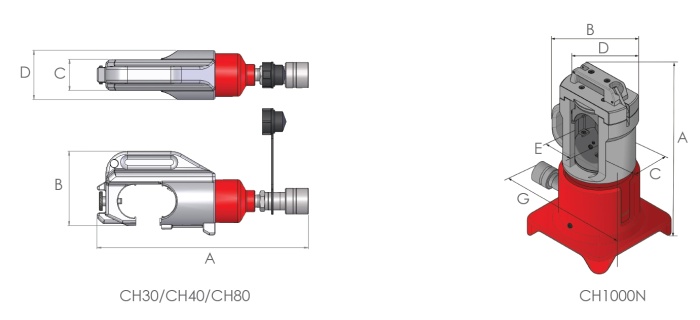

Dimension
Dimensions (mm)
| Model Number | ||||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| CH21 | 278 | 88 | 28 | - | - | - | - | - |
| CH30 | 294 | 105 | 43 | 68 | - | - | - | - |
| CH32 | 284 | 78 | 50 | - | 53 | 43 | 63 | 96 |
| CH40 | 326 | 113 | 43 | 74 | - | - | - | - |
| CH63 | 319 | 78 | 50 | - | 49 | - | 163 | - |
| CH80 | 374 | 110 | 26 | 64 | - | - | - | - |
| CH1000N | 395 | 210 | 90 | 170 | 82 | - | 240 | - |
