HEP1 Range | Hi-Force | Pumps | HES
Hi-Force product

HEP1 Range

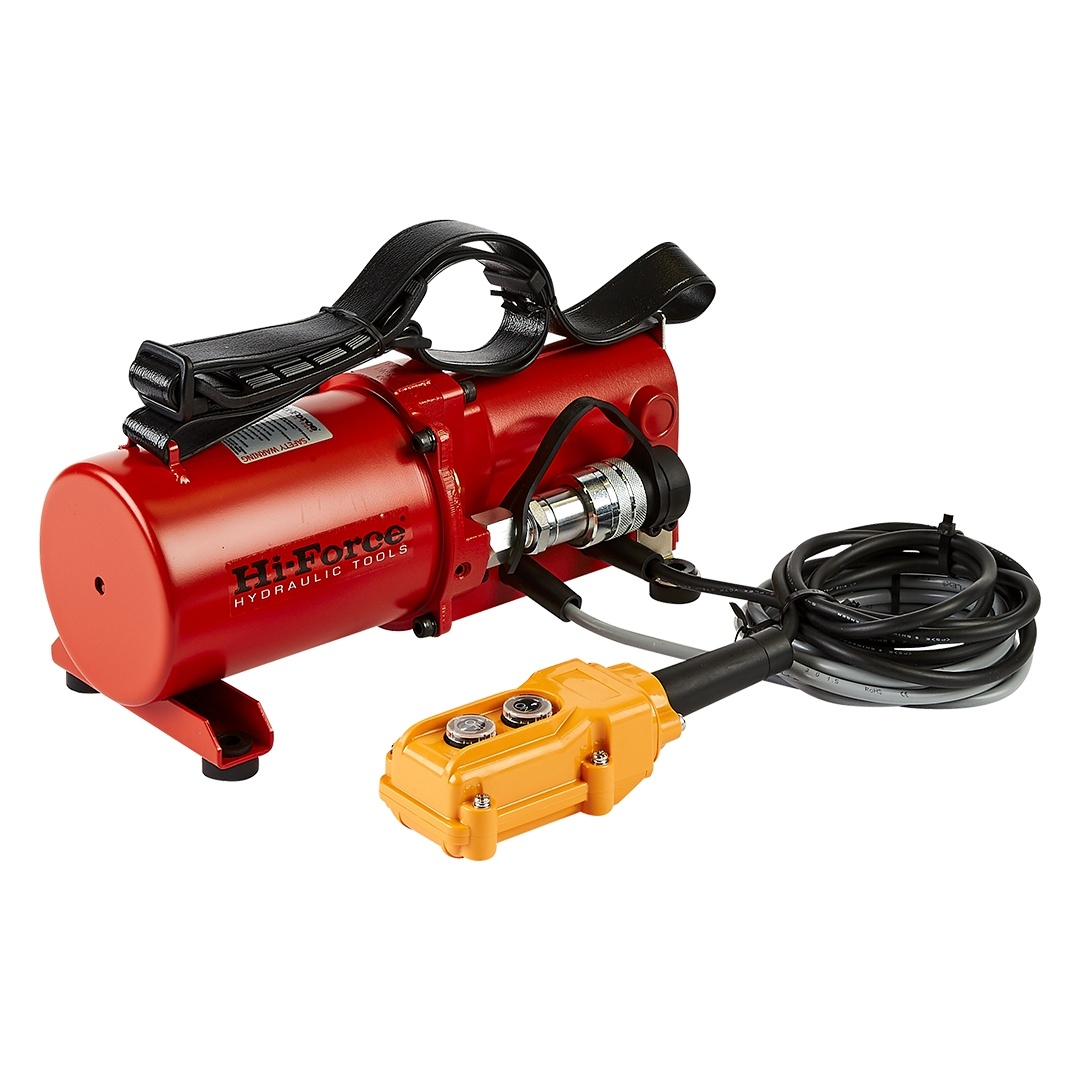

Electric Driven Two Stage Mini Pumps with Carrying Strap

  • 110 or 240V single phase motor options
  • Internal safety overload valve
  • Supplied with carrying strap
Enquire now

Product Overview

The HEP1 range of two stage electric driven hydraulic mini pumps, offers the smallest and lightest weight, electric powered pump in the Hi-Force product range. Available with a choice of 110 volt or 240 volt single phase electric motor, both models feature an electric solenoid operated valve, complete with remote hand pendant controller and 3 metre control cable as standard.

  • Working pressure 700 bar
  • Two stage operation
  • Lightweight, compact design

Technical specifications

Model numberMotor voltageMaximum flow rate litres/minValve typeUsable oil cap litresWeight kg
1st stage2nd stage
HEP1211S110V-1Ph20.22-way0.87.5
HEP1212S240V-1Ph20.22-way0.87.5

Dimension

Hi force dim draw pumps pump HEP1

Dimensions (mm)

Model numberABCDEFG
HEP1211S333269140139138110105
HEP1212S333269140139138110105
