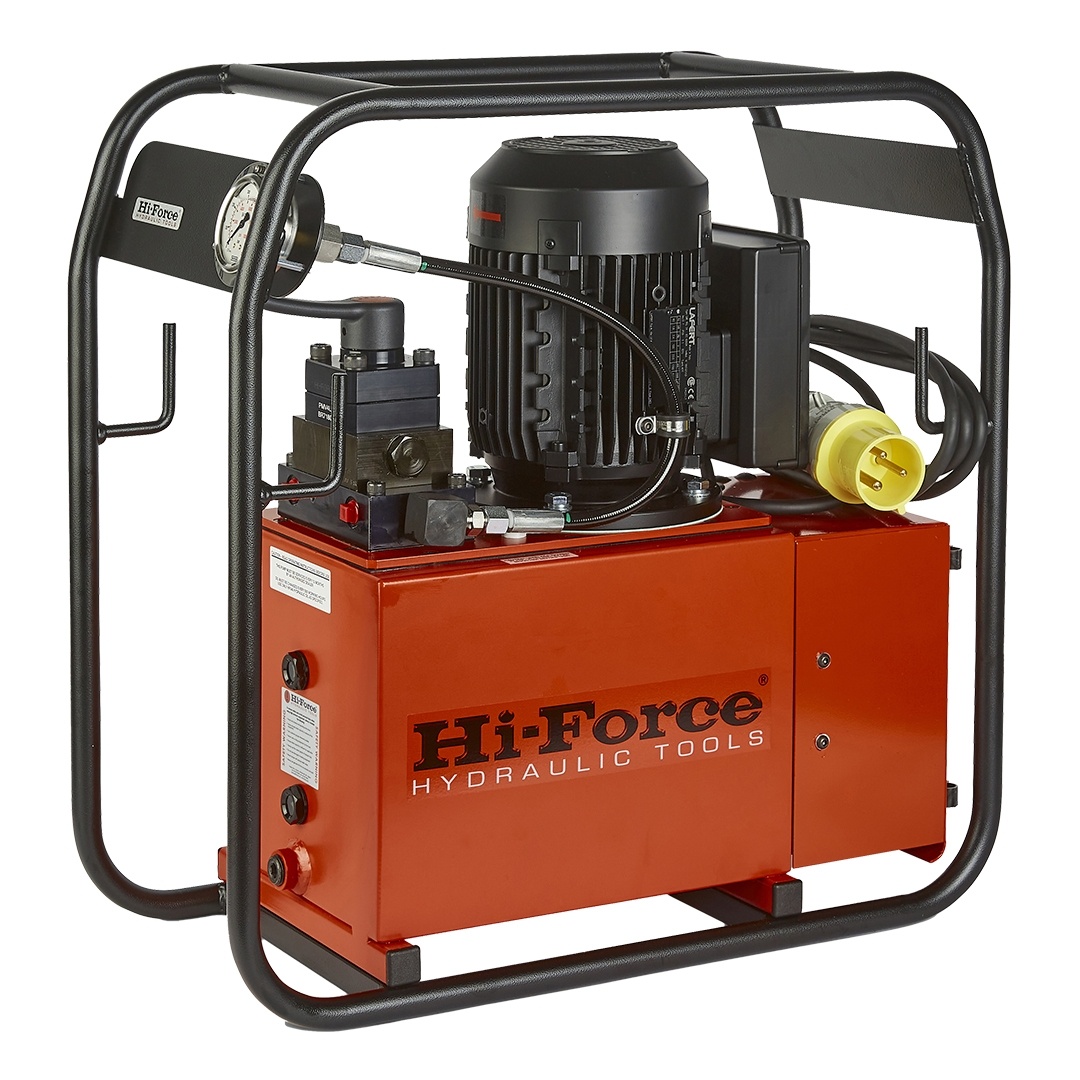

HEP2 Range
Electric Driven Two Stage Medium Flow General Duty Pumps
- Externally adjustable pressure relief valve
- Manual valve with load holding feature fitted as standard (excl. 2-way valves)
- Cable management features for cable/hose winding and stowage
- Supplied as standard with pressure gauge and a robust roll frame
Product Overview
The HEP2 series two stage electric driven hydraulic pump range offers a low pressure flow rate of 7 litres/min with automatic changeover to high pressure flow rate of 0.65 litres/min up to 700 bar with a choice of 110, 230 or 400/460 volt motor options.
- Working pressure 700 bar
- Two stage operation
- Choice of 10 or 25 litre oil reservoir
Product resources
More Product resources
Technical specifications
| Model Number | Valve Type | Oil Cap. litres | Maximum flow rate litres/min | Motor Voltage | Model Number (60 Hz motor) | Weight kg | |
|---|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | ||||||
| HEP207111 | P-T Plate | 10 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207111H | 52.0 |
| HEP207112 | P-T Plate | 10 | 7 | 0.65 | 230V 50 Hz - 1Ph | HEP207112H | 52.0 |
| HEP207114 | P-T Plate | 10 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3Ph | - | 52.0 |
| HEP207121 | P-T Plate | 25 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207121H | 68.0 |
| HEP207122 | P-T Plate | 25 | 7 | 0.65 | 230V 50 Hz - 1Ph | HEP207122H | 68.0 |
| HEP207124 | P-T Plate | 25 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3Ph | - | 68.0 |
| HEP207211 | 2-way | 10 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207211H | 52.5 |
| HEP207212 | 2-way | 10 | 7 | 0.65 | 230V 50 Hz - 1Ph | HEP207212H | 52.5 |
| HEP207214 | 2-way | 10 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3Ph | - | 52.5 |
| HEP207221 | 2-way | 25 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207221H | 68.5 |
| HEP207222 | 2-way | 25 | 7 | 0.65 | 230V 50 Hz - 1Ph | HEP207222H | 68.5 |
| HEP207224 | 2-way | 25 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3Ph | - | 68.5 |
| HEP207311 | 3-way | 10 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207311H | 52.5 |
| HEP207312 | 3-way | 10 | 7 | 0.65 | 230V 50 Hz - 1Ph | HEP207312H | 52.5 |
| HEP207314 | 3-way | 10 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3Ph | - | 52.5 |
| HEP207321 | 3-way | 25 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207321H | 68.5 |
| HEP207322 | 3-way | 25 | 7 | 0.65 | 230V 50 Hz - 1Ph | HEP207322H | 68.5 |
| HEP207324 | 3-way | 25 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3Ph | - | 68.5 |
| HEP207411 | 4-way | 10 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207411H | 52.5 |
| HEP207412 | 4-way | 10 | 7 | 0.65 | 230V 50 Hz - 1Ph | HEP207412H | 52.5 |
| HEP207414 | 4-way | 10 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3Ph | - | 52.5 |
| HEP207421 | 4-way | 25 | 7 | 0.65 | 110V 50 Hz - 1Ph | HEP207421H | 68.5 |
| HEP207422 | 4-way | 25 | 7 | 0.65 | 230V 50 Hz - 1 Ph | HEP207422H | 68.5 |
| HEP207424 | 4-way | 25 | 7 | 0.65 | 400V 50 Hz/460V 60 Hz - 3 Ph | - | 68.5 |
Note:
1) All 400/460V models are suitable for operation at 50 Hz and 60 Hz.
2) All 110 and 230 volt models are supplied to run at 50 Hz as standard, refer to the table for pumps with 60 Hz motor. 60 Hz models deliver approximately 15-20% higher flow rate.
3) To order pumps with low voltage solenoid valve with hand pendant controller, suffix 'S' the pump model number
Dimension
Dimensions (mm)
| Model number | A | B | C |
|---|---|---|---|
| HEP207111 | 627 | 292 | 632 |
| HEP207112 | 627 | 292 | 632 |
| HEP207114 | 627 | 292 | 632 |
| HEP207121 | 627 | 352 | 754 |
| HEP207122 | 627 | 352 | 754 |
| HEP207124 | 627 | 352 | 754 |
| HEP207211 | 627 | 292 | 632 |
| HEP207212 | 627 | 292 | 632 |
| HEP207214 | 627 | 292 | 632 |
| HEP207221 | 627 | 352 | 754 |
| HEP207222 | 627 | 352 | 754 |
| HEP207224 | 627 | 352 | 754 |
| HEP207311 | 627 | 292 | 632 |
| HEP207312 | 627 | 292 | 632 |
| HEP207314 | 627 | 292 | 632 |
| HEP207321 | 627 | 352 | 754 |
| HEP207322 | 627 | 352 | 754 |
| HEP207324 | 627 | 352 | 754 |
| HEP207411 | 627 | 292 | 632 |
| HEP207412 | 627 | 292 | 632 |
| HEP207414 | 627 | 292 | 632 |
| HEP207421 | 627 | 352 | 754 |
| HEP207422 | 627 | 352 | 754 |
| HEP207424 | 627 | 352 | 754 |
