HP-FP Range
Manually Operated Foot Pumps
- Oil reservoir capacity 2.3 litres
- External pressure release valve and factory set safety relief valve
- Wide foot pedal for easy and controlled pumping action
- Steel framework for maximum stability
Product Overview

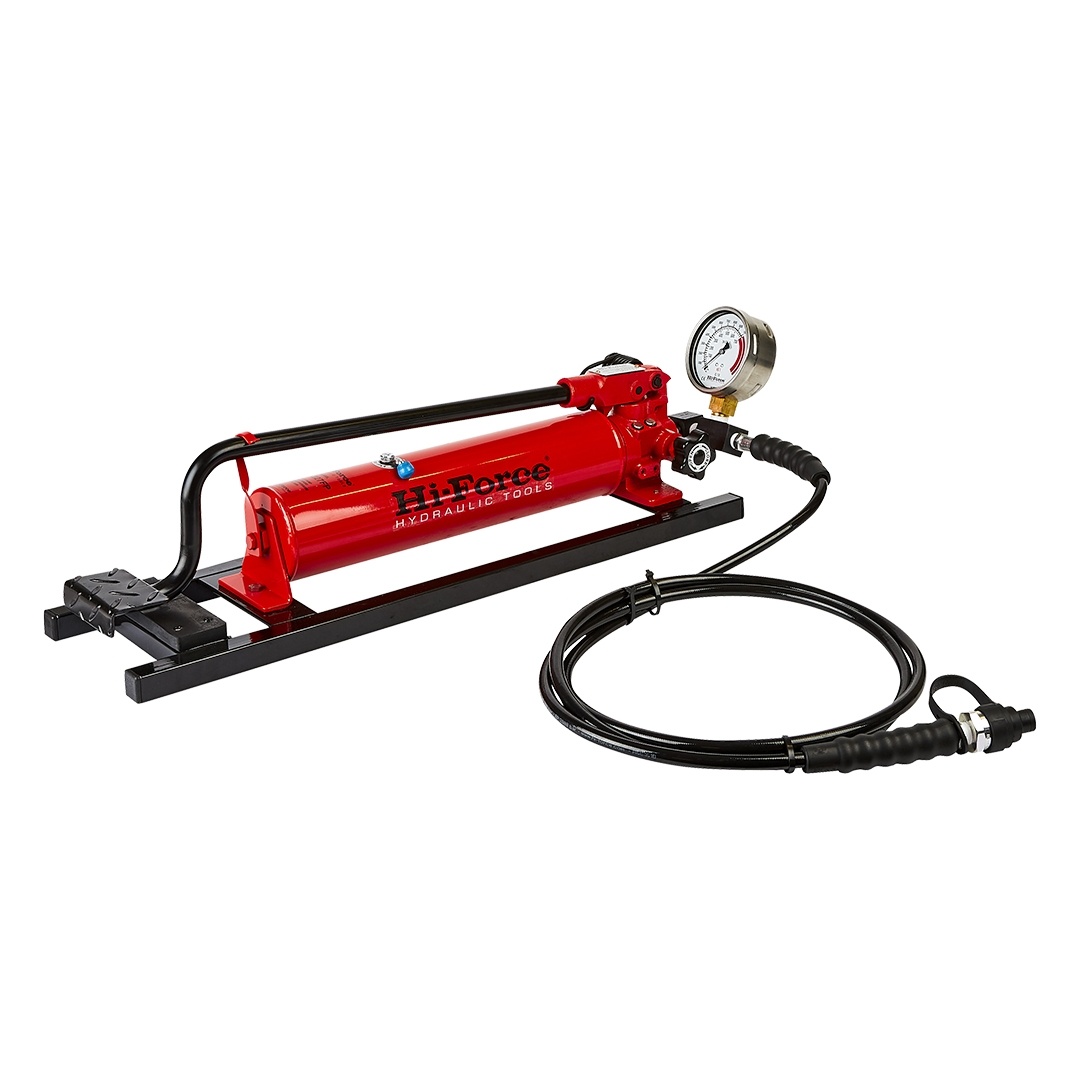

The HP227FPC manually operated foot pump is supplied complete with 100 mm diameter pressure gauge, gauge mounting block and 3 metre length hydraulic hose with CM1 quick connect male coupler. Ideally suited for use with Hi-Force CH series crimper heads and all other Hi-Force 700 bar maximum working pressure, hydraulic tools that require a remote pump operation, the HP227FPC has a superb two speed low pressure displacement (12.9 cm3 per stroke) with automatic changeover to high pressure displacement (2.3 cm3 per stroke) up to 700 bar.
- Working pressure 700 bar
- Two stage operation
- Durable steel construction
Product resources
Technical specifications
| Model Number | Valve Type | Usable oil cap. litres | Displacement Per Stroke cm3 | Handle Effort kg | Weight kg | |
|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | |||||
| HP227FP | 2-way | 2.3 | 12.9 | 2.3 | 39 | 12.5 |
| HP227FPC | 2-way | 2.3 | 12.9 | 2.3 | 39 | 14.5 |
Dimension
Dimensions (mm)
| Model number | A | B | C | D | E |
|---|---|---|---|---|---|
| HP227FP | 544 | 715 | 185 | 200 | 78 |
| HP227FPC | 544 | 763 | 227 | 200 | 78 |
