HP Range - Aluminium

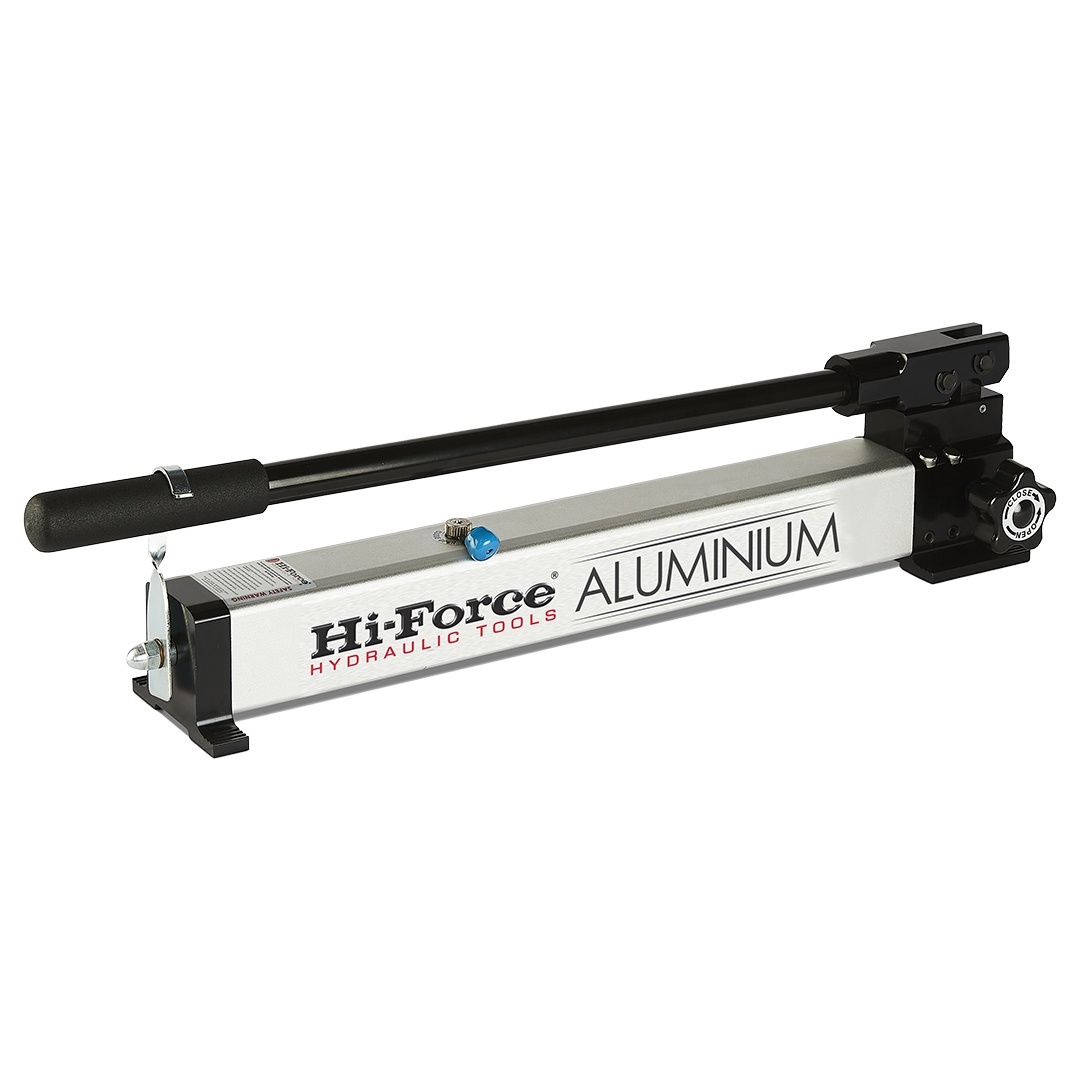

Manually Operated Aluminium Pumps
- Oil reservoir capacity up to 5 litres
- External pressure release valve
- Factory set safety relief valve
- Changeover pressure 14 bar
Product Overview
The HP manually operated aluminium pump range offers two speed operation and all models are supplied complete with a pre-filled oil reservoir, ready for immediate use. All models have a maximum working pressure of 700 bar and the range includes pump models suitable for use with either single or double acting cylinders and tools.
- Two stage operation
- Working pressure 700 bar
- Six models with choice of control valves
Product resources
Technical specifications
| Model Number | Valve Type | Displacement Per Stroke cm3 | Usable Oil Cap. Litres | Handle Effort kg | Weight kg | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | |||||||||||
| Two stage hand operated pumps for single acting cylinders and tools | ||||||||||||
| HP211 | 2-way | 12.9 | 1.0 | 0.5 | 27 | 2.0 | ||||||
| HP212 | 2-way | 12.9 | 2.3 | 1 | 40 | 4.0 | ||||||

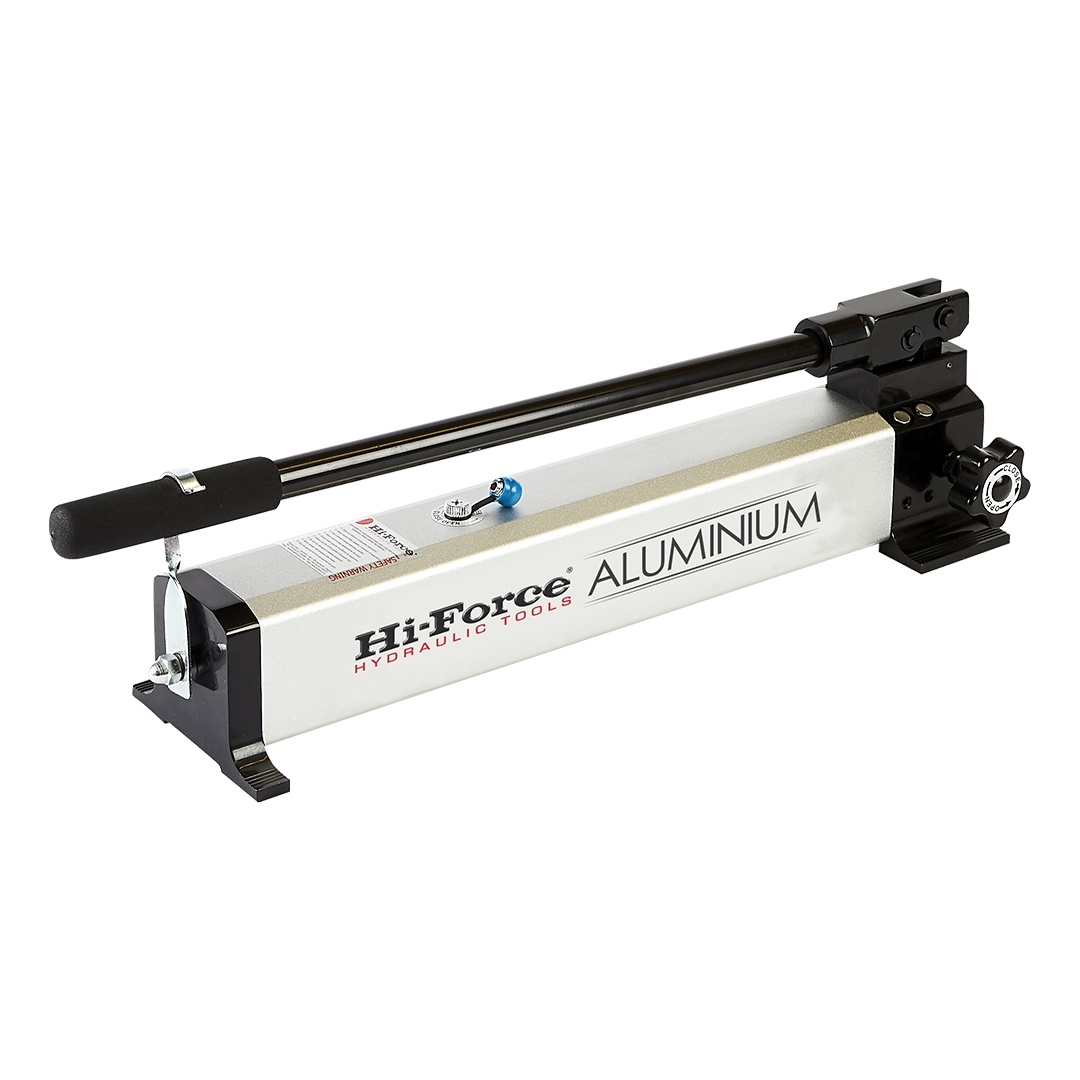

| HP232 | 2-way | 12.9 | 2.3 | 2 | 40 | 6.9 | ||||||
| HP252 | 2-way | 12.9 | 2.3 | 5 | 40 | 9.6 | ||||||
| Two stage hand operated pumps for double acting cylinders and tools | ||||||||||||
| HP232D | 4-way | 12.9 | 2.3 | 2 | 40 | 8.7 | ||||||
| HP252D | 4-way | 12.9 | 2.3 | 5 | 40 | 13.6 | ||||||
Dimension
Dimensions (mm)
| Model Number | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||||||
| Two stage hand operated pumps for single acting cylinders and tools | ||||||||||||
| HP211 | 335 | 388 | 135 | 100 | 125 | 40 | ||||||
| HP212 | 560 | 610 | 140 | 100 | 125 | 40 | ||||||
| HP232 | 560 | 610 | 160 | 140 | 155 | 50 | ||||||
| HP252 | 585 | 610 | 160 | 168 | 145 | 50 | ||||||
| Two stage hand operated pumps for double acting cylinders and tools | ||||||||||||
| HP232D | 580 | 625 | 160 | 140 | 175 | 30 | ||||||
| HP252D | 605 | 625 | 160 | 168 | 175 | 30 | ||||||
