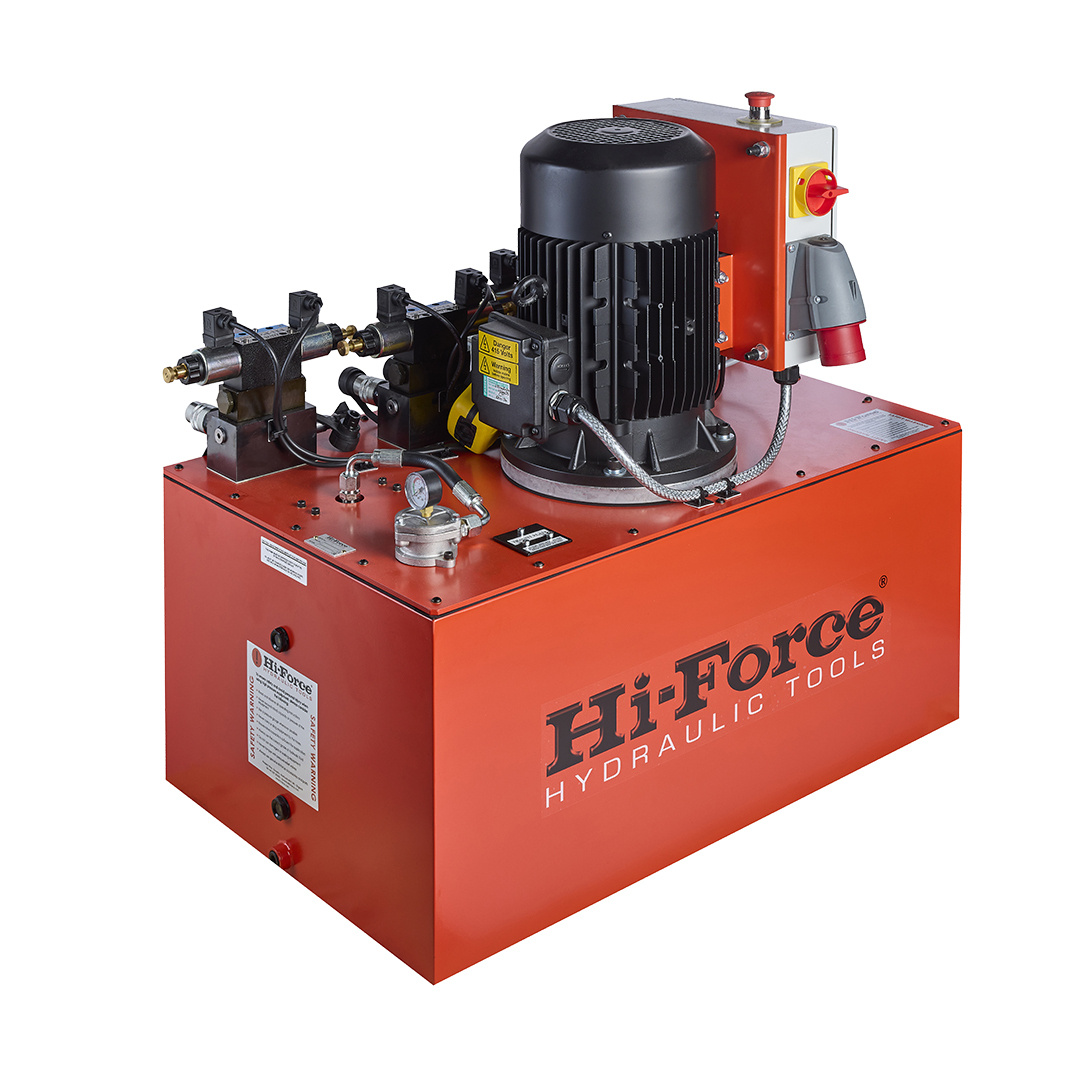

HSP Range
Electric Driven Split Flow Multi-Outlet Pumps
- Selection of outlet valve configurations ranging from 4-outlet pump with manual valves to 8-outlet pump with electric solenoid valves
- Control system with individual outlet selection switches, providing choice of single or multiple synchronised operation
- Heavy duty completely enclosed, fan cooled three phase electric motor
- Externally adjustable pressure setting valves on each outlet, for pre-setting pressure up to 700 bar maximum
Product Overview
The HSP series electric driven split flow hydraulic pump range offers users the opportunity to operate up to 8 independent hydraulic outlets from within a single pump assembly. With easy to operate controls, HSP series pumps are ideally suited for synchronous lift applications particularly where there is uneven load distribution between the multiple jacking points. All models are 380/440 volt three phase electrical supply operation.
- Working pressure 700 bar
- Efficient 3 phase motors with DC electric solenoids
- Both single and double acting cylinder models available
Product resources
Technical specifications
| Model Number | Valve configuration | Valve type | Oil Capacity litres | Oil Flow Per Outlet l/min | Motor Voltage | Motor Power kW | Weight kg |
|---|---|---|---|---|---|---|---|
| HSP4SM | 4 x 3-way | manual | 100 | 1.1 | 400V 50 Hz/460V 60 Hz - 3Ph | 7.5 | 272.0 |
| HSP4DM | 4 x 4-way | manual | 100 | 1.1 | 400V 50 Hz/460V 60 Hz - 3Ph | 7.5 | 272.0 |
| HSP4SE | 4 x 3-way | electric | 100 | 1.1 | 400V 50 Hz/460V 60 Hz - 3Ph | 7.5 | 274.0 |
| HSP4DE | 4 x 4-way | electric | 100 | 1.1 | 400V 50 Hz/460V 60 Hz - 3Ph | 7.5 | 274.0 |
| HSP6SE | 6 x 3-way | electric | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph | 11 | 335.0 |
| HSP6DE | 6 x 4-way | electric | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph | 11 | 335.0 |
| HSP8SE | 8 x 3-way | electric | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph | 11 | 370.0 |
| HSP8DE | 8 x 4-way | electric | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph | 11 | 370.0 |
Note: All models are suitable for operation at 50 Hz and 60 Hz. 60 Hz models deliver approximately 15-20% higher flow rate.
Dimension
Dimensions (mm)
| Model number | A | B | C |
|---|---|---|---|
| HSP4SM | 1000 | 910 | 610 |
| HSP4DM | 1000 | 910 | 610 |
| HSP4SE | 1000 | 910 | 610 |
| HSP4DE | 1000 | 910 | 610 |
| HSP6SE | 1250 | 1060 | 800 |
| HSP6DE | 1250 | 1060 | 800 |
| HSP8SE | 1250 | 1060 | 800 |
| HSP8DE | 1250 | 1060 | 800 |
