HTN Range - Imperial | Hi-Force | Bolt Tensioners | HES
Hi-Force product

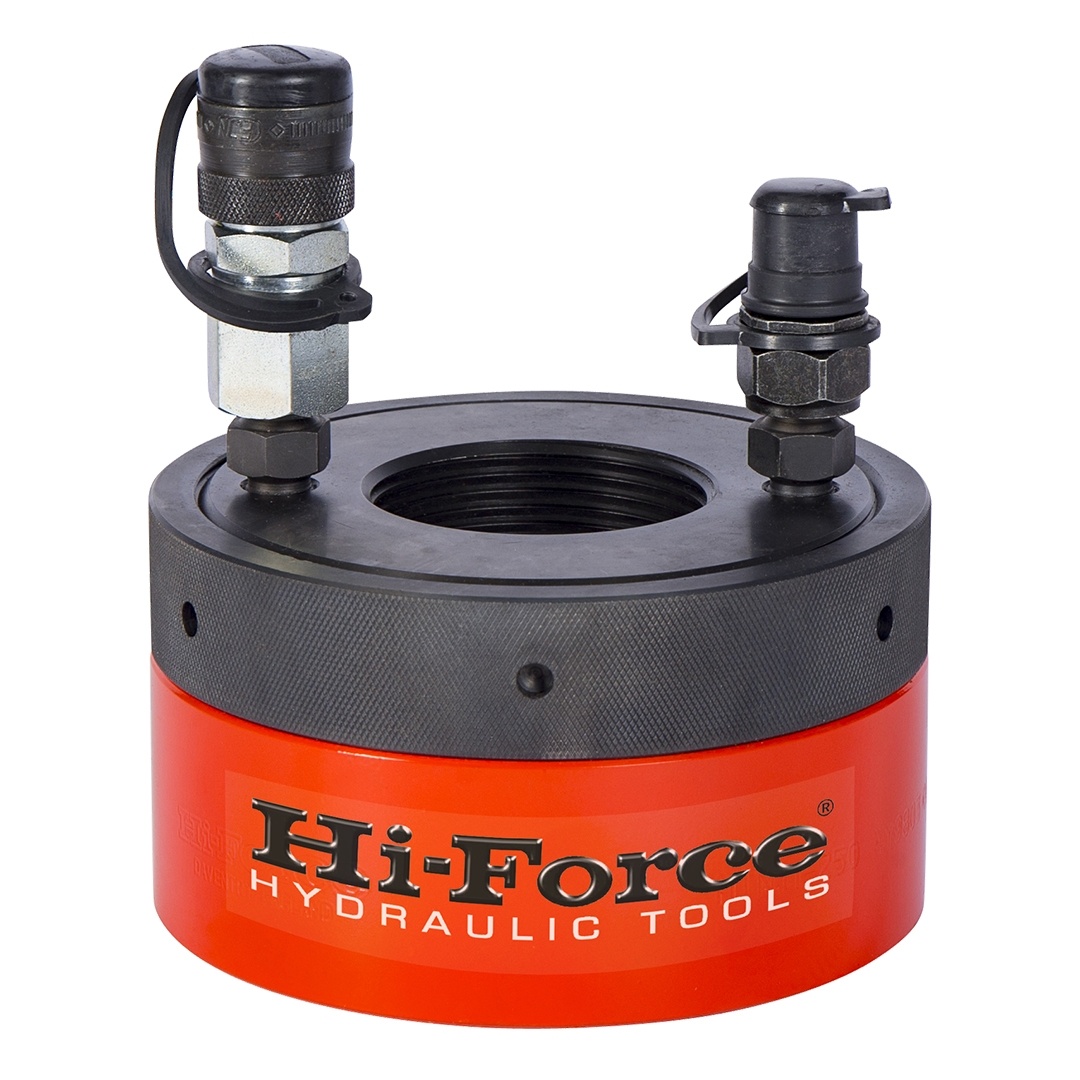

HTN Range - Imperial

Hydraulic Tensioner Nuts - Imperial

  • Single acting design with integral load holding lock nut
  • High grade alloy steel construction
  • Nitrocarburised piston
  • Visible maximum piston stroke indicator
Enquire now

Product Overview

The Hi-Force HTN range of imperial top collar hydraulic nuts is specifically designed and manufactured for applications where regular, periodic opening of the joint, for inspection and maintenance purposes is required. Unlike conventional hydraulic bolt tensioners, Hi-Force HTN series hydraulic nuts are designed to permanently replace standard hexagon nuts, on one side of the bolted joint. Initially the bolt tension or elongation is applied hydraulically and once achieved, it is permanently retained via the integral mechanical load retaining collar.

Product resources

  • Capacities from 198 to 1911 kN
  • Bolt sizes from 1" to 4" diameter
  • Working pressure 1500 bar

Technical specifications

Model NumberBolt SizeCapacityEffective area cm2Stroke mmWeight kgTommy Bar
kNtonnes
HTN1-1001" - 8 UN19820.213.251.9TTB06
HTN2-1121 1/8" - 8 UN21622.114.452.0TTB06
HTN3-1251 1/4" - 8 UN25325.816.952.4TTB06
HTN4-1371 3/8" - 8 UN30431.220.452.7TTB06
HTN5-1501 1/2" - 8 UN34435.122.962.9TTB06
HTN6-1621 5/8" - 8 UN39840.526.563.5TTB06
HTN7-1751 3/4" - 8 UN47548.431.764.0TTB06
HTN8-1871 7/8" - 8 UN50151.133.464.2TTB06
HTN9-2002" - 8 UN563457.537.664.9TTB06
HTN10-2252 1/4" - 8 UN74676.149.886.4TTB06
HTN11-2502 1/2" - 8 UN90592.360.388.0TTB06
HTN12-2752 3/4" - 8 UN1000101.966.788.8TTB08
HTN13-3003" - 8 UN1203122.780.2810.6TTB08
HTN14-3253 1/4" - 8 UN1414144.194.31012.9TTB08
HTN15-3503 1/2" - 8 UN1605163.61071016.2TTB10
HTN16-3753 3/4" - 8 UN1705173.8113.61018.3TTB10
HTN17-4004" - 8 UN1911194.9127.41021.9TTB10

Note: Tommy bars are not included. Hi-Force recommends one tommy bar for every four tensioners.

Dimension

Hi force dim draw bolt tensioners HTN imperial

Dimensions (mm)

Model Number
ABCD
HTN1-100725518132
HTN2-112755518132
HTN3-125825721134
HTN4-137885722135
HTN5-150935821135
HTN6-1621006223142
HTN7-1751066424141
HTN8-1871106425142
HTN9-2001176732145
HTN10-2251287428152
HTN11-2501417729155
HTN12-2751507830156
HTN13-3001628131159
HTN14-3251748735165
HTN15-3501879537173
HTN16-37519410239179
HTN17-40020511041188
