Product Overview

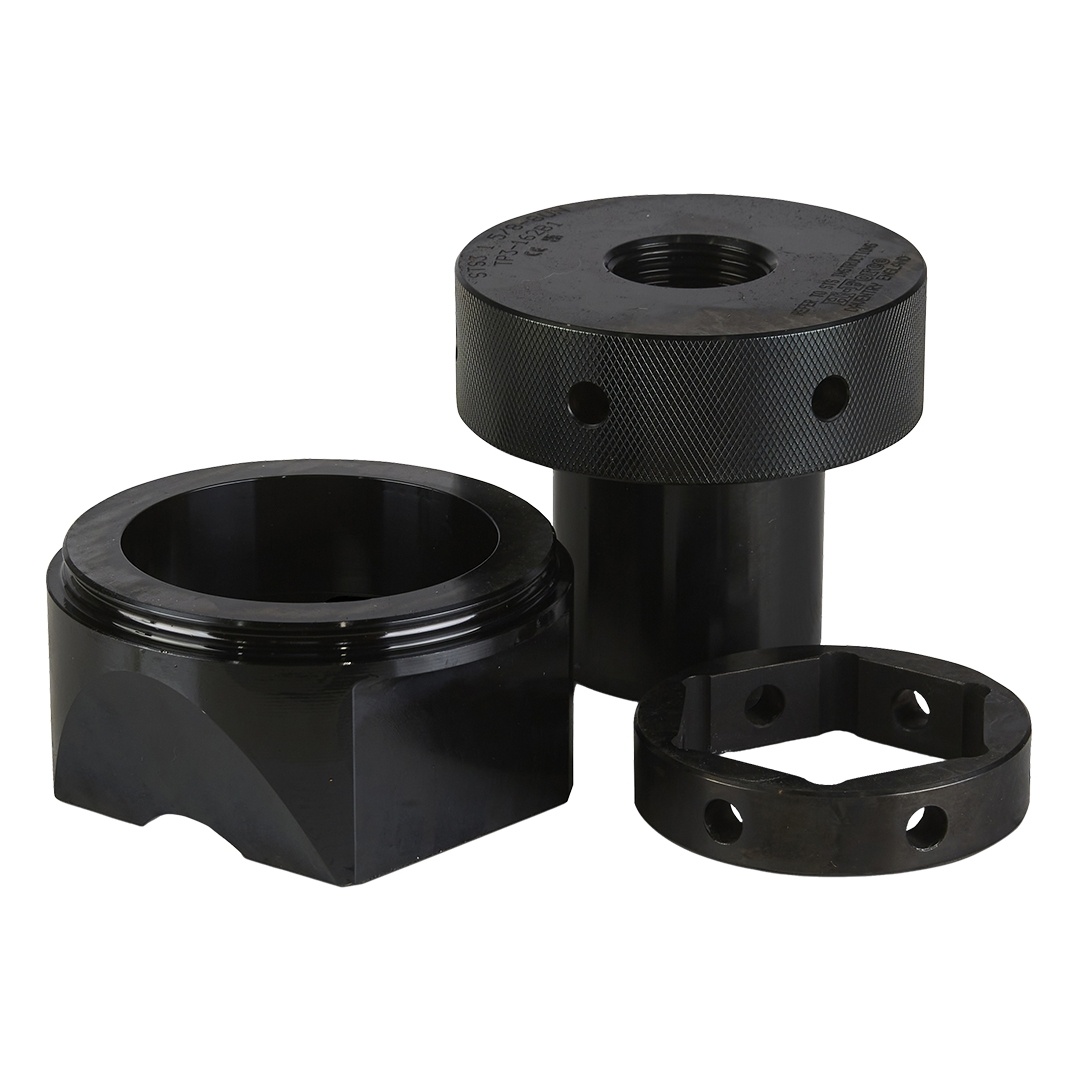

Similar to the imperial tensioner components, the Hi-Force metric spring return hydraulic bolt tensioners are also modular in design and can be adapted to another thread size, within the tensioner range, by purchasing individual components or a simple conversion kit. By changing the required components, Hi-Force SBT spring return bolt tensioners offer the user even greater versatility at an economical cost.
- Use with SBT Metric Spring Return Tensioners
- Modular design
- Offers greater versatility
Product resources
Technical specifications
| Complete Tensioner | Individual components | D & E | |||||
|---|---|---|---|---|---|---|---|
| Model No. | Bolt Thread | A Load cell | B Tommy bar | C Bridge | D Threaded puller | E Rotating socket | Complete conversion kit |
| For tensioner range SBT2: | |||||||
| SBT2-M30B1 | M30 | SBT2-LC | TTB08 | STS2-B1 | TPS2-M30B1 | RS2-46B1 | CKS2-M30B1 |
| SBT2-M33B1 | M33 | SBT2-LC | TTB08 | STS2-B1 | TPS2-M33B1 | RS2-51B1 | CKS2-M33B1 |
| SBT2-M36B1 | M36 | SBT2-LC | TTB08 | STS2-B1 | TPS2-M36B1 | RS2-56B1 | CKS2-M36B1 |
| SBT2-M39B1 | M39 | SBT2-LC | TTB08 | STS2-B1 | TPS2-M39B1 | RS2-60B1 | CKS2-M39B1 |
| For tensioner range SBT3: | |||||||
| SBT3-M42B1 | M42 | SBT3-LC | TTB10 | STS3-B1 | TPS3-M42B1 | RS3-65B1 | CKS3-M42B1 |
| SBT3-M45B1 | M45 | SBT3-LC | TTB10 | STS3-B1 | TPS3-M45B1 | RS3-70B1 | CKS3-M45B1 |
| SBT3-M48B1 | M48 | SBT3-LC | TTB10 | STS3-B1 | TPS3-M48B1 | RS3-75B1 | CKS3-M48B1 |
| SBT3-M45B2 | M45 | SBT3-LC | TTB10 | STS3-B2 | TPS3-M45B2 | RS3-70B2 | CKS3-M45B2 |
| SBT3-M48B2 | M48 | SBT3-LC | TTB10 | STS3-B2 | TPS3-M48B2 | RS3-75B2 | CKS3-M48B2 |
| SBT3-M52B2 | M52 | SBT3-LC | TTB10 | STS3-B2 | TPS3-M52B2 | RS3-80B2 | CKS3-M52B2 |
| For tensioner range SBT4: | |||||||
| SBT4-M48B1 | M48 | SBT4-LC | TTB10 | STS4-B1 | TPS4-M48B1 | RS4-75B1 | CKS4-M48B1 |
| SBT4-M52B1 | M52 | SBT4-LC | TTB10 | STS4-B1 | TPS4-M52B1 | RS4-80B1 | CKS4-M52B1 |
| SBT4-M52B2 | M52 | SBT4-LC | TTB10 | STS4-B2 | TPS4-M52B2 | RS4-80B2 | CKS4-M52B2 |
| SBT4-M56B2 | M56 | SBT4-LC | TTB10 | STS4-B2 | TPS4-M56B2 | RS4-85B2 | CKS4-M56B2 |
| SBT4-M60B2 | M60 | SBT4-LC | TTB10 | STS4-B2 | TPS4-M60B2 | RS4-90B2 | CKS4-M60B2 |
| SBT4-M64B2 | M64 | SBT4-LC | TTB10 | STS4-B2 | TPS4-M64B2 | RS4-95B2 | CKS4-M64B2 |
| For tensioner range SBT5: | |||||||
| SBT5-M64B1 | M64 | SBT5-LC | TTB14 | STS5-B1 | TPS5-M64B1 | RS5-95B1 | CKS5-M64B1 |
| SBT5-M68B1 | M68 | SBT5-LC | TTB14 | STS5-B1 | TPS5-M68B1 | RS5-100B1 | CKS5-M68B1 |
| SBT5-M72B1 | M72 | SBT5-LC | TTB14 | STS5-B1 | TPS5-M72B1 | RS5-105B1 | CKS5-M72B1 |
| SBT5-M76B1 | M76 | SBT5-LC | TTB14 | STS5-B1 | TPS5-M76B1 | RS5-110B1 | CKS5-M76B1 |
| For tensioner range SBT6: | |||||||
| SBT6-M76B1 | M76 | SBT6-LC | TTB14 | STS6-B1 | TPS6-M76B1 | RS6-110B1 | CKS6-M76B1 |
| SBT6-M80B1 | M80 | SBT6-LC | TTB14 | STS6-B1 | TPS6-M80B1 | RS6-115B1 | CKS6-M80B1 |
| SBT6-M85B1 | M85 | SBT6-LC | TTB14 | STS6-B1 | TPS6-M85B1 | RS6-120B1 | CKS6-M85B1 |
| SBT6-M90B1 | M90 | SBT6-LC | TTB14 | STS6-B1 | TPS6-M90B1 | RS6-130B1 | CKS6-M90B1 |
| SBT6-M95B3 | M95 | SBT6-LC | TTB14 | STS6-B3 | TPS6-M95B3 | RS6-135B3 | CKS6-M95B3 |
| SBT6-M100B3 | M100 | SBT6-LC | TTB14 | STS6-B3 | TPS6-M100B3 | RS6-146B3 | CKS6-M100B3 |
Note: Remember to check bridge compatibility for SBT3, SBT4 and SBT6 models when ordering components.
