Product Overview

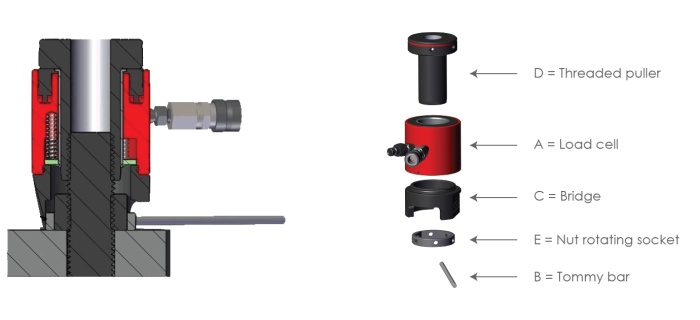

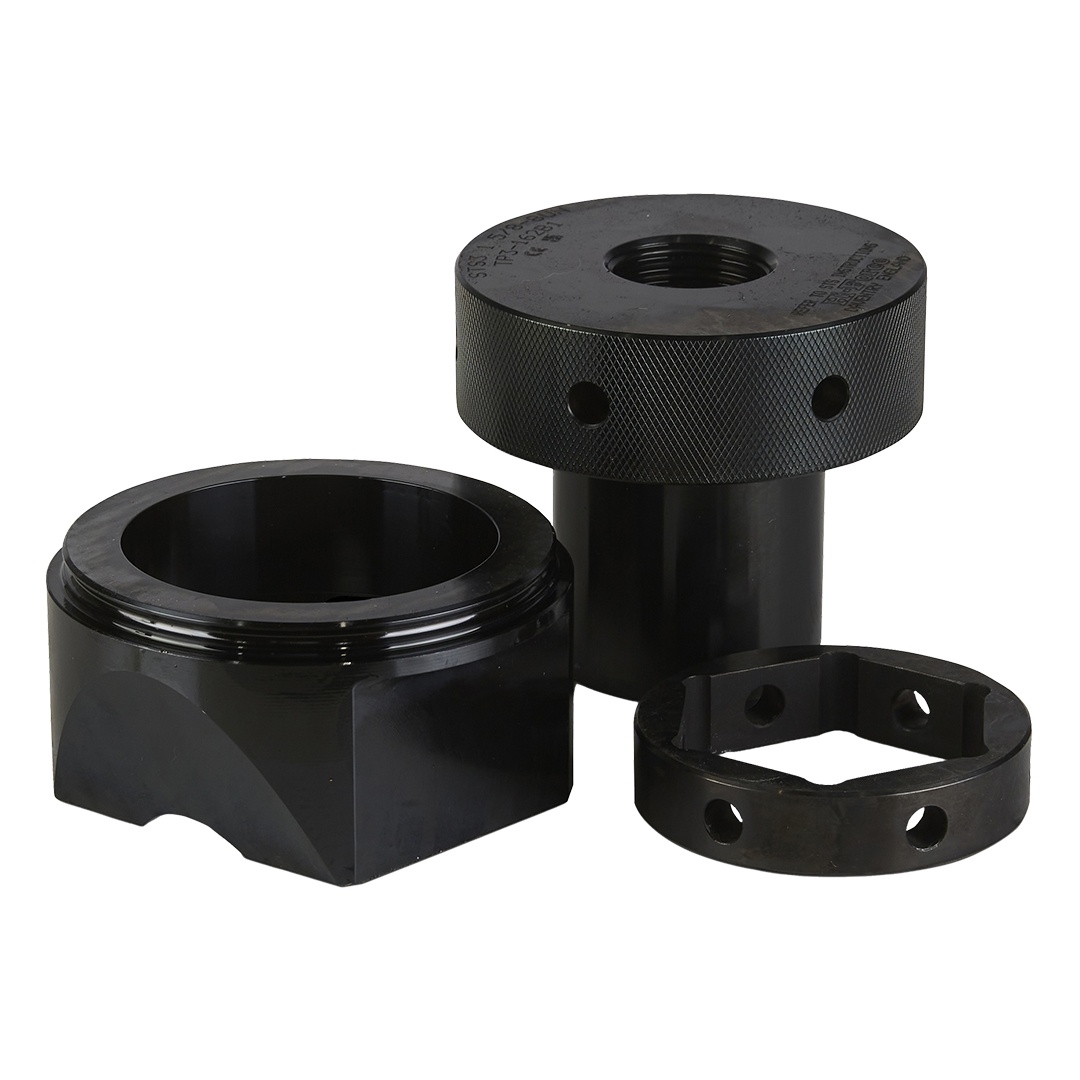

The modular design of Hi-Force STS series topside hydraulic bolt tensioners enables the user to adapt an existing STS tensioner assembly to another thread size, within the tensioner range, by purchasing individual components or a simple conversion kit. By changing the required components, Hi-Force STS bolt tensioners offer the user even greater versatility at an economical cost.
Unthreaded pullers can be provided upon request for customers who prefer to customise their own non-standard threads to suit specific tensioning needs.
- For use with STS Imperial Tensioners
- Modular design for greater flexibility
- Versatile cost saving option
Product resources
Technical specifications
| Complete Tensioner | Individual components | D & E | |||||
|---|---|---|---|---|---|---|---|
| Model Number | Bolt Thread | A Load cell | B Tommy bar | C Bridge | D Threaded puller | E Rotating socket | Complete conversion kit |
| For tensioner range STS1: | |||||||
| STS1-075B1 | 3/4" | STS1-LC | TTB06 | STS1-B1 | TP1-075B1 | RS1-32B1 | CK1-075B1 |
| STS1-087B1 | 7/8" | STS1-LC | TTB06 | STS1-B1 | TP1-087B1 | RS1-37B1 | CK1-087B1 |
| STS1-100B2 | 1" | STS1-LC | TTB06 | STS1-B2 | TP1-100B2 | RS1-41B2 | CK1-100B2 |
| STS1-112B2 | 1 1/8" | STS1-LC | TTB06 | STS1-B2 | TP1-112B2 | RS1-46B2 | CK1-112B2 |
| For tensioner range STS2: | |||||||
| STS2-125B1 | 1 1/4" | STS2-LC | TTB08 | STS2-B1 | TP2-125B1 | RS2-51B1 | CK2-125B1 |
| STS2-137B1 | 1 3/8" | STS2-LC | TTB08 | STS2-B1 | TP2-137B1 | RS2-56B1 | CK2-137B1 |
| STS2-150B1 | 1 1/2" | STS2-LC | TTB08 | STS2-B1 | TP2-150B1 | RS2-60B1 | CK2-150B1 |
| For tensioner range STS3: | |||||||
| STS3-162B1 | 1 5/8" | STS3-LC | TTB10 | STS3-B1 | TP3-162B1 | RS3-65B1 | CK3-162B1 |
| STS3-175B1 | 1 3/4" | STS3-LC | TTB10 | STS3-B1 | TP3-175B1 | RS3-70B1 | CK3-175B1 |
| STS3-187B1 | 1 7/8" | STS3-LC | TTB10 | STS3-B1 | TP3-187B1 | RS3-75B1 | CK3-187B1 |
| STS3-175B2 | 1 3/4" | STS3-LC | TTB10 | STS3-B2 | TP3-175B2 | RS3-70B2 | CK3-175B2 |
| STS3-187B2 | 1 7/8" | STS3-LC | TTB10 | STS3-B2 | TP3-200B2 | RS3-75B2 | CK3-187B2 |
| STS3-200B2 | 2" | STS3-LC | TTB10 | STS3-B2 | TP3-187B2 | RS3-80B2 | CK3-200B2 |
| For tensioner range STS4: | |||||||
| STS4-187B1 | 1 7/8" | STS4-LC | TTB10 | STS4-B1 | TP4-187B1 | RS4-75B1 | CK4-187B1 |
| STS4-200B1 | 2" | STS4-LC | TTB10 | STS4-B1 | TP4-200B1 | RS4-80B1 | CK4-200B1 |
| STS4-200B2 | 2" | STS4-LC | TTB10 | STS4-B2 | TP4-200B2 | RS4-80B2 | CK4-200B2 |
| STS4-225B2 | 2 1/4" | STS4-LC | TTB10 | STS4-B2 | TP4-225B2 | RS4-90B2 | CK4-225B2 |
| STS4-250B2 | 2 1/2" | STS4-LC | TTB10 | STS4-B2 | TP4-250B2 | RS4-98B2 | CK4-250B2 |
| For tensioner range STS5: | |||||||
| STS5-250B1 | 2 1/2" | STS5-LC | TTB14 | STS5-B1 | TP5-250B1 | RS5-100B1 | CK5-250B1 |
| STS5-275B1 | 2 3/4" | STS5-LC | TTB14 | STS5-B1 | TP5-275B1 | RS5-108B1 | CK5-275B1 |
| STS5-300B1 | 3" | STS5-LC | TTB14 | STS5-B1 | TP5-300B1 | RS5-118B1 | CK5-300B1 |
| For tensioner range STS6: | |||||||
| STS6-300B1 | 3" | STS6-LC | TTB14 | STS6-B1 | TP6-300B1 | RS6-118B1 | CK6-300B1 |
| STS6-325B1 | 3 1/4" | STS6-LC | TTB14 | STS6-B1 | TP6-325B1 | RS6-127B1 | CK6-325B1 |
| STS6-350B1 | 3 1/2" | STS6-LC | TTB14 | STS6-B1 | TP6-350B1 | RS6-137B1 | CK6-350B1 |
| STS6-375B3 | 3 3/4" | STS6-LC | TTB14 | STS6-B3 | TP6-375B3 | RS6-146B3 | CK6-375B3 |
| STS6-400B3 | 4" | STS6-LC | TTB14 | STS6-B3 | TP6-400B3 | RS6-156B3 | CK6-400B3 |
Note: Remember to check bridge compatibility for STS1, STS3, STS4 and STS6 models when ordering components.
