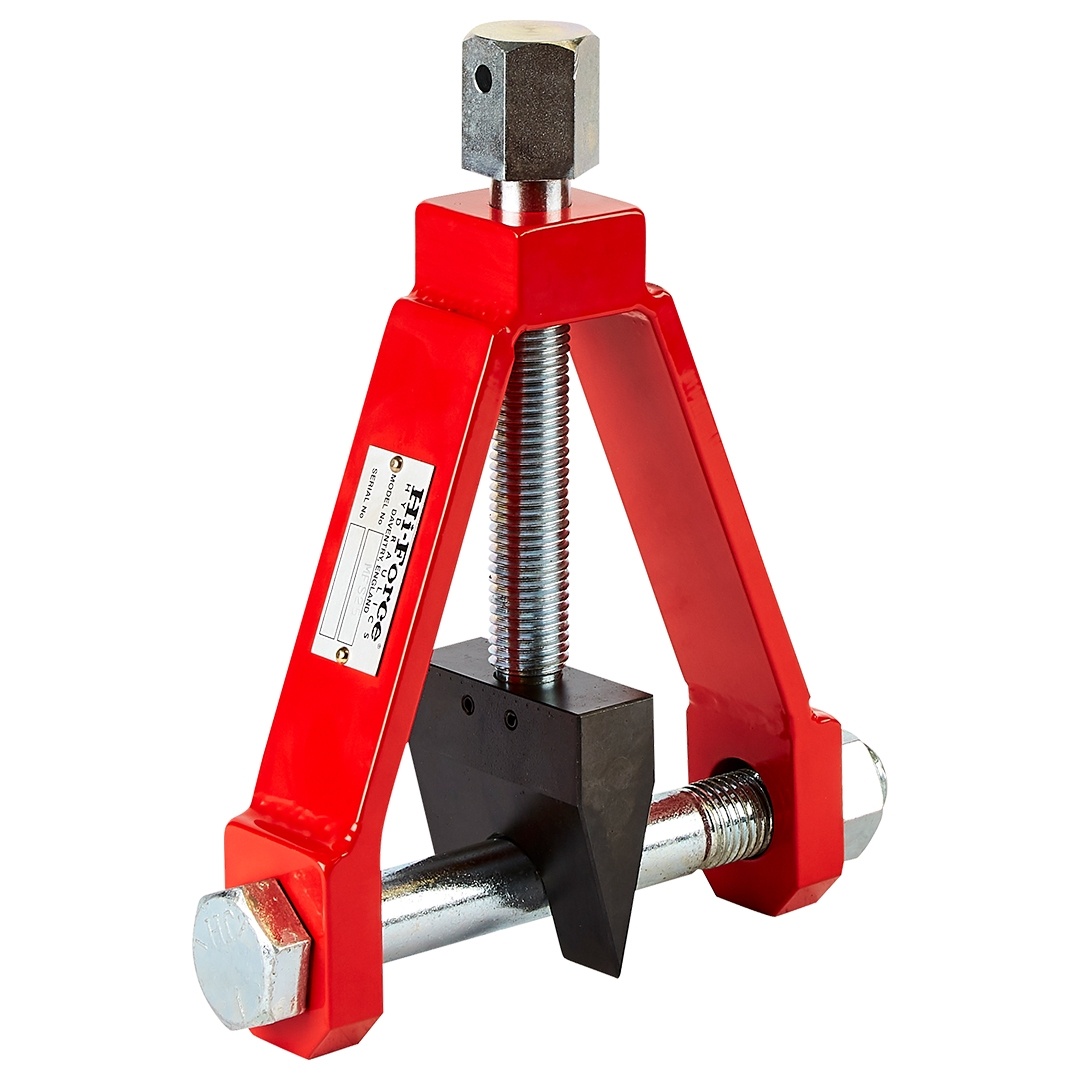

MFS Range

Mechanical Flange Spreaders

  • Manually operated mechanical feed screw design
  • Capable of opening flanges up to 2 x 95 mm thickness
  • High grade steel construction with high tensile cross bolt
  • Case hardened spreading wedge
Enquire now

Product Overview

The MFS range of mechanical flange spreaders comprises of 6 models, each offering a safe and economical way to open flanges without the risk of sparks. The threaded spindle can be operated using a standard spanner, allowing the user to apply a controlled force without damaging the flange. Due to the mechanical design of these flange spreaders, no external power source is needed and therefore, they can be used anywhere on-site.

  • Suitable for bolt diameters up to 31 mm
  • Maximum spread 231 mm
  • No external power source required

Technical specifications

Model NumberPin DiameterMin Flange Bolt Hole diameterMaximum flange thicknessWeight kg
mminchmminch
MFS16165/8"172 x 222 x 7/8"2.2
MFS19193/4"202 x 352 x 1 3/8"2.7
MFS22227/8"232 x 472 x 1 13/16"4.1
MFS25251"262 x 622 x 2 7/16"6.4
MFS28281 1/8"292 x 702 x 2 3/4"8.2
MFS31311 1/4"322 x 952 x 3 3/4"9.6

Dimension

Hi force dim draw flange spreaders MFS

Dimensions (mm)

Model Number
AB maxC minC maxDEF
MFS162528185232402570
MFS193050185254502595
MFS2230502473185030124
MFS2530852473535030155
MFS2830802753826040181
MFS3132842753856040231

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire

Related products

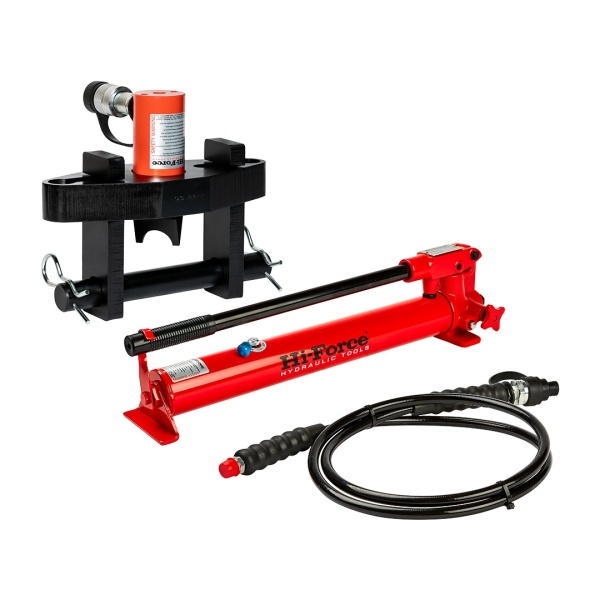

HFS Range

Hi force flang spreaders hfs hfs tk

Hydraulic Flange Spreader Kits

View

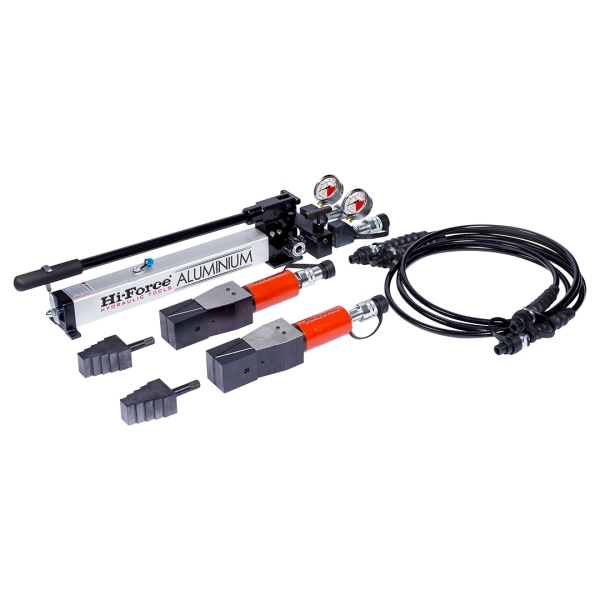

SJS and SJS-TK Range

Hi force flang spreaders sjs tk 002

Stepped Jaw Spreaders

View

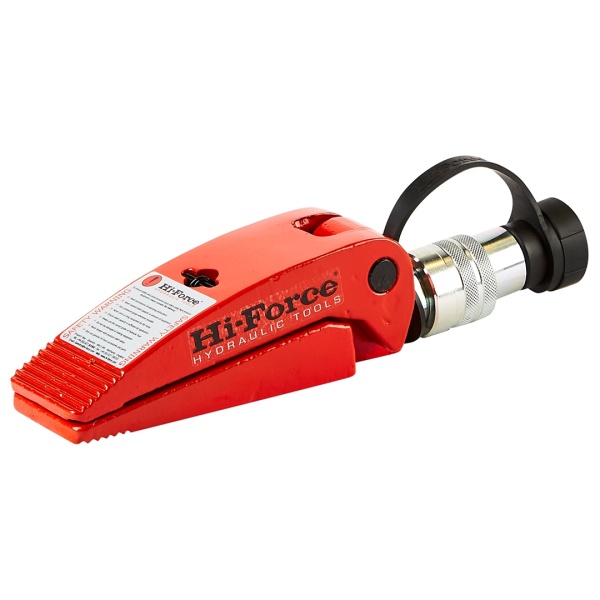

JS Range
