Product Overview

The Hi-Force SJS10 hydraulic spreader offers the ideal solution for spreading, wedging and prising operations in a wide variety of industrial applications. The compact, single acting, spring assisted return design of the SJS10 offers the user a powerful 13 tonnes of spreading capacity. Manufactured from high strength steel, the low height jaw tips can easily fit within an 8 mm gap and can provide a total spreading distance of 60 mm in 5 operations, using the step blocks provided with the tool.

  • Capacity 13 tonnes per spreader unit
  • Maximum spread 60 mm
  • Supplied with safety block & stepped blocks

Technical specifications

Model NumberCapacity TonnesStroke mmMin. Height mmMax. Spread mmOil Capacity cm3Weight kg
SJS101350860745.5
SJS10-M1350860747.5

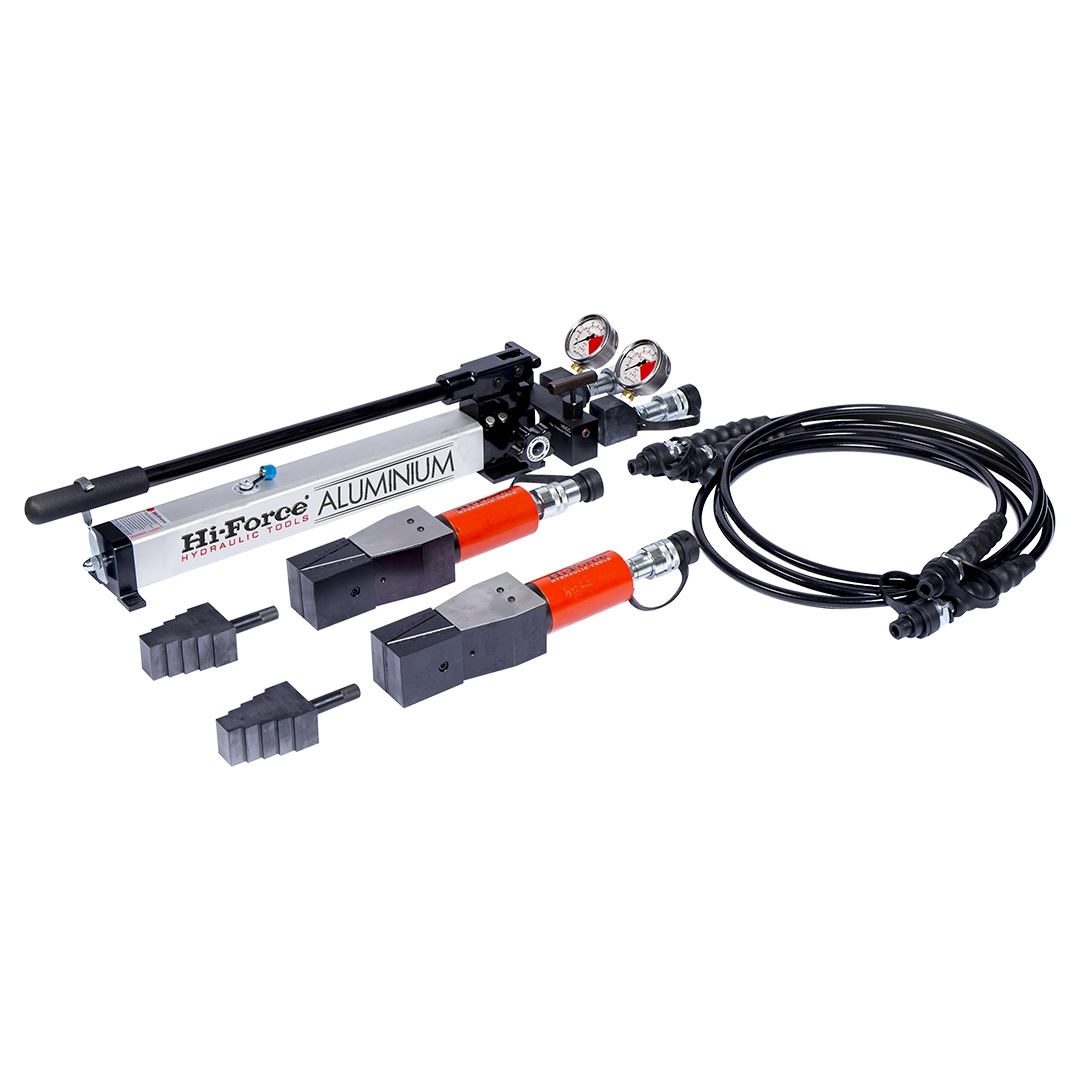

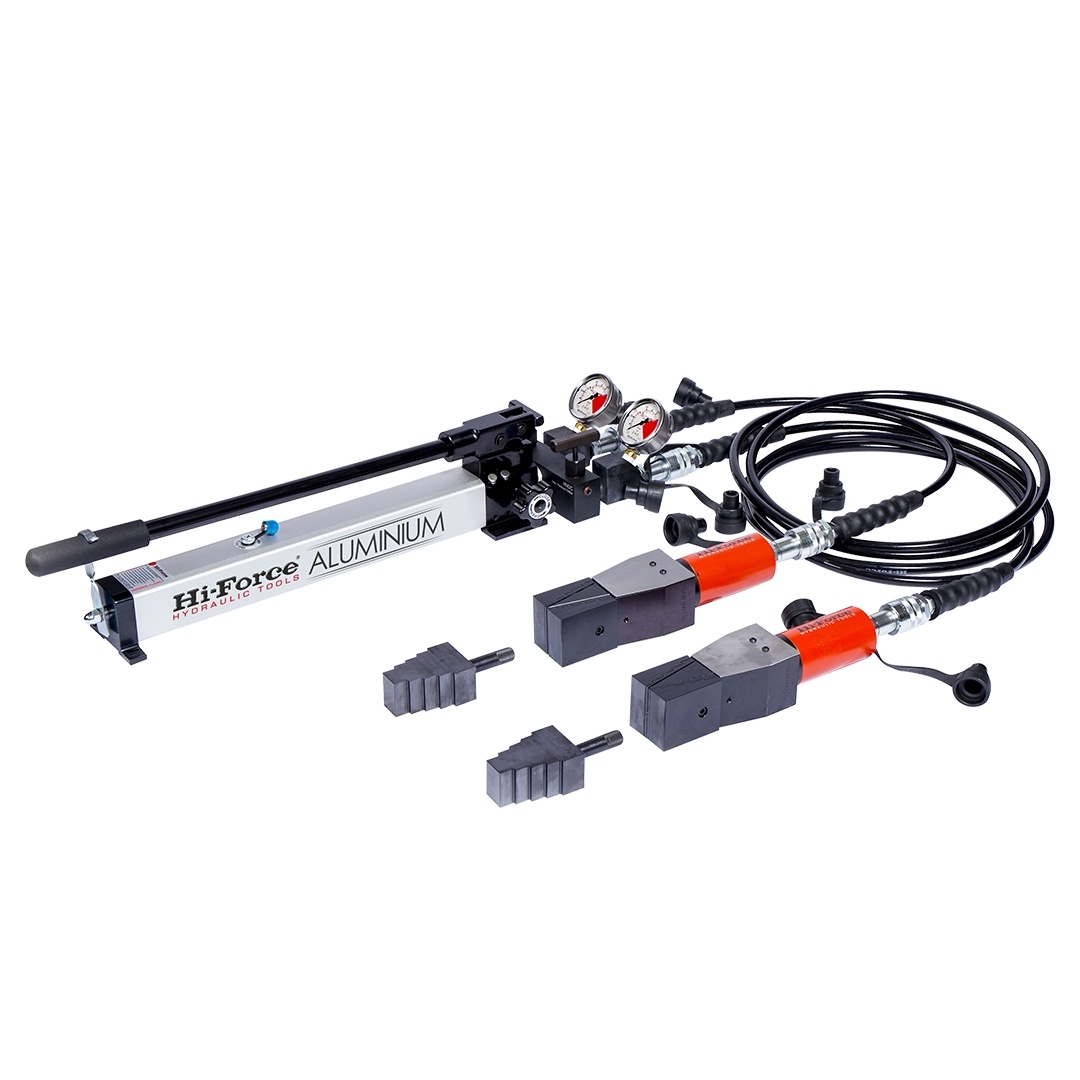

Twin Kit

Model NumberSpreadersPumpHosesManifoldGaugesGauge BlocksMetal BoxWeight kg
2 x1 x2 x1 x2 x2 x1 x
SJS10-TKSJS10HP212HC3CHM2CHG63GAGA1-25MSB434.5

Dimension

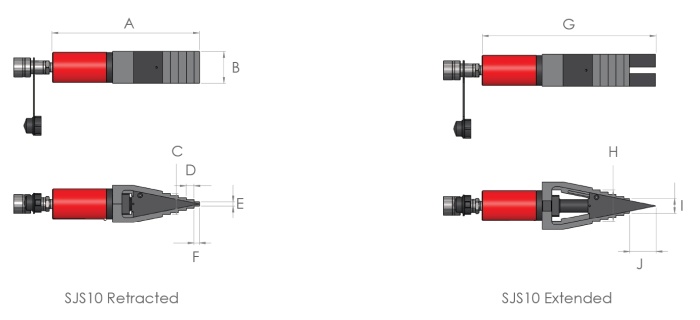

Hi force dim draw flange spreaders SJS

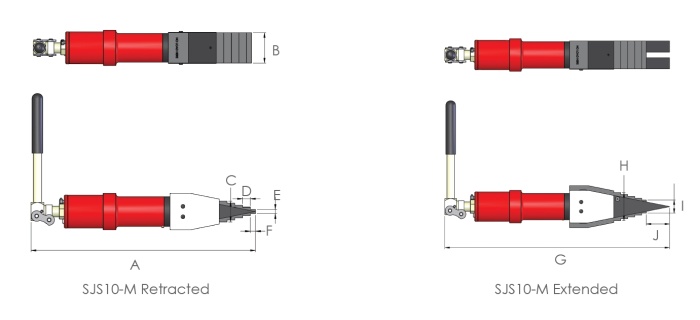

Hi force dim draw flange spreaders SJS M

Dimensions (mm)

Model Number
ABCDEFGHIJ
SJS10279604015810328602849
SJS10-M433604015810483602849
