Torque Pump Accessories

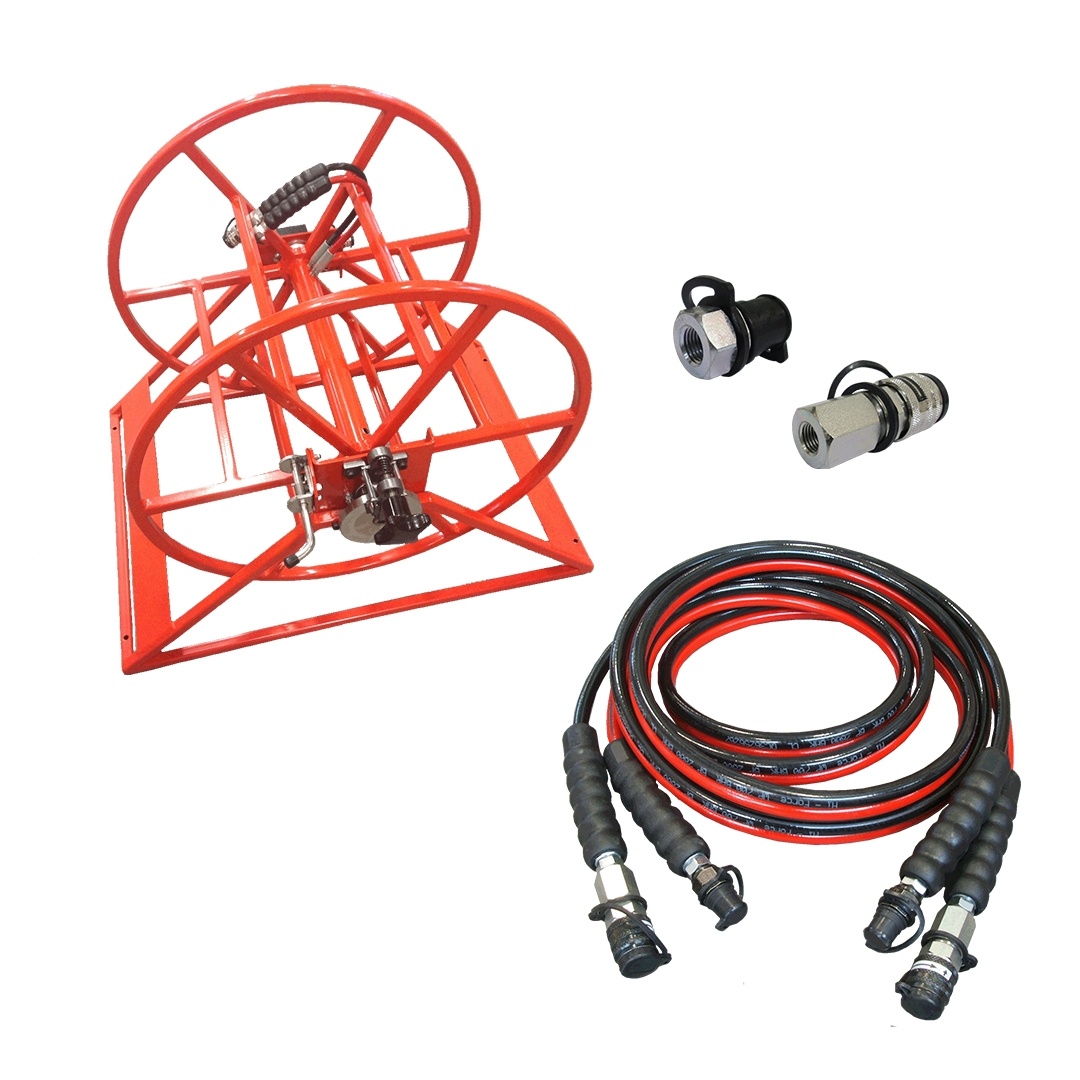

Torque Wrench Hoses, Couplers and Hose Reel
- Disc break for speed control
- Latching mechanism for positive locking
- Central oil feed for hose deployment whilst connected
- Fixing holes at the base of hose reel frame
Product Overview
Hi-Force torque wrench hydraulic hoses are compatible for use with all Hi-Force hydraulic torque wrenches and torque pumps up to a maximum of 700 bar working pressure. The torque wrench hoses are available as bonded twin hoses with quick connect couplings on both ends. Standard hose lengths from 4 to 100 metres and alternative lengths are available on request.
Product resources
Technical specifications
| Model Number | Description | Weight kg |
|---|---|---|
| HTWH4 | Bonded twin hoses with quick connect couplers, length 4 metres | 3.5 |
| HTWH5 | Bonded twin hoses with quick connect couplers, length 5 metres | 3.8 |
| HTWH6 | Bonded twin hoses with quick connect couplers, length 6 metres | 4.6 |
| HTWH8 | Bonded twin hoses with quick connect couplers, length 8 metres | 5.3 |
| HTWH10 | Bonded twin hoses with quick connect couplers, length 10 metres | 6.8 |
| HTWH50 | Bonded twin hoses with quick connect couplers, length 50 metres | 31.2 |
| HTWH75 | Bonded twin hoses with quick connect couplers, length 75 metres | 46.6 |
| HTWH100 | Bonded twin hoses with quick connect couplers, length 100 metres | 61.7 |
| CF4F | Female half coupler, 1/4" NPT Female | 0.3 |
| CM4F | Male half coupler, 1/4" NPT Female |
Dimension
Dimensions (mm)
| Model number | A | B | C | D | E |
|---|---|---|---|---|---|
| HTWR1 | 771 | 411 | 900 | 760 | 610 |
