IP Range
Pneumatic Impact Wrenches
- Lightweight and compact design impact wrenches offering durability and reliability during operation
- Features twin hammer and 3-jaw hammer mechanism which offers increased power and balanced impact during bolt tightening
- Quiet operation and low vibration levels for reduced operator fatigue
- Ideal for use in applications in the automotive, construction, railways and heavy engineering industries as well as in tyre and mechanical workshops
Product Overview
The IP range of heavy duty pneumatic impact wrenches is designed for high volume production, heavy maintenance and construction work. With a choice of four models in square drive sizes from ½” up to 1½”, the IP impact wrenches offer a quiet operation with low vibration levels and increased torque outputs up to 5933 Nm.
- Industrial heavy duty design
- Square drive sizes from ½” to 1 ½”
- Torque capacities up to 5933 Nm
Product resources
Technical specifications
| Model Number | Square Drive Size | Bolt Range | Free Speed | Maximum Torque | Working pressure | Air flow (cfm) | Air Inlet Type | Vibration level (m/s2) | Sound pressure level dB(a) | Weight kg | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric | Imperial | R.P.M. | Nm | lbf.ft | bar | psi | |||||||
| Pistol grip versions | |||||||||||||
| IP650 | 1/2" | M10-M16 | 3/8"-5/8" | 5600 | 650 | 480 | 6.3 | 92 | 18 | 1/4" BSP | 5.0 | 97 | 2.3 |

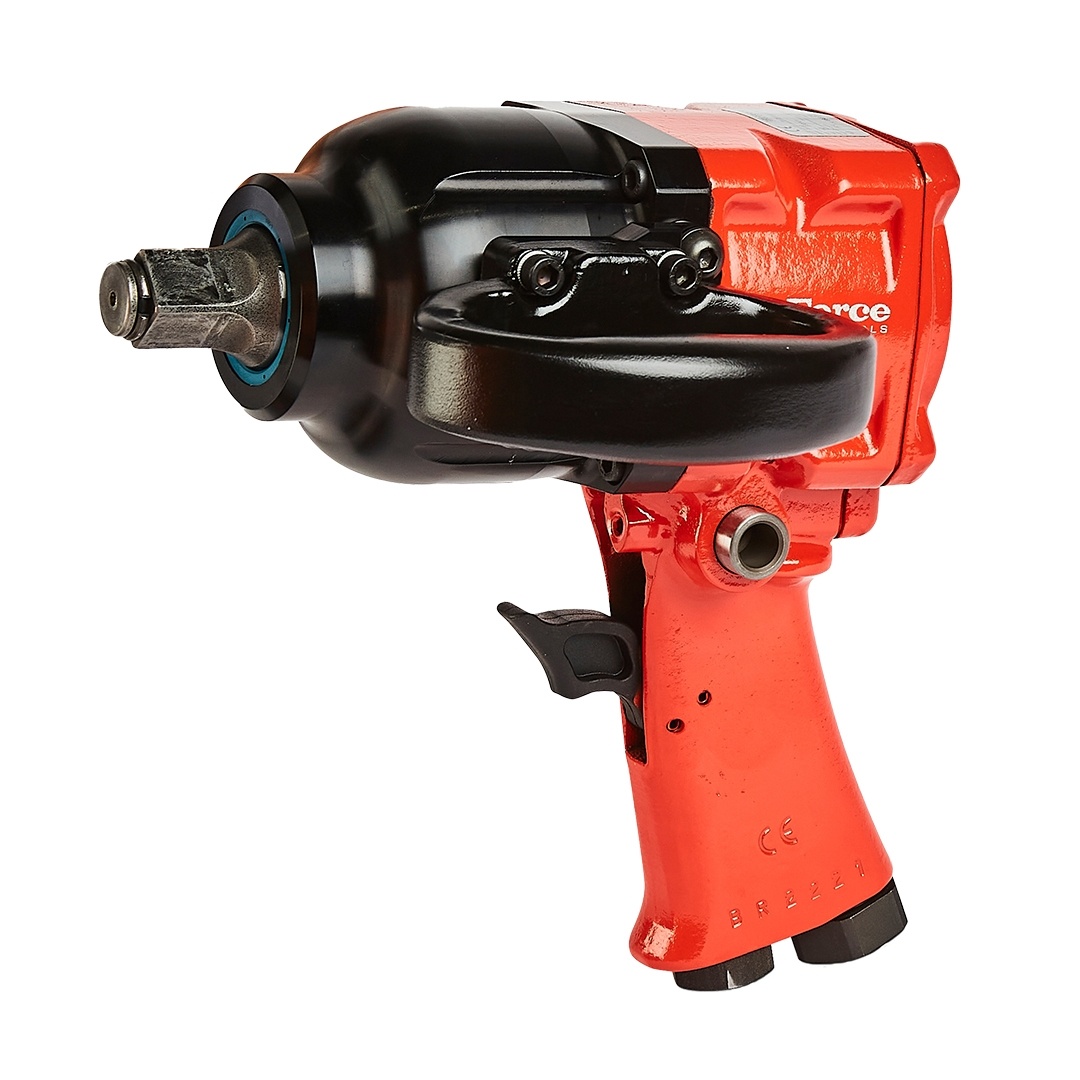

| IP1700 | 3/4" | M14-M24 | 9/16"-1" | 5400 | 1700 | 1254 | 6.3 | 92 | 32 | 1/2" BSP | 9.4 | 102 | 5.9 |
| IP1700X | 3/4" | M14-M24 | 9/16"-1" | 5400 | 1700 | 1254 | 6.3 | 92 | 32 | 1/2" BSP | 9.4 | 102 | 6.6 |
| Back handle grip versions | |||||||||||||
| IP3200 | 1" | M18-M39 | 3/4"-1 1/2" | 3200 | 3185 | 2350 | 6.3 | 92 | 53 | 1/2" BSP | 4.9 | 101 | 9.5 |

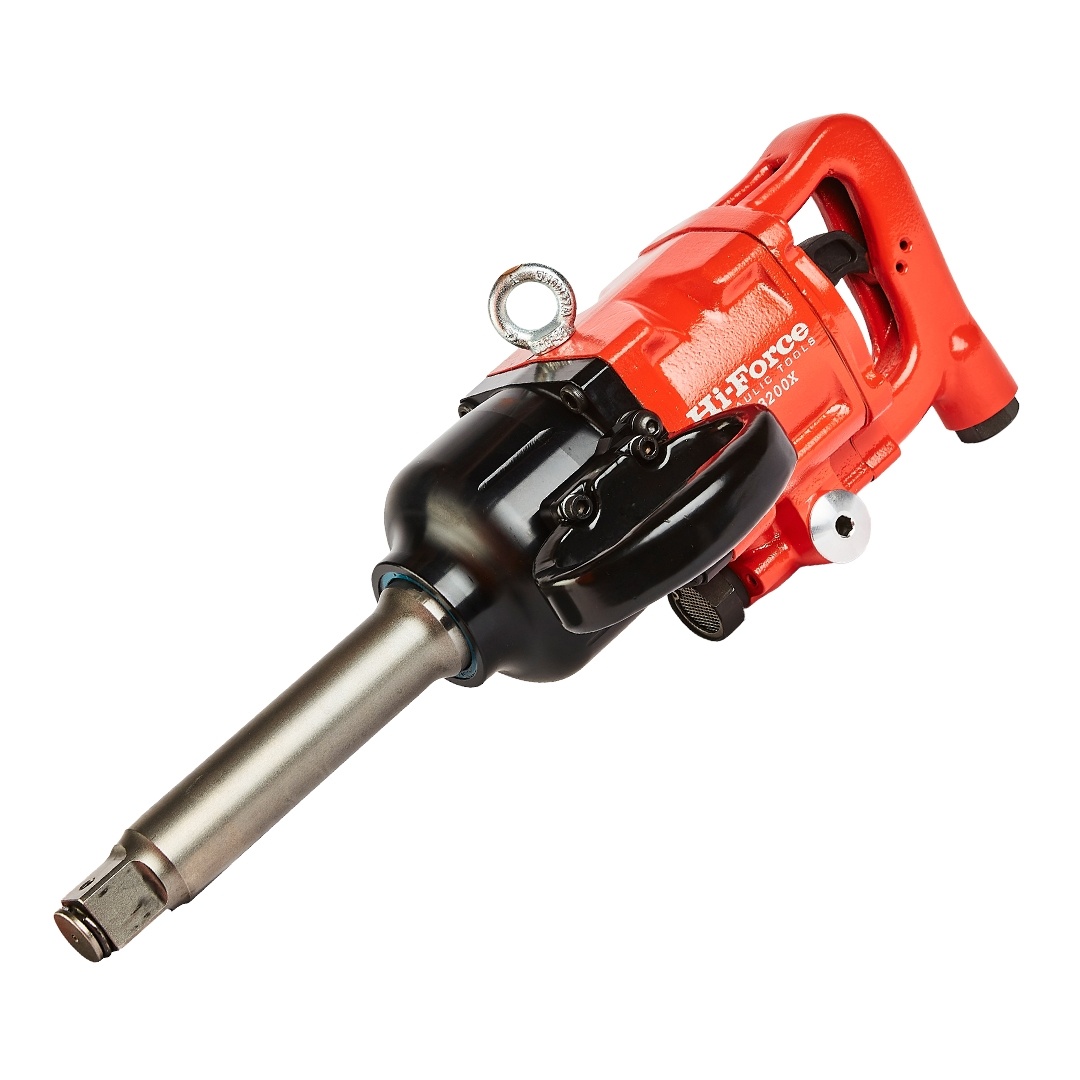

| IP3200X | 1" | M18-M39 | 3/4"-1 1/2" | 3200 | 3185 | 2350 | 6.3 | 92 | 53 | 1/2" BSP | 4.9 | 101 | 10.6 |
| IP5950 | 1 1/2" | M24-M56 | 1"-2" | 3200 | 5933 | 4376 | 6.3 | 92 | 63 | 1/2" BSP | 12.3 | 104 | 14.5 |
Note: Models with suffix 'X' are fitted with extended anvil
Extended Anvil
| Model Number | Increase in anvil length (mm) |
|---|---|
| IP1700X | 118.9 |
| IP3200X | 137 |

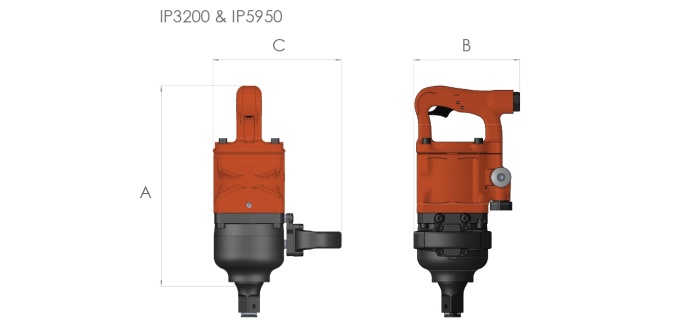

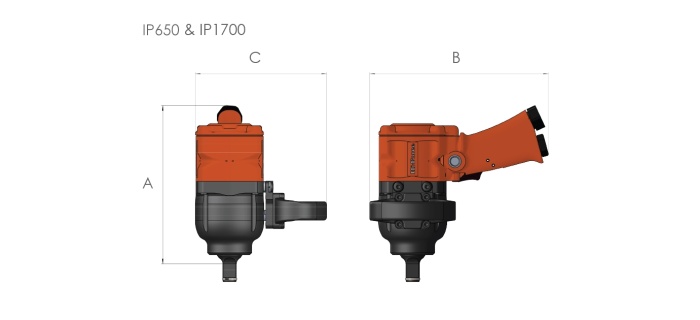

Dimension
Dimensions (mm)
| Model Number | ||||
|---|---|---|---|---|
| A | B | C | C Handle removed | |
| IP650 | 176 | 183 | 62 | No Handle |
| IP1700 | 221 | 250 | 184 | 96 |
| IP1700X | 221 | 250 | 184 | 96 |
| IP3200 | 310 | 165 | 199 | 112 |
| IP3200X | 310 | 165 | 199 | 112 |
| IP5950 | 371 | 166 | 213 | 124 |
