TWP Range

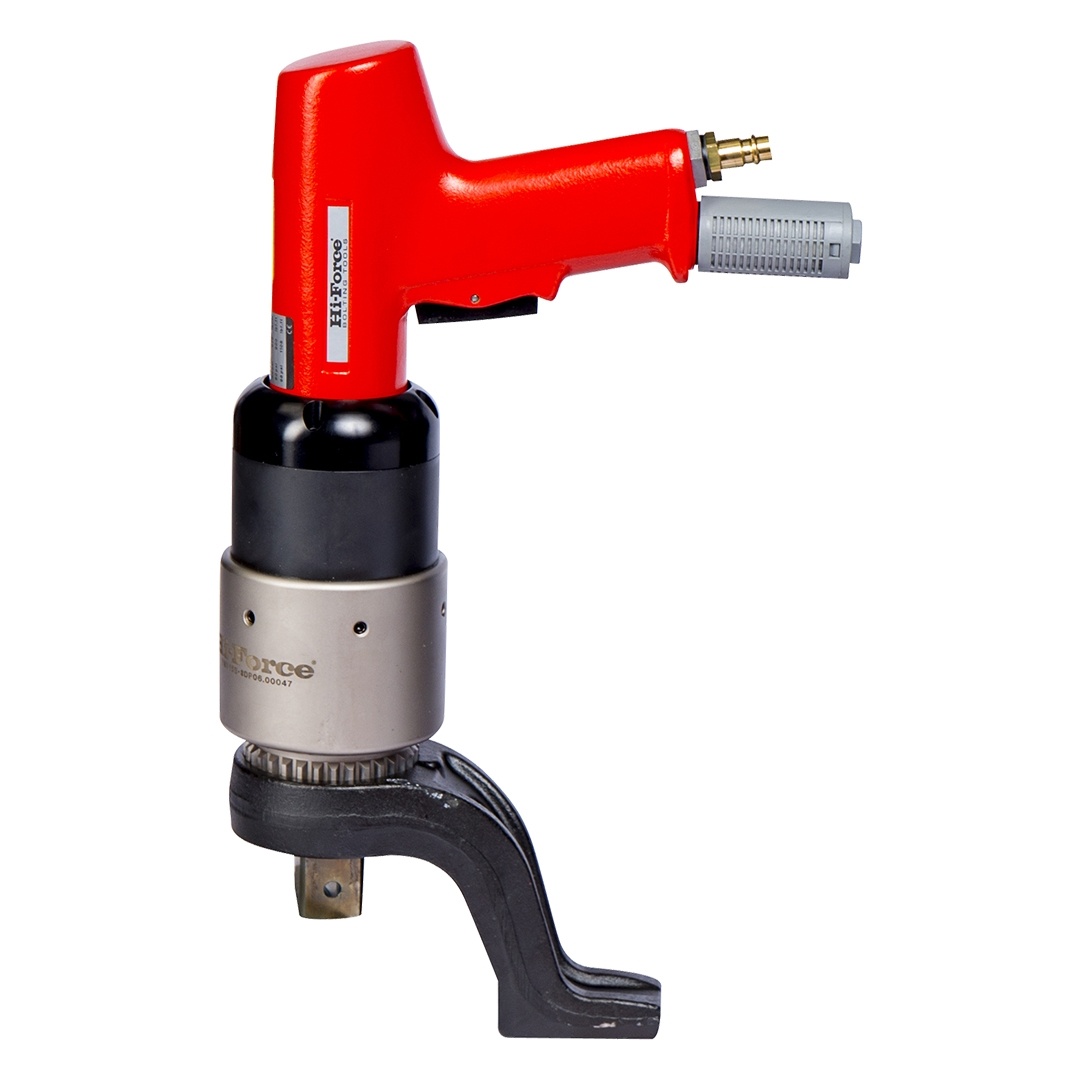

Pistol Grip Pneumatic Torque Multipliers
- Slimline gearbox allows excellent access
- Sensitive trigger control allows for easy reaction arm positioning
- Two speed models available on request

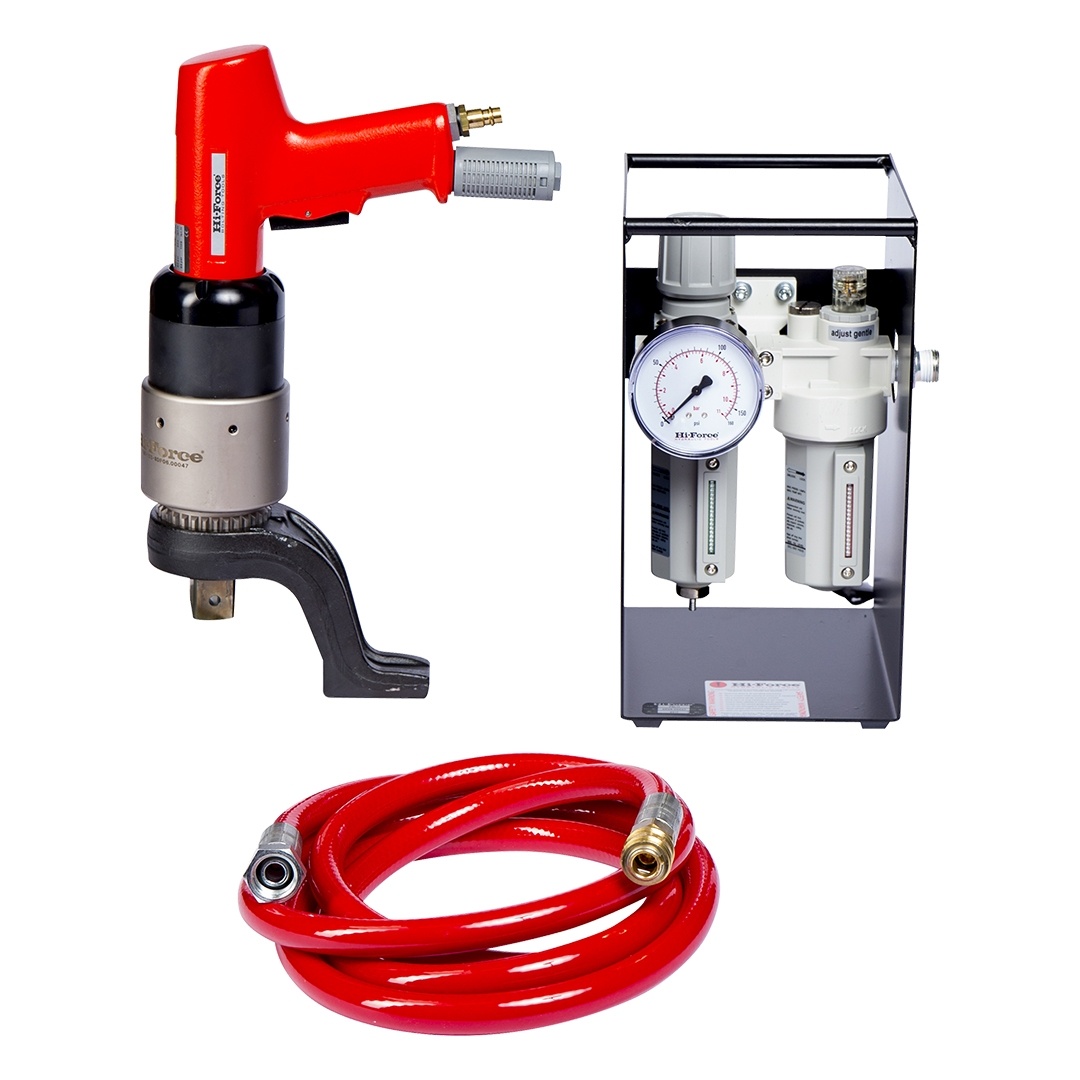

- Supplied complete with FRL filter, regulator and lubricator unit including class 1.0 air inlet pressure gauge and connecting hose
Product Overview
The TWP pistol grip, pneumatic torque multiplier range is designed to provide smooth, controllable bolt tightening operations, without impacting or pulsing. Offering a repeatable torque accuracy of +/-5%, this low noise, ultra lightweight range of tools, reduces operator fatigue, increases safety and ensures fast, consistently accurate, tightening of bolted components.
- Torque capacities up to 6000 Nm
- Repeatable accuracy of +/- 5%
- Lightweight and durable construction
Product resources
Technical specifications
| Model Number | Torque Capacity * | Square Drive Size | R.P.M. at Max Pressure | Weight kg | |
|---|---|---|---|---|---|
| Nm | lbf.ft | ||||
| TWP09S | 200-900 | 150-670 | 3/4" | 24 | 3.2 |
| TWP15S | 300-1500 | 220-1110 | 1" | 12 | 4.7 |
| TWP22S | 500-2200 | 370-1620 | 1" | 7 | 5.1 |
| TWP32S | 800-3200 | 590-2360 | 1" | 4 | 5.8 |
| TWP40S | 850-4200 | 620-3100 | 1" | 4 | 5.8 |
| TWP60S | 1200-6000 | 880-4400 | 1 1/2" | 4 | 7.7 |
(*) Minimum torque value at 1.5 bar, maximum torque value at 8 bar airline pressure. Weight is without reaction arm.
Dimension
Dimensions (mm)
| Model number | A | B | C | D | E |
|---|---|---|---|---|---|
| TWP09S | 328 | 80 | 123.5 | 95 | 96 |
| TWP15S | 343 | 88 | 172.5 | 133 | 110 |
| TWP22S | 360 | 88 | 172.5 | 133 | 110 |
| TWP32S | 383 | 88 | 172.5 | 133 | 110 |
| TWP40S | 383 | 88 | 172.5 | 133 | 110 |
| TWP60S | 400 | 102 | 246 | 194 | 148 |
