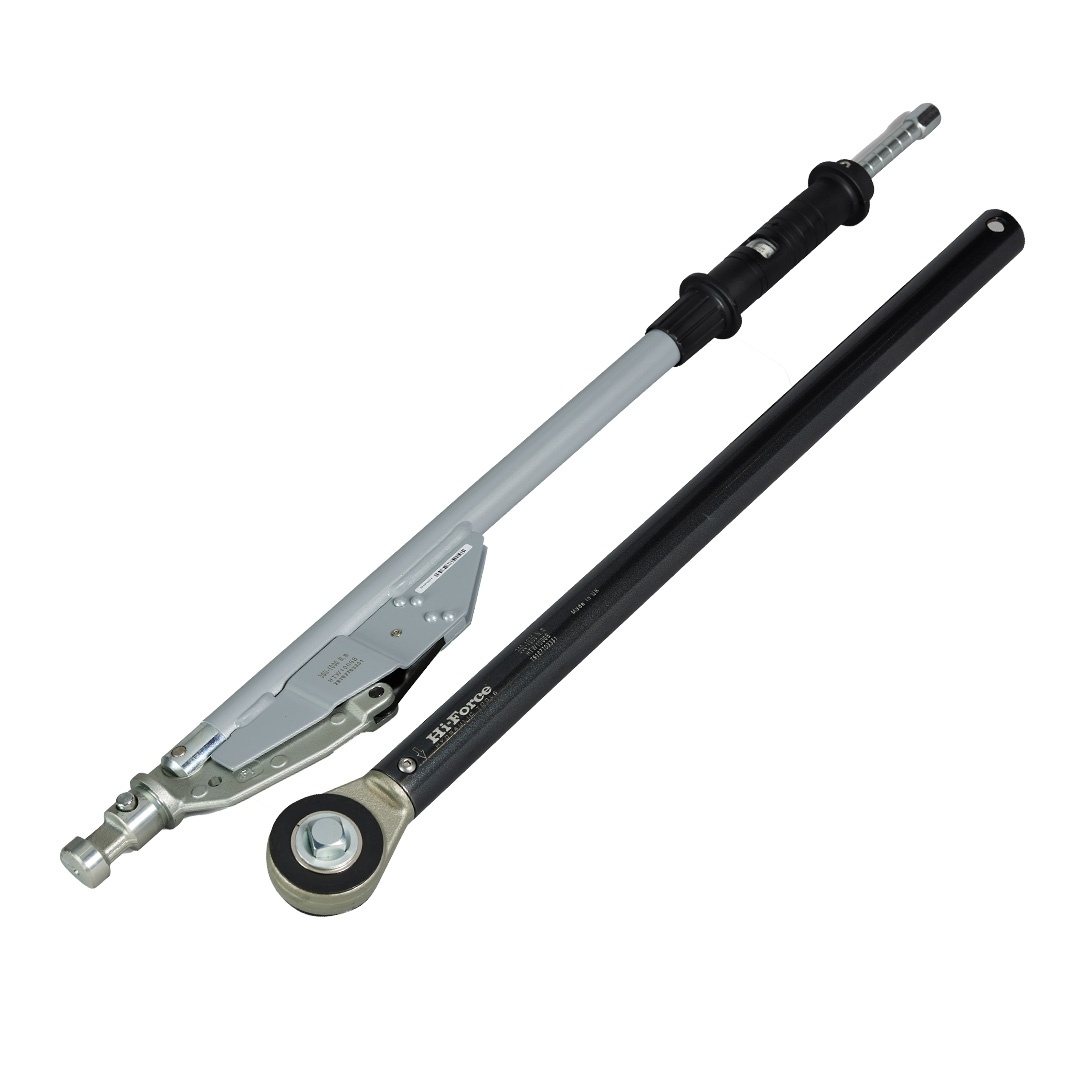

HTW Range

Manual Torque Wrenches - Break Back Type

  • Heavy duty ratchet head
  • Push-through square drive
  • Supplied with calibration certificate
  • Complete with carrying & storage case
Enquire now

Product Overview

Hi-Force HTW industrial manual torque wrenches offer output torque capacities ranging from 300 to 2000 Nm (200 to 1500 lbf.ft) with repeatable accuracy of +/- 4% and a choice of ¾” and 1” square drives. All HTW break-back type models provide a large break angle, to prevent the possibility of over torqueing. The cam control of the internal mechanism will ensure a controlled “break” once the required preset torque is achieved, which reduces the risk of the operator losing balance. The wrench automatically resets when hand pressure is released.

  • Torque capacities from 300 to 2000 Nm
  • Repeatable accuracy +/- 4 %
  • Dual scale Nm & lbf.ft.

Product resources

Technical specifications

Model No.Square DriveTorque RangeOverall length mmRatchet Head dia mmWeight kg
HTW1000B3/4"300 - 1000200 - 7501554697.4
HTW1500B3/4"700 - 1500500 - 10001869699.6
HTW1800B1"700 - 1500500 - 10001869699.6
HTW2000B1"900 - 2000700 - 150019406912.8


Torque Tools HTW

Dimensions (mm)

Model numberABCØDEFGHJ maxØK
