ACP Range
Auto-Centre Hydraulic Puller Kits
- Self-centering design allows secure positioning of jaws
- Incorporates safety overload prevention valve within hydraulic pump
- Supplied as a complete set with all necessary hydraulic components in handy storage case
Product Overview

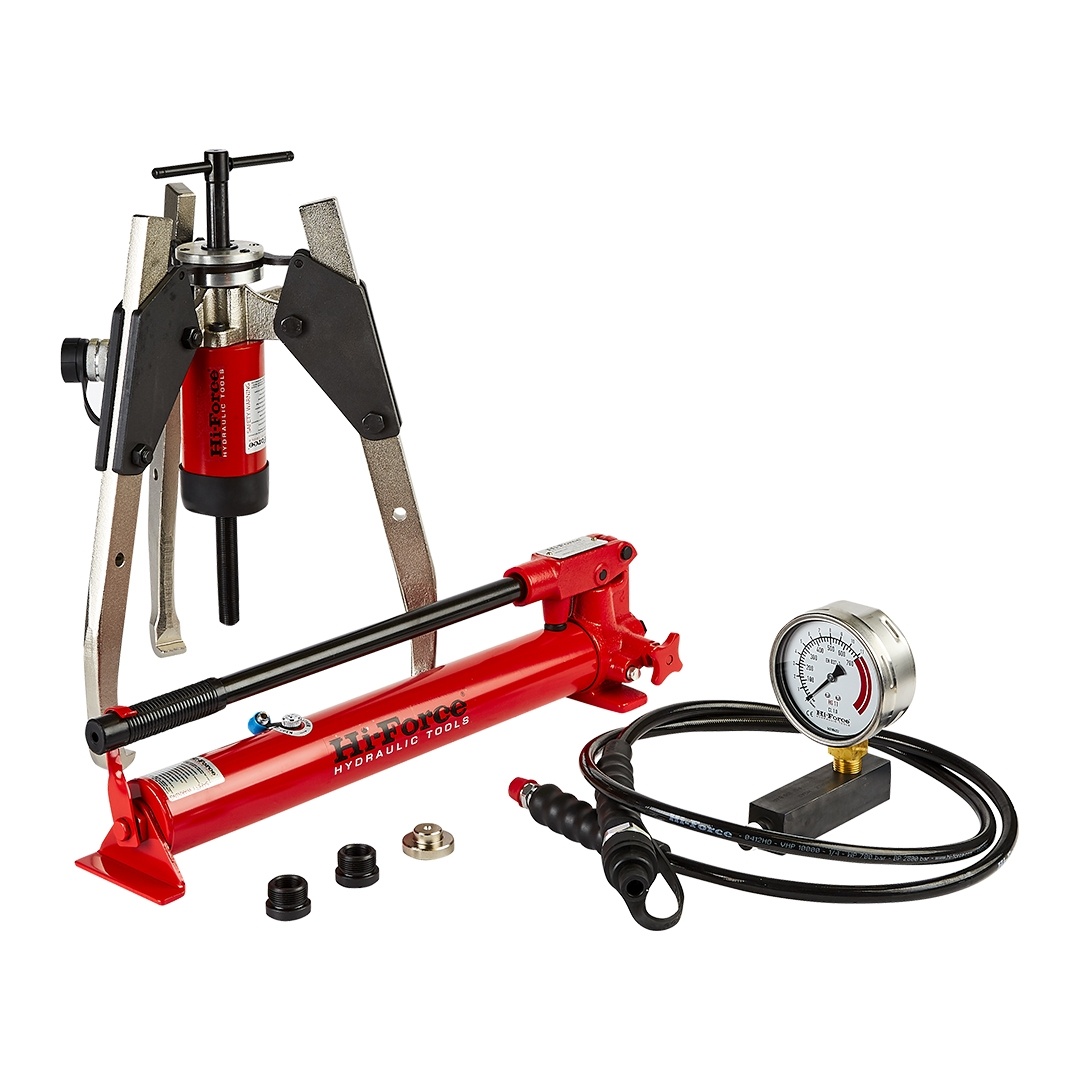

The ACP heavy duty, auto-centering hydraulic puller kit range offers a choice of 4 models, with capacities from 10 to 50 tonnes. All models are supplied complete with a detachable hollow ram cylinder, manually operated pump, hydraulic hose and a 100 mm diameter pressure gauge. All models are easy to set up and are the ideal tool for all pulling, pushing, installing and removing applications required for press fitted or heat fitted parts, including wheels, sprockets, flywheels, gears and bearings.
- Capacities from 10 to 50 tonnes
- Quick set-up time, easy to use
- High quality, drop forged steel components
Product resources
Technical specifications
| Model Number | Capacity tonnes | Type of Puller | Cylinder Model | Pump Model | Weight kg |
|---|---|---|---|---|---|
| ACP10 | 10 | 2 & 3-way jaw | HHS102 | PK10-HP | 24.5 |
| ACP20 | 20 | 3-way jaw | HHS202 | PK20-HP | 44.0 |
| ACP30 | 30 | 3-way jaw | HHS302 | PK30-HP | 76.5 |
| ACP50 | 50 | 3-way jaw | HHS603 | PK50-HP | 181.0 |
Dimension
Dimensions (mm)
| Model number | A | B (min) | B (max) |
|---|---|---|---|
| ACP10 | 296 | 50 | 350 |
| ACP20 | 320 | 70 | 480 |
| ACP30 | 407 | 90 | 580 |
| ACP50 | 727 | 120 | 920 |
