Hi-Force product

PKC Range

Comprehensive Hydraulic Puller Kits

Enquire now

Product Overview

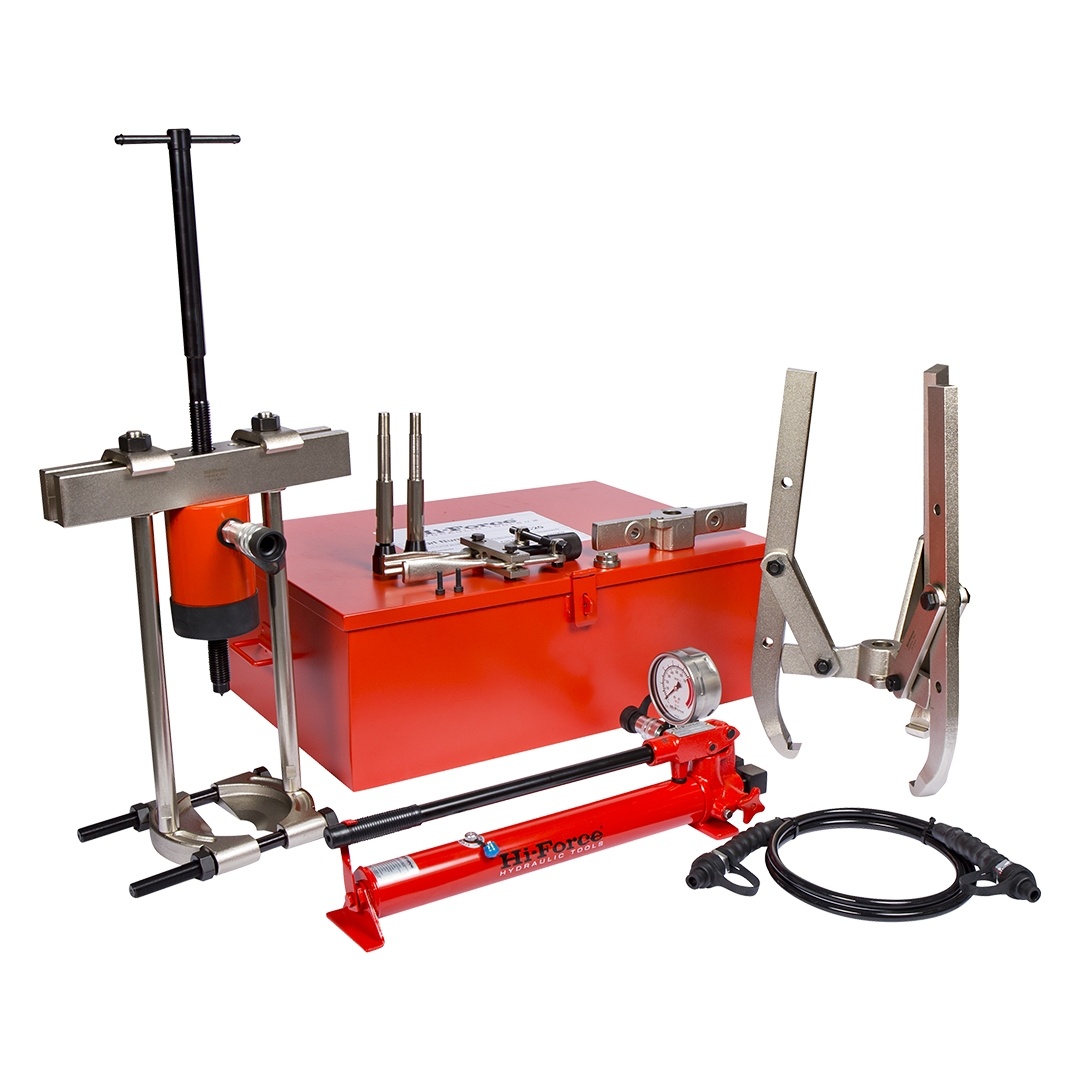

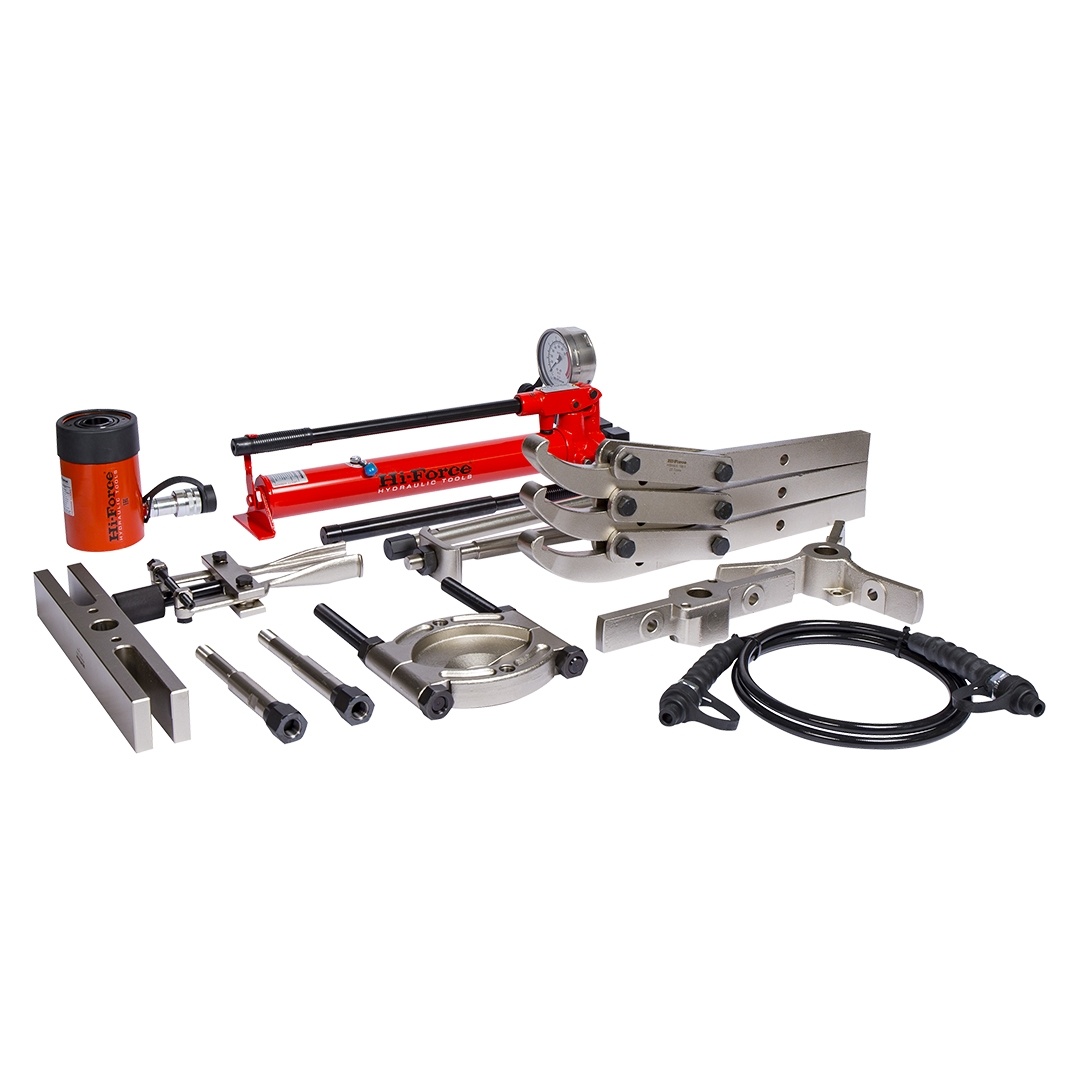

The PKC heavy duty, multi-purpose hydraulic puller kit range is extremely versatile and includes 2-way and 3-way grip pullers, bearing pullers, bearing cup pullers and cross head pullers. All models are designed for pulling, pushing, installing and removing all press fitted or heat fitted parts such as gears, bearings, sleeves, cogs, internal bearings, wheels, sprockets, flywheels, etc. The range offers a selection of 4 models with pulling capacities up to 50 tonnes, all supplied complete with a full set of necessary hydraulic components.

Capacities from 10 to 50 tonnes
Combination of 4 different pullers in one set
High quality, drop forged steel components

Product resources

PKC Catalogue Page

PKC10 Spare Part Sheet

PKC20 Spare Part Sheet

PKC30 Spare Part Sheet

PKC50 Spare Part Sheet

PKC Operating Manual

Model Number	Capacity tonnes	Cylinder Model	Pump Model	Weight kg
PKC10	10	HHS102	PK10-HP	32.8
PKC20	20	HHS202	PK20-HP	59.3
PKC30	30	HHS302	PK30-HP	117.0
PKC50	50	HHS603	PK50-HP	235.0

Note: 1) Dimensions A & B calculated with 15° outward angled puller legs
2) All PKC puller kits are supplied in a metal storage box with the exception of PKC50, which is supplied in an alternate storage case.

Dimensions (mm)

Model Number
Model Number	A	B min	B max	C min	C max	D	E	F min	F max	G min	G max	H
PKC10	296	50	350	115	260	300	110	10	110	40	145	115
PKC20	320	70	480	135	345	265	155	12	134	40	145	115
PKC30	407	90	580	180	440	284	260	17	255	60	240	150
PKC50	727	120	920	230	580	447	300	20	300	60	240	150

Note: Dimensions A & B calculated with 15° outward angled puller legs.
