Hi-Force product
HBR Range

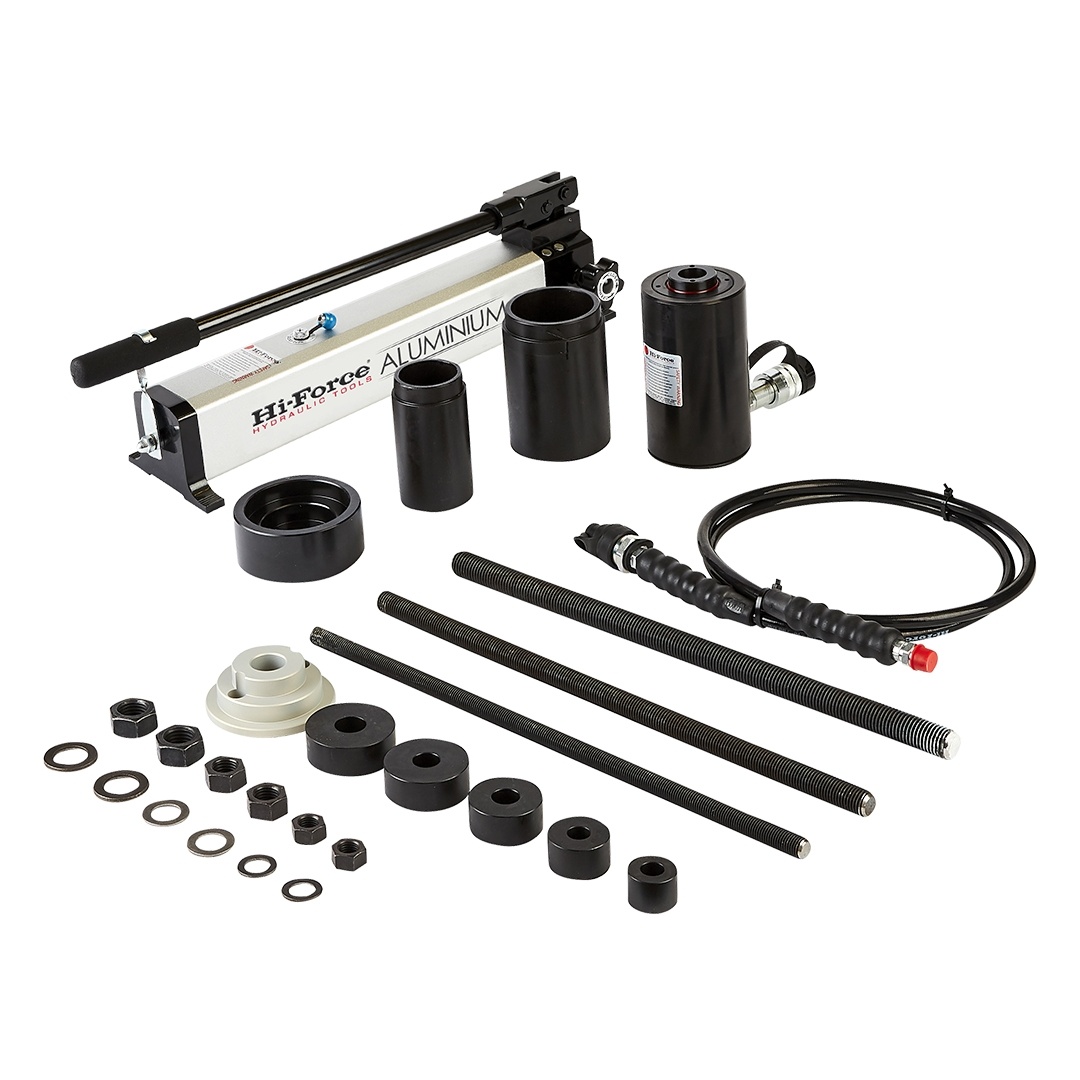

Spring Eye Bush Replacement Tool Kit
- Choice of manual or air-driven hydraulic pump
- Kit includes a lightweight aluminium alloy hollow bore cylinder
- Supplied complete with a wide range of standard tooling accessories
- Handy storage and transportation box included with each kit
Product Overview
The Hi-Force HBR-1 spring eye bush replacement tool kit is offered with a choice of manual or air powered hydraulic pump unit, or it can be supplied without a pump, should the user already have a suitable 700 bar pump available.
- Powerful 18 tonnes output capacity
- Maximum working pressure 700 bar
- Lightweight and compact design
Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Complete set comprising of | Weight kg | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cylinder | Pump | Hose | Base plate | Threaded rods | Dolleys | Pull sleeves | ||||
| HBR-1 | 18 | 51 | HHA182 | n/a | n/a | 1 | 3 | 5 | 2 | 27 |
| HBR-1H | 18 | 51 | HHA182 | HP212 | HC2 | 1 | 3 | 5 | 2 | 33 |
| HBR-1A | 18 | 51 | HHA182 | AHP1120 | HC2 | 1 | 3 | 5 | 2 | 35 |
