Product Overview

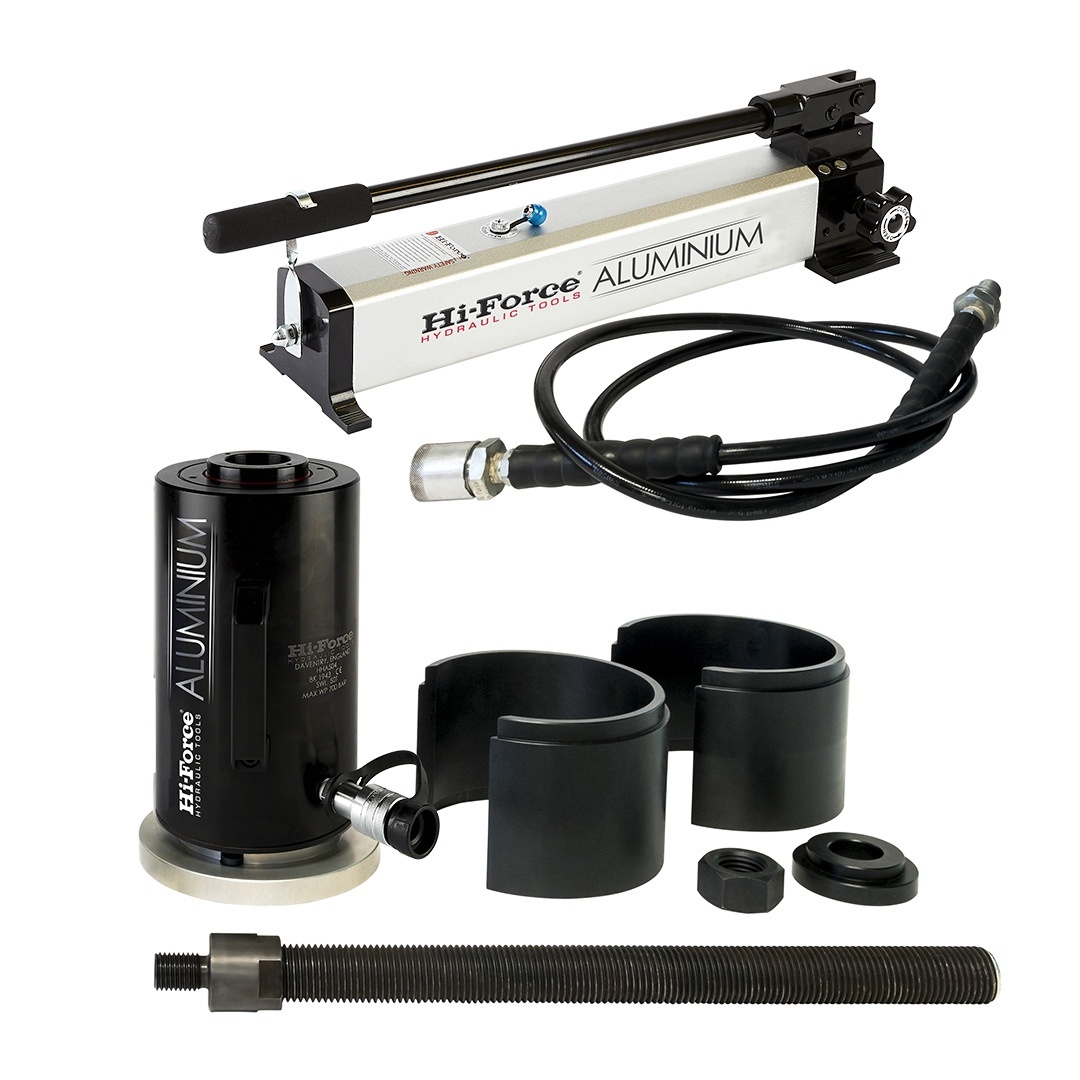

The Hi-Force HPR range of pin and bush replacement kits is offered with a choice of 37 or 50 tonnes capacity, both available with either a manual or air driven hydraulic pump unit. Both the HPR-1 and HPR-2 models can also be supplied without a hydraulic pump for those users that already have a suitable 700 bar pump available. All models operate at 700 bar maximum working pressure and incorporate either a standard HHA372 37 tonne capacity or a HHA504 50 tonne capacity, lightweight, aluminium hydraulic cylinder.
- Capacities up to 50 tonnes
- Maximum working pressure 700 bar
- Lightweight and compact design
Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Complete set comprising of | Weight kg | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cylinder | Pump | Hose | Base plate | Threaded rods | Pull sleeves | Adaptors | Reducer sleeves | ||||
| HPR-1 | 37 | 51 | HHA372 | n/a | n/a | 1 | 1 | 2 | 2 | 1 | 38 |
| HPR-1H | 37 | 51 | HHA372 | HP212 | HC2 | 1 | 1 | 2 | 2 | 1 | 44 |
| HPR-1A | 37 | 51 | HHA372 | AHP1120 | HC2 | 1 | 1 | 2 | 2 | 1 | 46 |
| HPR-2 | 50 | 104 | HHA504 | n/a | n/a | 2 | 1 | 4 | 1 | 1 | 66 |
| HPR-2H | 50 | 104 | HHA504 | HP212 | HC2 | 2 | 1 | 4 | 1 | 1 | 72 |
| HPR-2A | 50 | 104 | HHA504 | AHP1120 | HC2 | 2 | 1 | 4 | 1 | 1 | 74 |
