PKS Range

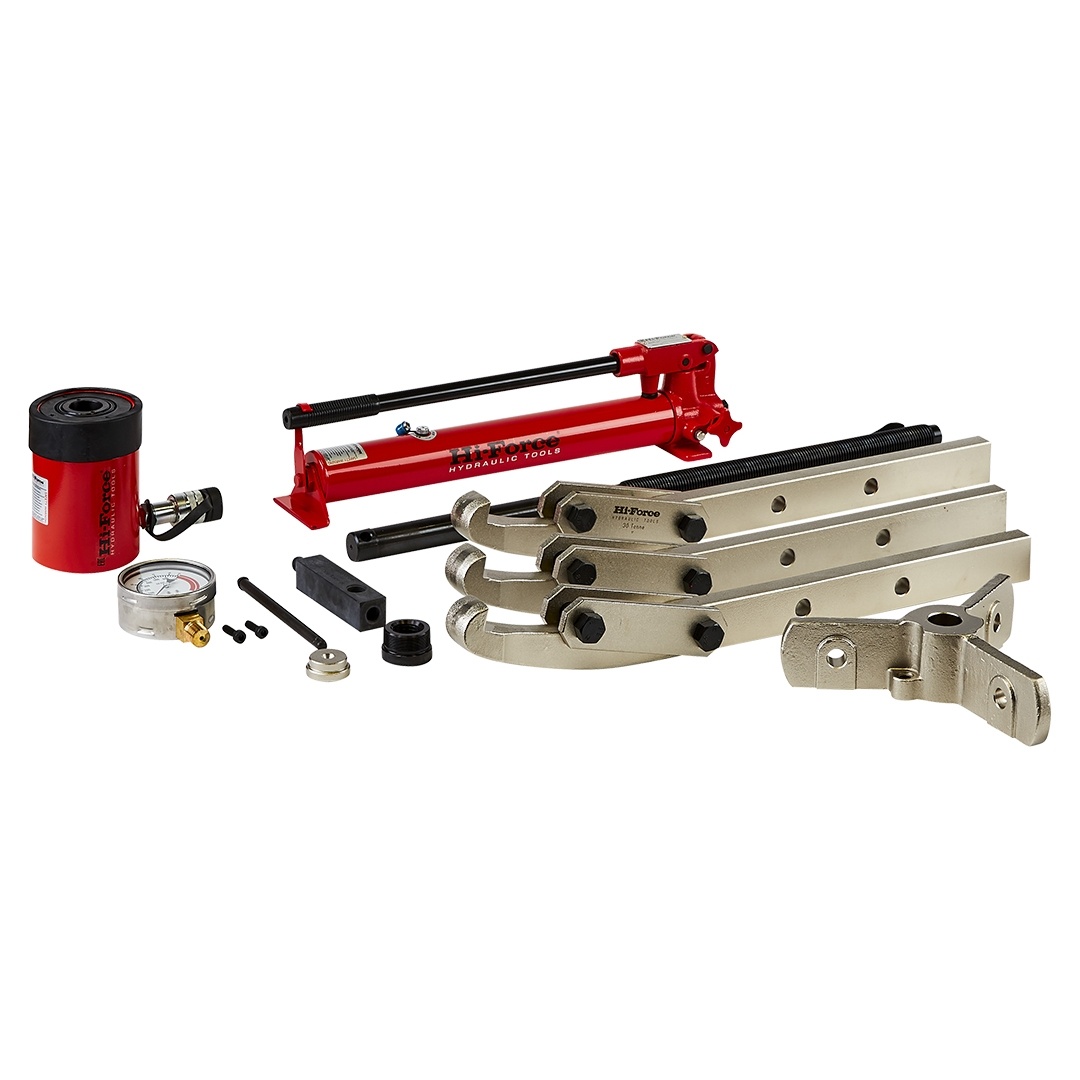

Hydraulic 2 & 3 Way Puller Kits
- Available in choice of 2 or 3-way puller configurations
- Incorporates safety overload prevention valve within hydraulic pump
- Detachable hydraulic system with hollow piston cylinder (excl. PKS5-2-3)
Product Overview
The PKS heavy duty hydraulic puller range is designed for removing stubborn parts such as wheels, gears, sprockets, sleeves, pulleys and other similar items. The range offers a selection of 8 models with pulling capacities up to 50 tonnes. All models are supplied complete with a full set of necessary hydraulic components in a handy storage case.
- Capacities from 4.5 to 50 tonnes
- Quick set-up time, easy to use
- High quality, drop forged steel components
Product resources
More Product resources
Technical specifications
| Model Number | Capacity tonnes | Type of Puller | Cylinder Model | Pump Model | Weight kg |
|---|---|---|---|---|---|
| PKS5-2-3 | 4.5 | 2 & 3-way jaw | HSS53 | HP110 | 13.4 |
| PKS10-2-3 | 10 | 2 & 3-way jaw | HHS102 | PK10-HP | 20.8 |
| PKS20-2 | 20 | 2-way jaw | HHS202 | PK20-HP | 30.8 |
| PKS20-3 | 20 | 3-way jaw | HHS202 | PK20-HP | 35.7 |
| PKS30-2 | 30 | 2-way jaw | HHS302 | PK30-HP | 44.8 |
| PKS30-3 | 30 | 3-way jaw | HHS302 | PK30-HP | 54.4 |
| PKS50-2 | 50 | 2-way jaw | HHS603 | PK50-HP | 99.0 |
| PKS50-3 | 50 | 3-way jaw | HHS603 | PK50-HP | 121.7 |
| PK202 | 20 | 2-way jaw beam | * | * | 3.0 |
| PK302 | 30 | 2-way jaw beam | * | * | 4.0 |
| PK502 | 50 | 2-way jaw beam | * | * | 7.0 |
Note: 1) PK202, PK302 & PK502 are 2-way jaw beam only for modifying applicable capacity 3-way jaw pullers to 2-way operation.
2) Dimensions calculated with 15° outward angled puller legs.
3) All PKS puller kits are supplied in a metal storage box with the exception of PKS50-2 and PKS50-3, which are supplied in an alternate storage case.
Dimension
Dimensions (mm)
| Model Number | |||
|---|---|---|---|
| A | B min | B max | |
| PKS5-2-3 | 225 | * | 240 |
| PKS10-2-3 | 296 | 50 | 350 |
| PKS20-2 | 320 | 70 | 480 |
| PKS20-3 | 320 | 70 | 480 |
| PKS30-2 | 407 | 90 | 580 |
| PKS30-3 | 407 | 90 | 580 |
| PKS50-2 | 727 | 120 | 920 |
| PKS50-3 | 727 | 120 | 920 |
| PK202 | * | * | * |
| PK302 | * | * | * |
| PK502 | * | * | * |
