AHP11 Range
Air Driven Single Stage Hand or Foot Operated Pumps
- Choice of 2-way or 4-way control valves
- Internal safety overload valve
- Reservoir oil sight level gauge
- Standard oil reservoir capacities up to 10 litres
Product Overview

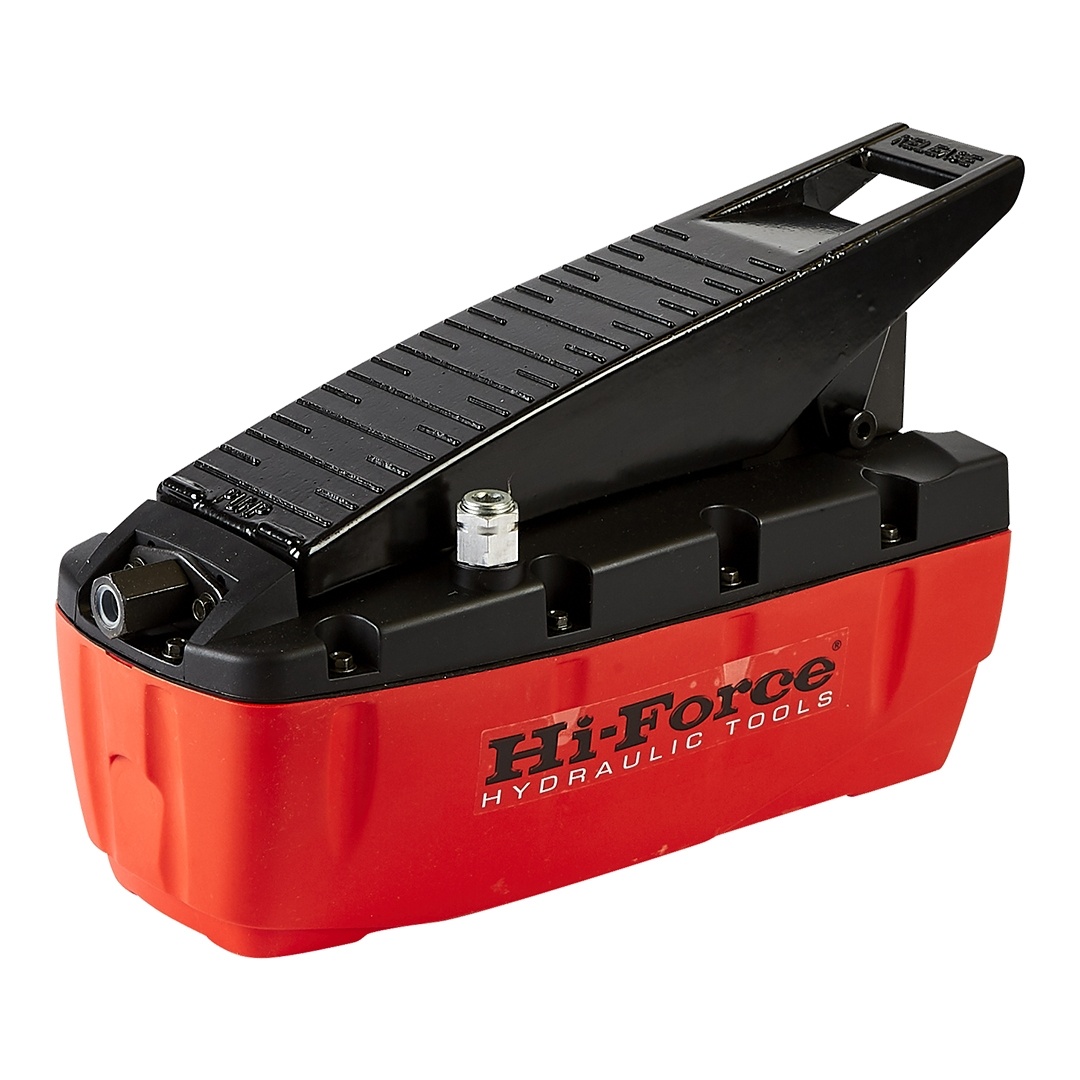

The AHP11 series of air driven single stage pumps offer an economical and faster working alternative to basic hand operated pumps. Available with both 2-way and 4-way manually operated control valves AHP11 series pumps incorporate an ergonomically designed pedal offering the operator the choice of hand or foot operated control (excludes 4-way valve models). Remote air powered pendant control options also available.
- Working pressure 700 bar
- Compact, lightweight & powerful
- Standard 7 bar air input pressure required
Product resources
Technical specifications
| Model No. | Maximum Flow Rate l/min | Valve type | Usable oil capacity Litres | Air inlet connection G | Oil outlet connection NPTF | Weight Kg |
|---|---|---|---|---|---|---|
| AHP1120 | 1.1 | 2-way | 2.1 | 1/4" | 3/8" | 4.7 |
| AHP1121 | 1.1 | 2-way | 4.2 | 1/4" | 3/8" | 10.2 |
| AHP1122 | 1.1 | 2-way | 10.0 | 1/4" | 3/8" | 17.8 |
| AHP1141 | 1.1 | 4-way | 4.2 | 1/4" | 3/8" | 13.8 |
| AHP1142 | 1.1 | 4-way | 10.0 | 1/4" | 3/8" | 18.3 |

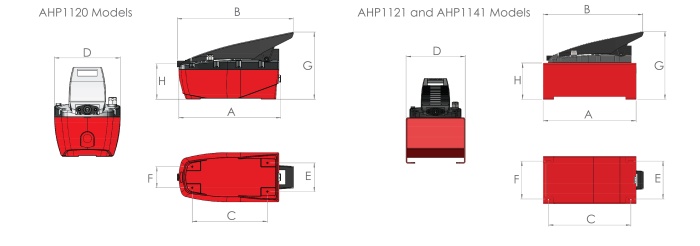

Dimension
Dimensions (mm)
| Model Number | ||||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| AHP1120 | 319.5 | 364.2 | 236 | 155 | 66 | 90 | 208.8 | 108.5 |
| AHP1121 | 350 | 376 | 310 | 178 | 142.5 | 142.5 | 256 | 137 |
| AHP1122 | 460 | 560 | 420 | 252 | 231 | 108 | 272 | 155 |
| AHP1141 | 350 | 382 | 310 | 178 | 142.5 | 142.5 | 290 | 137 |
| AHP1142 | 460 | 560 | 420 | 252 | 231 | 108 | 315 | 155 |
