HAP Range

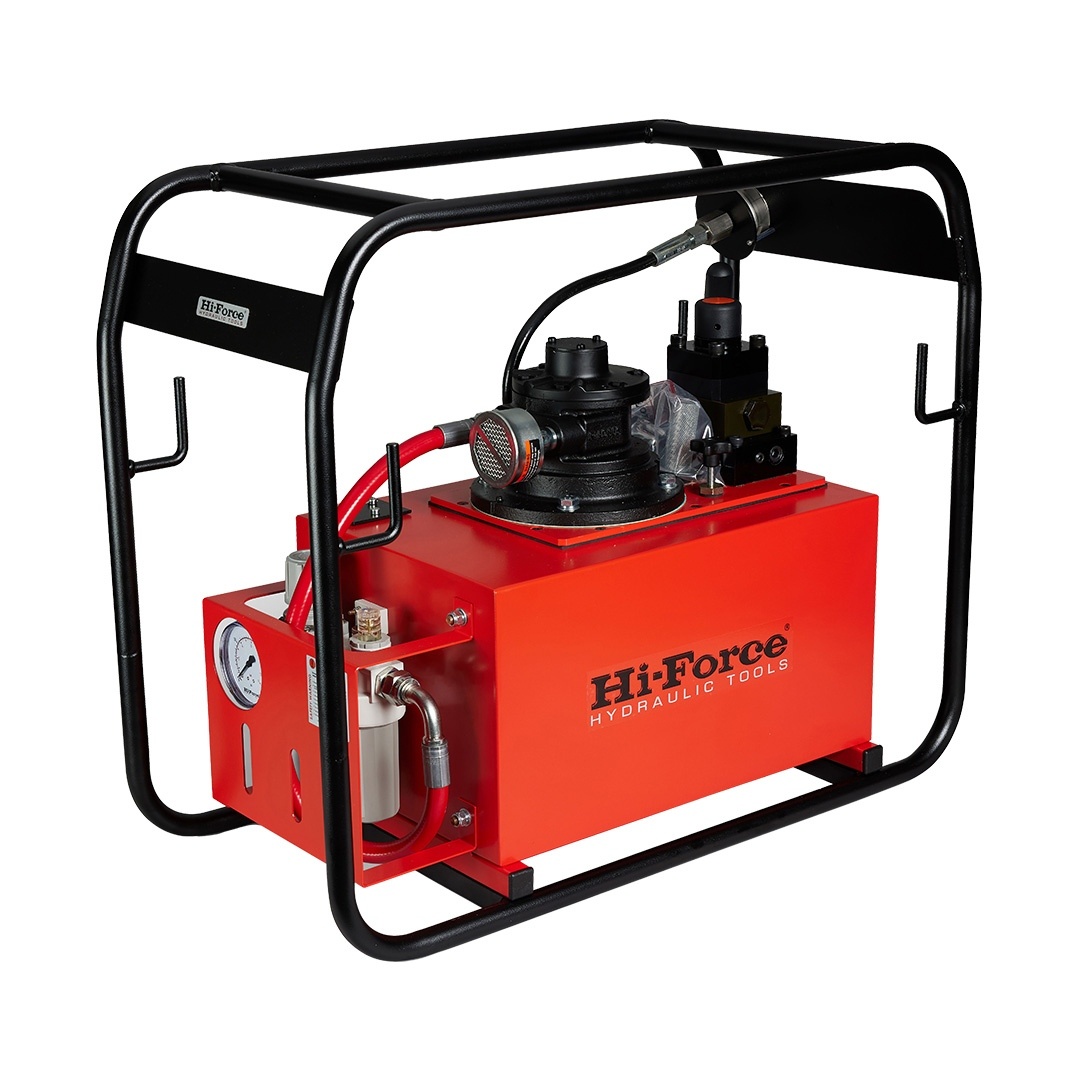

Air Driven Two Stage High Flow General Duty Pumps

Externally adjustable pressure relief valve
Choice of manual control valves with load holding feature fitted as standard (excl. 2-way)
Cable management features for cable/hose winding and stowage
Supplied as standard with pressure gauge, FRL unit and a robust roll frame

Enquire now

Product Overview

The HAP two stage air powered hydraulic pump range offers a low pressure flow of 10 litres/min with automatic changeover to 700 bar high pressure flow rate of 1.3 litres/min. Driven by a powerful 3 kW rotary air motor with a maximum air consumption of 2.4 m3 per minute at 7 bar inlet air pressure, the HAP range offers a choice of pump mounted or remote control valves and oil reservoirs all fitted with filler and drain plugs.

Working pressure 700 bar
Two stage operation
Choice of 10 or 25 litre oil reservoir

Product resources

HAP Catalogue Page

HAP2101 Spare Parts Sheet

HAP2102 Spare Parts Sheet

HAP2103 Spare Parts Sheet

HAP2104 Spare Parts Sheet

HAP Operating Manual

Model Number	Valve Type	Oil Cap litres	Maximum flow rate litres/min		Weight kg
Model Number	Valve Type	Oil Cap litres	1st stage	2nd stage	Weight kg
HAP21011	P-T Plate	10	10	1.3	46.5
HAP21012	P-T Plate	25	10	1.3	62.5
HAP21021	2-way	10	10	1.3	47.0
HAP21022	2-way	25	10	1.3	63.0
HAP21031	3-way	10	10	1.3	47.0
HAP21032	3-way	25	10	1.3	63.0
HAP21041	4-way	10	10	1.3	47.0
HAP21042	4-way	25	10	1.3	63.0

Dimensions (mm)

Model number	A	B	C
HAP21011	627	292	632
HAP21012	627	352	754
HAP21021	627	292	632
HAP21022	627	352	754
HAP21031	627	292	632
HAP21032	627	352	754
HAP21041	627	292	632
HAP21042	627	352	754
