HCJ Range
Climbing Jacks
- Incorporates an inverted HDA double-acting hydraulic cylinder for higher output and improved efficiency
- Compact, robust steel base with anti-rotation device for maximum safety and stability
- Designed for use with cribbing blocks for fast and safe incremental lifting or lowering of heavy loads
Product Overview
Hi-Force HCJ climbing jacks provide a compact, lightweight solution for heavy load positioning across diverse industrial applications, offering controlled and reliable performance, even in confined spaces.

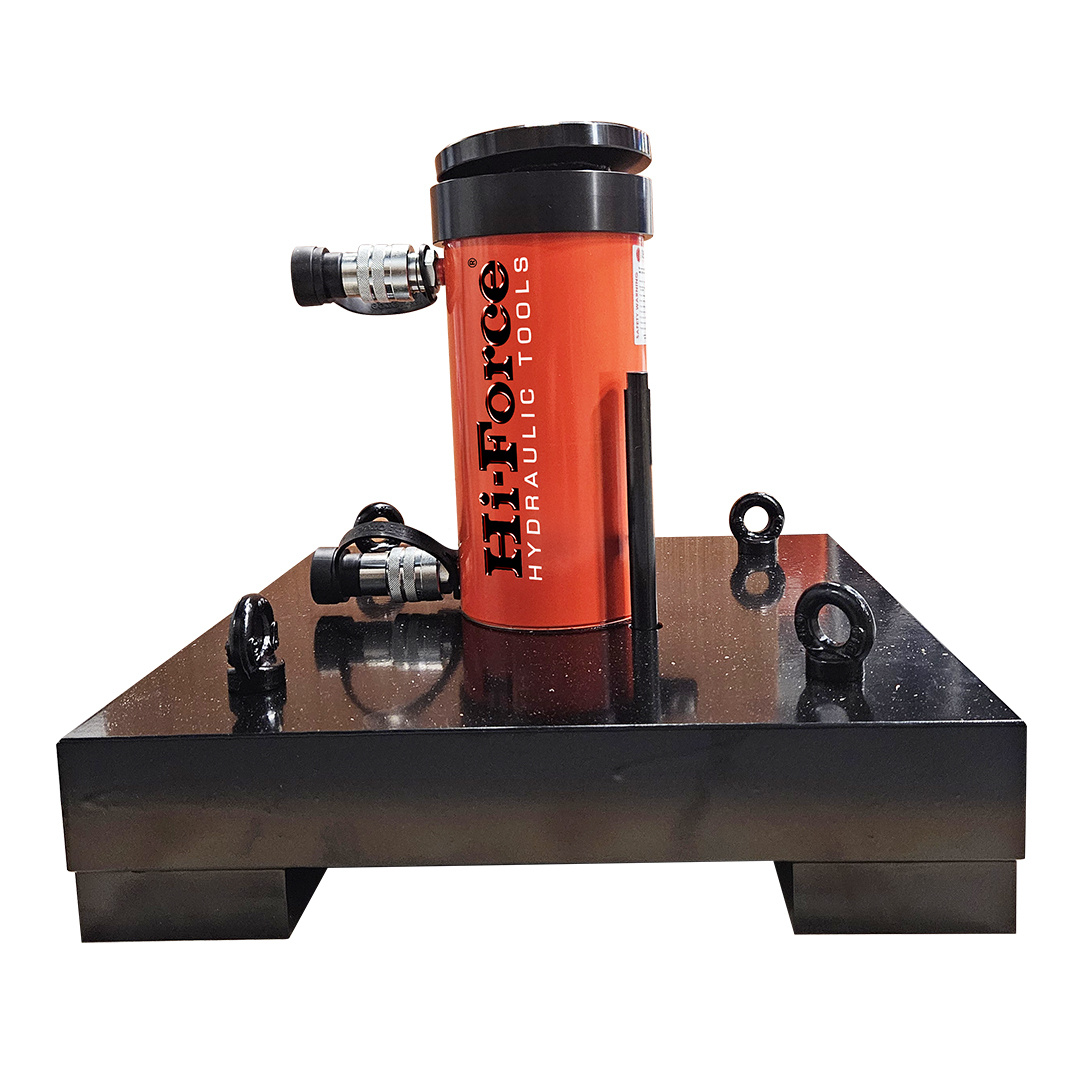

Engineered for fast and safe incremental lifting or lowering of heavy loads and structures, the HCJ jacks feature a Hi-Force HDA double-acting hydraulic cylinder mounted on a robust steel base plate that incrementally “climbs” on stacks of cribbing blocks. These blocks are added in stages to reach the required height, enabling safe and controlled movement of loads over greater distances.
Available with lifting capacities from 50 to 200 tonnes, the HCJ Series is fully compatible with Hi-Force’s powered pump range as well as the SLF and SLV synchronous lift systems.
- Capacities from 50 to 203 tonnes
- Incremental lifting heights up to 152 mm
- Working pressure 700 bar
Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Oil capacity litres | Cyl. eff. area cm2 | Weight kg |
|---|---|---|---|---|---|
| HCJ506 | 50 | 152 | 1.08 | 71.3 | 144 |
| HCJ1006 | 109 | 152 | 2.33 | 153.3 | 222 |
| HCJ1506 | 152 | 152 | 3.26 | 214.2 | 337 |
| HCJ2006 | 203 | 152 | 4.33 | 285.2 | 410 |
Note: 1) Cribbing blocks are not supplied by Hi-Force. Please ensure that suitable cribbing blocks are used for the application.
2) If specifying this climbing jack for use with the SLF and SLV synchronous lifting systems and associated mounting kit, please consider the increase in dimension A (closed height)
Dimension

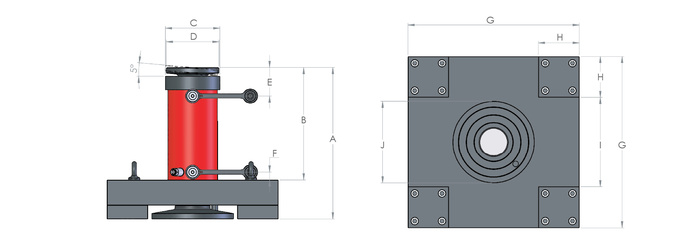

Dimensions (mm)
| Model Number | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| HCJ506 | 394 | 289 | 140 | 135 | 73 | 20 | 440 | 105 | 230 | 210 |
| HCJ1006 | 438 | 303 | 198 | 135 | 87 | 20 | 455 | 105 | 245 | 235 |
| HCJ1506 | 460 | 310 | 223 | 135 | 94 | 20 | 550 | 120 | 310 | 285 |
| HCJ2006 | 482 | 317 | 267 | 135 | 102 | 20 | 550 | 120 | 310 | 305 |
