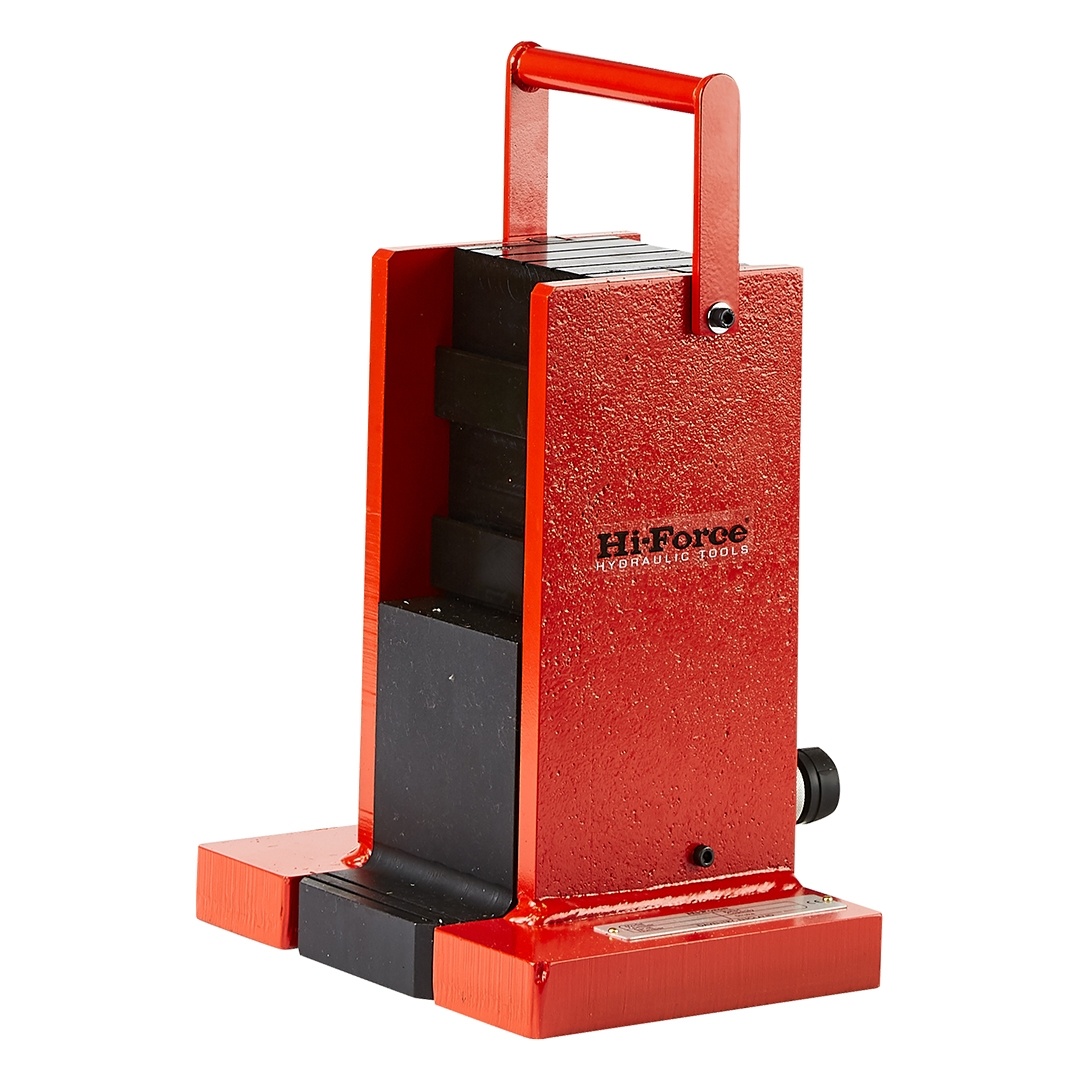

HMJ Range

Steel Machine Lift Jacks

  • Multi-position lifting toe with minimum height of 25 mm
  • Remote operation gives improved operator safety
  • Can be used for simultaneous multiple lift point applications
Enquire now

Product Overview

The HMJ range of hydraulic machine lifting jacks are designed specifically for lifting heavy equipment and machinery where a minimum low height lifting access point is available. The low height lifting toe is precision guided throughout its lifting stroke to reduce friction and prevent the hydraulic cylinder from potential side loading. Both models are 700 bar maximum working pressure and incorporate a 150 mm hydraulic lift with a lifting toe, which can be preset at three different initial lifting positions, for even greater flexibility. Suitable manual or powered pumps for use with HMJ jacks are available.

Product resources

  • Capacities of 10 to 25 tonnes
  • Stroke length 150 mm
  • Working pressure 700 bar

Technical specifications

Model NumberCapacity tonnesStroke mmWeight kg
ToeHead
HMJ108.51015029.2
HMJ25202515055.1
Note: Maximum permissible input hydraulic pressure when lifting on the jack toe is 595 bar for HMJ10 and 560 bar for HMJ25, do not exceed!

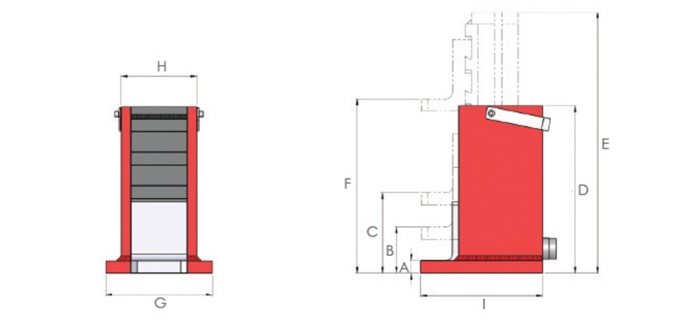

Dimension

Hi force dim draw jacks HMJ

Dimensions (mm)

Model numberABCDEFGHI
HMJ102579133272422283202122187
HMJ2535117199330480349292152211
