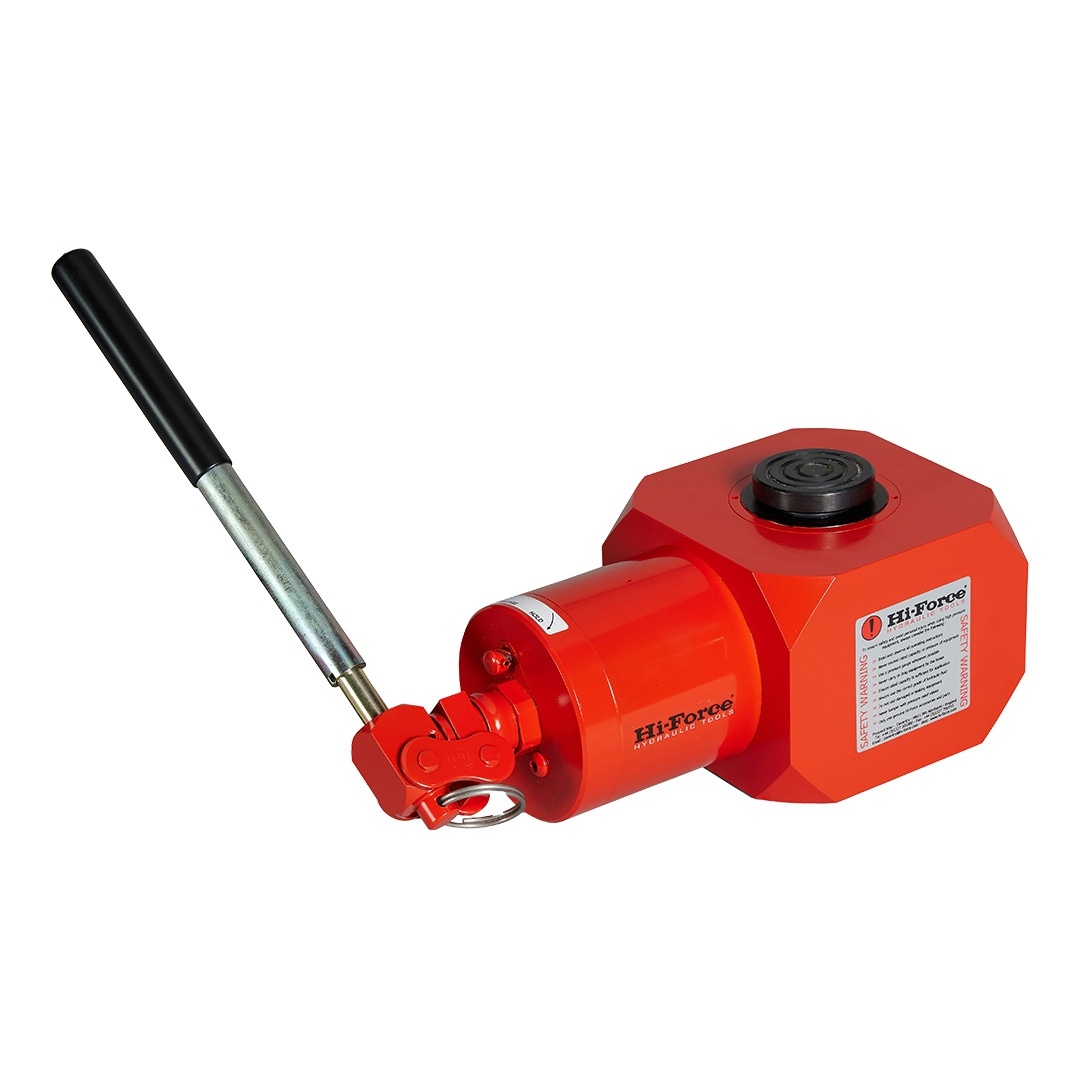

JCS Range
Compact Jacks - Solid Piston
- Spring assisted piston retraction
- 360 degree positional pumping mechanism
- Internal safety overload valve
- Nitrocarburised piston rod
Product Overview
The Hi-Force JCS range of compact jacks is ideally suited for applications requiring a lifting or positioning force in confined spaces. Lightweight, easy to operate and manufactured from high grade steel (JCS10) and aluminium (JCS20 & JCS30), all models incorporate a spring assisted return, wear coated piston. The pumping mechanism rotates through 360° providing maximum versatility in any application. With the removable operating handle measuring only 240 mm in length, these compact lifting jacks will fit in any toolbox.
- Capacities from 10 to 30 tonnes
- Stroke lengths from 35 to 45 mm
- Lightweight and compact
Product resources
Technical specifications
| Model Number | Capacity tonnes | Body construction | Stroke mm | Weight kg |
|---|---|---|---|---|
| JCS10 | 10 | Steel | 35 | 4.5 |
| JCS20 | 20 | Aluminium | 41 | 5.5 |
| JCS30 | 30 | Aluminium | 45 | 8.0 |
Dimension
Dimensions (mm)
| Model number | A | B | C | D | E |
|---|---|---|---|---|---|
| JCS10 | 240 | 76 | 38 | 266 | 70 |
| JCS20 | 257 | 102 | 51 | 281 | 102 |
| JCS30 | 281 | 112 | 60 | 285 | 125 |
