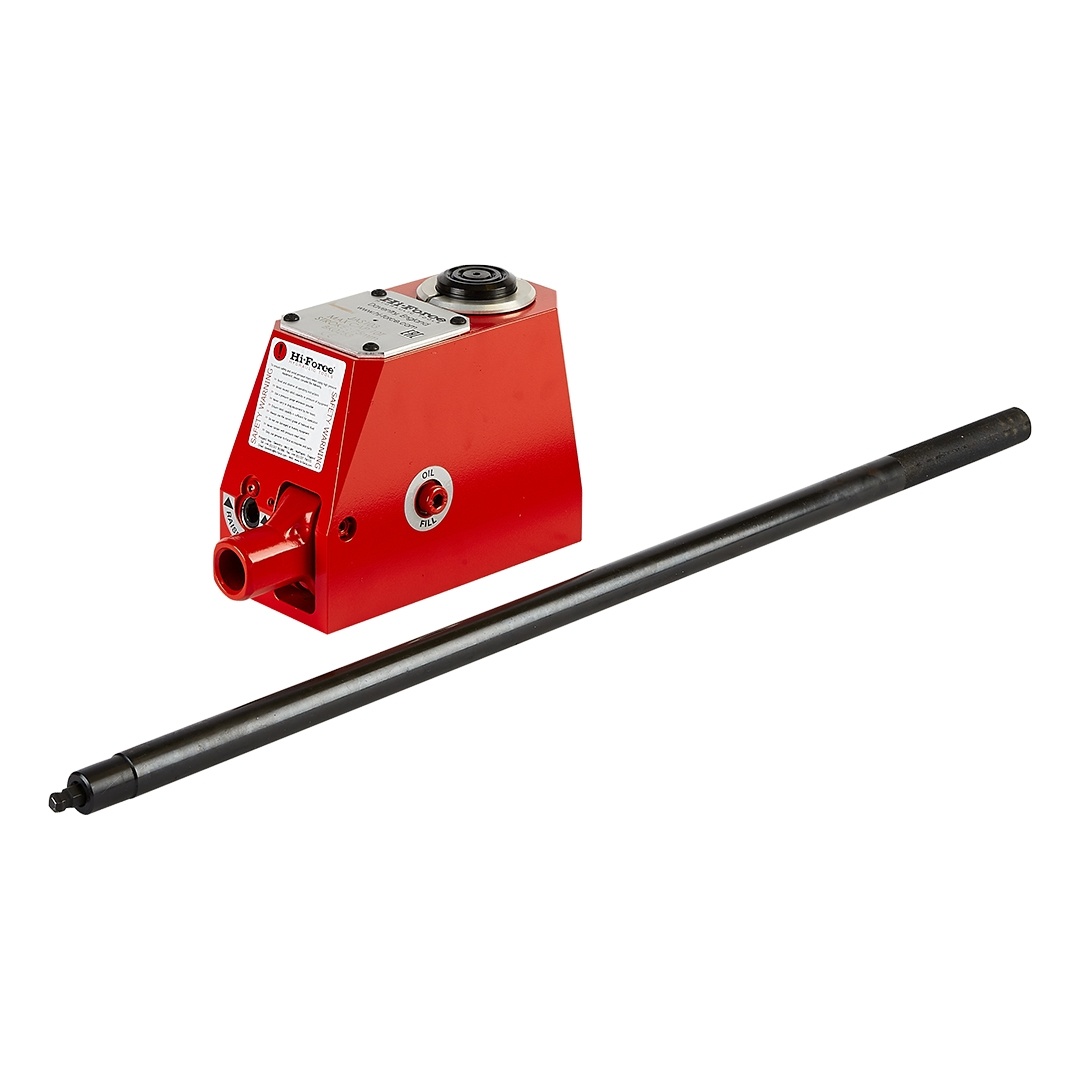

JAS Range
Compact Multi-Purpose Aluminium Jacks
- Lightweight construction
- Spring assisted piston retraction
- Stroke limiting device
Product Overview
The JAS range of plain ram lifting jacks are used extensively in maintenance, construction, heavy plant and machinery applications. Constructed predominantly of lightweight aluminium alloy with all critical functioning parts manufactured from high quality steel, these high quality jacks are the proven industry standard.
- Capacity 10 tonnes
- Stroke lengths up to 125 mm
- Internal safety overload device
Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Weight kg |
|---|---|---|---|
| JAS103 | 10 | 75 | 4.3 |
| JAS105 | 10 | 125 | 5.7 |
Dimension
Dimensions (mm)
| Model number | A | B | C |
|---|---|---|---|
| JAS103 | 131 | 162 | 121 |
| JAS105 | 181 | 162 | 121 |
