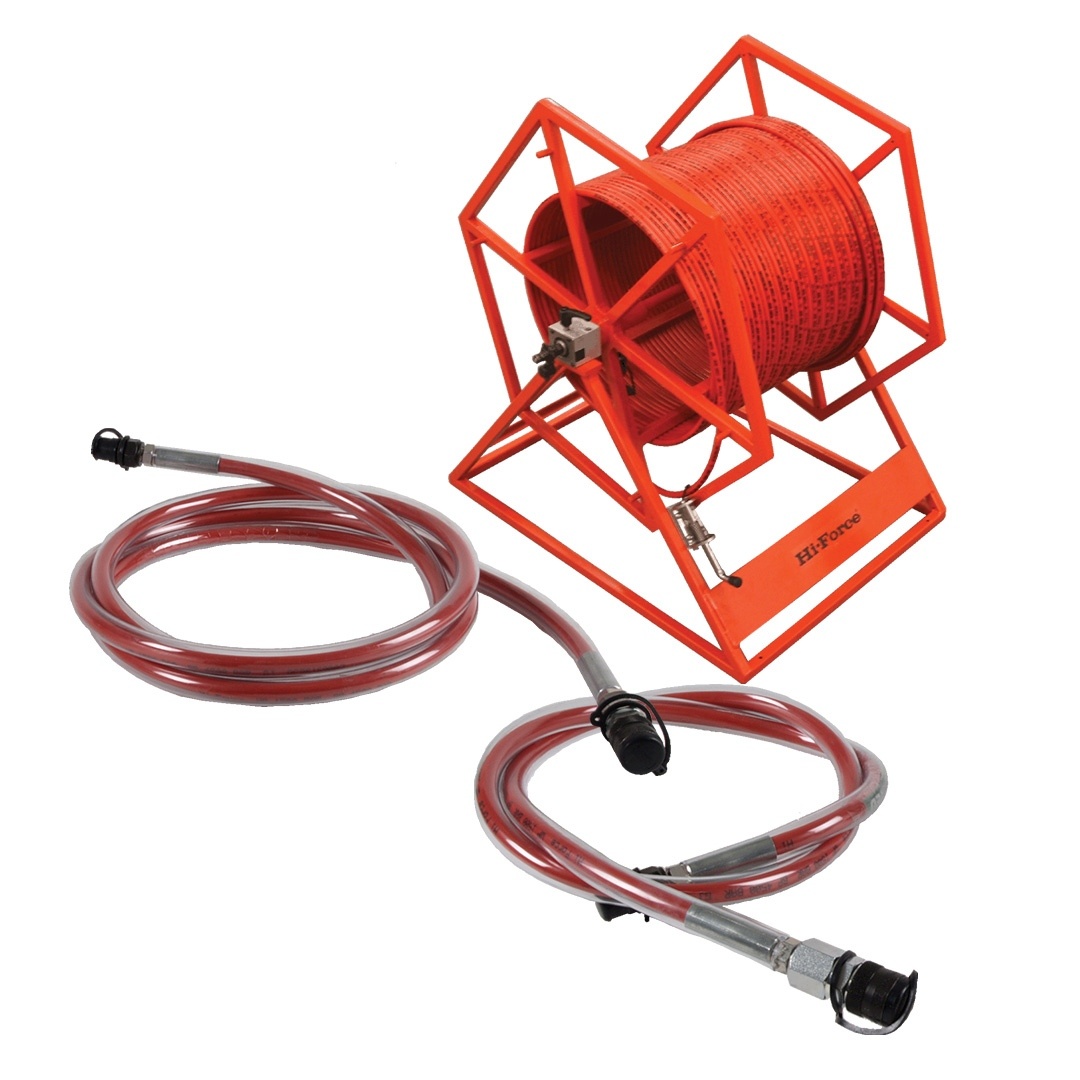

Hi-Force ultra-high pressure hoses are compatible for use with all Hi-Force bolt tensioning products up to a maximum of 1500 bar working pressure. Each hose is supplied complete with quick connect couplings on each end (male/female) and has a safety factor of 3:1 on maximum working pressure. Eleven standard lengths are available with special lengths available on request.
- Safety Factor 3:1
- Supplied with quick connect couplings
- Working pressure up to 1500 bar
Product resources
Technical specifications
| Model Number | Description | Weight kg |
|---|---|---|
| XHC1.5B | Link hose complete with quick connect couplings, length 1.5 metres | 1.0 |
| XHC3B | Link hose complete with quick connect couplings, length 3 metres | 1.7 |
| XHC5B | Mainline hose complete with quick connect couplings, length 5 metres | 2.6 |
| XHC10B | Mainline hose complete with quick connect couplings, length 10 metres | 4.5 |
| XHC25B | Mainline hose complete with quick connect couplings, length 25 metres | 8.5 |
| XHC50B | Mainline hose complete with quick connect couplings, length 50 metres | 16.9 |
| XHC100B | Mainline hose complete with quick connect couplings, length 100 metres | 33.6 |
| XHC150B | Mainline hose complete with quick connect couplings, length 150 metres | 50.6 |
| XHC200B | Mainline hose complete with quick connect couplings, length 200 metres | 67.0 |
| XHC250B | Mainline hose complete with quick connect couplings, length 250 metres | 83.7 |
| XHC300B | Mainline hose complete with quick connect couplings, length 300 metres | 100.4 |
| XHR1 | Hose reel, suitable for up to 300 meters of XHC high pressure hose | 28.0 |
| STFC4 | Female coupling | 0.4 |
| STMC4 | Male coupling | 0.2 |
| STN1P2 | 1/8" x 1/4" BSP nipple for current model STS1 only | 0.4 |
| STN1P4-C | 1/4" BSP nipple with cone seat seal (current design - not for STS1) | 0.7 |
Note: XHC high pressure bolt tensioner up to 15 meters in length are supplied with a clear protective sleeve.

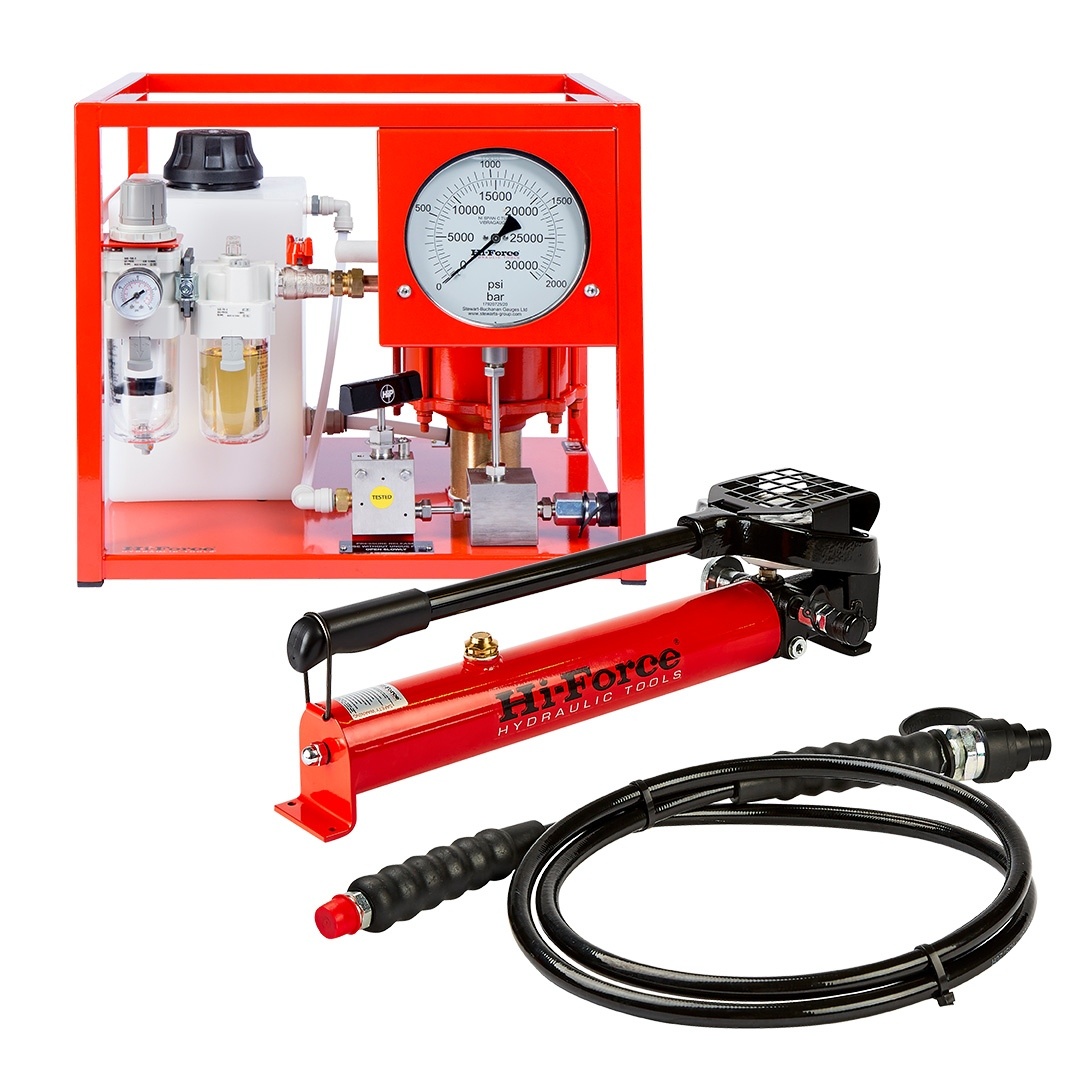

AHP-BTU
| Model Number | Usable Oil Capacity litres | Oil Flow Per Stroke cm3 | Outlet Coupler | Air consumption | Weight kg |
|---|---|---|---|---|---|
| AHP275BTU | 7.5 | 1.6 | STFC4 | 28 scfm (0.79 m3/min) | 20 |
| AHP2-237BTU | 7.5 | 6.1 | STFC4 | 56 scfm (0.79 m3/min) | 24 |
HPX-BTU
| Model Number | Usable Oil Capacity Litres | Displacement per stroke (cm3) | Outlet Coupler | Weight kg | |
|---|---|---|---|---|---|
| 1st stage | 2nd stage | ||||
| HPX1500BTU | 1.2 | 20 | 1 | STFC4 | 6.5 |

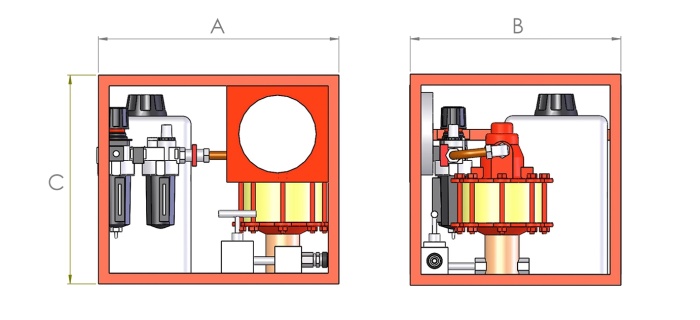

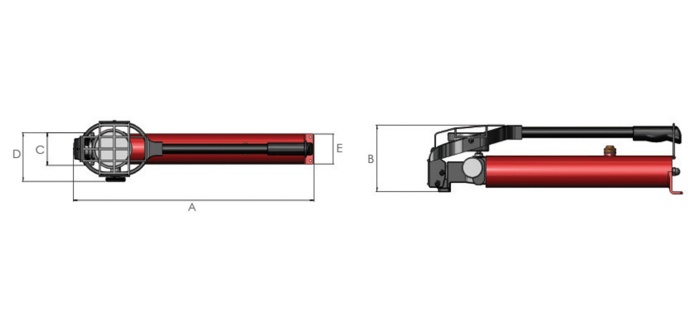

Dimension
Dimesnions (mm)
| Model Number | A | B | C | D | E |
|---|---|---|---|---|---|
| AHP275BTU | 450 | 395 | 395 | - | - |
| AHP2-237BTU | 450 | 390 | 465 | - | - |
| HPX1500BTU | 615 | 161 | 84 | 125 | 76. |
