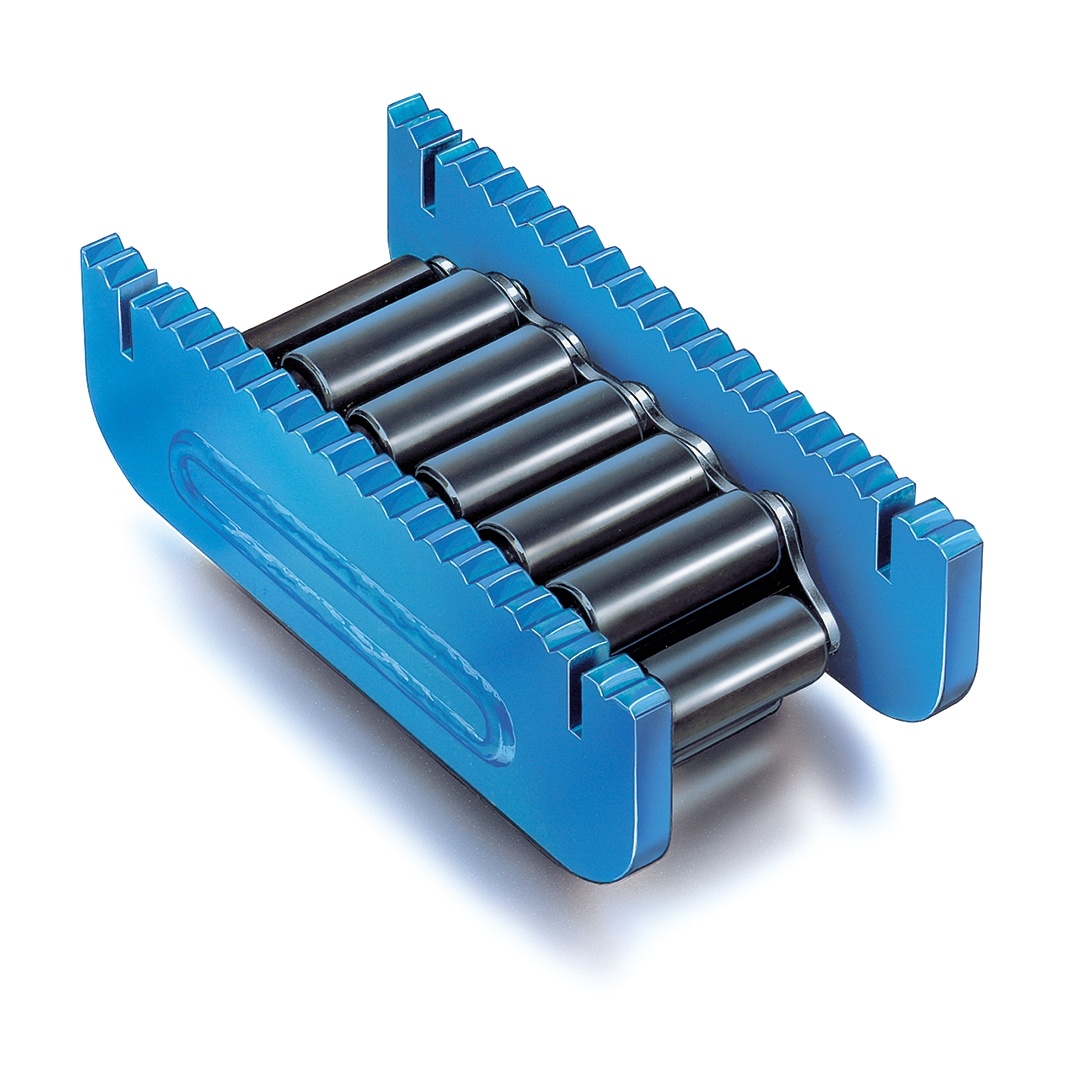

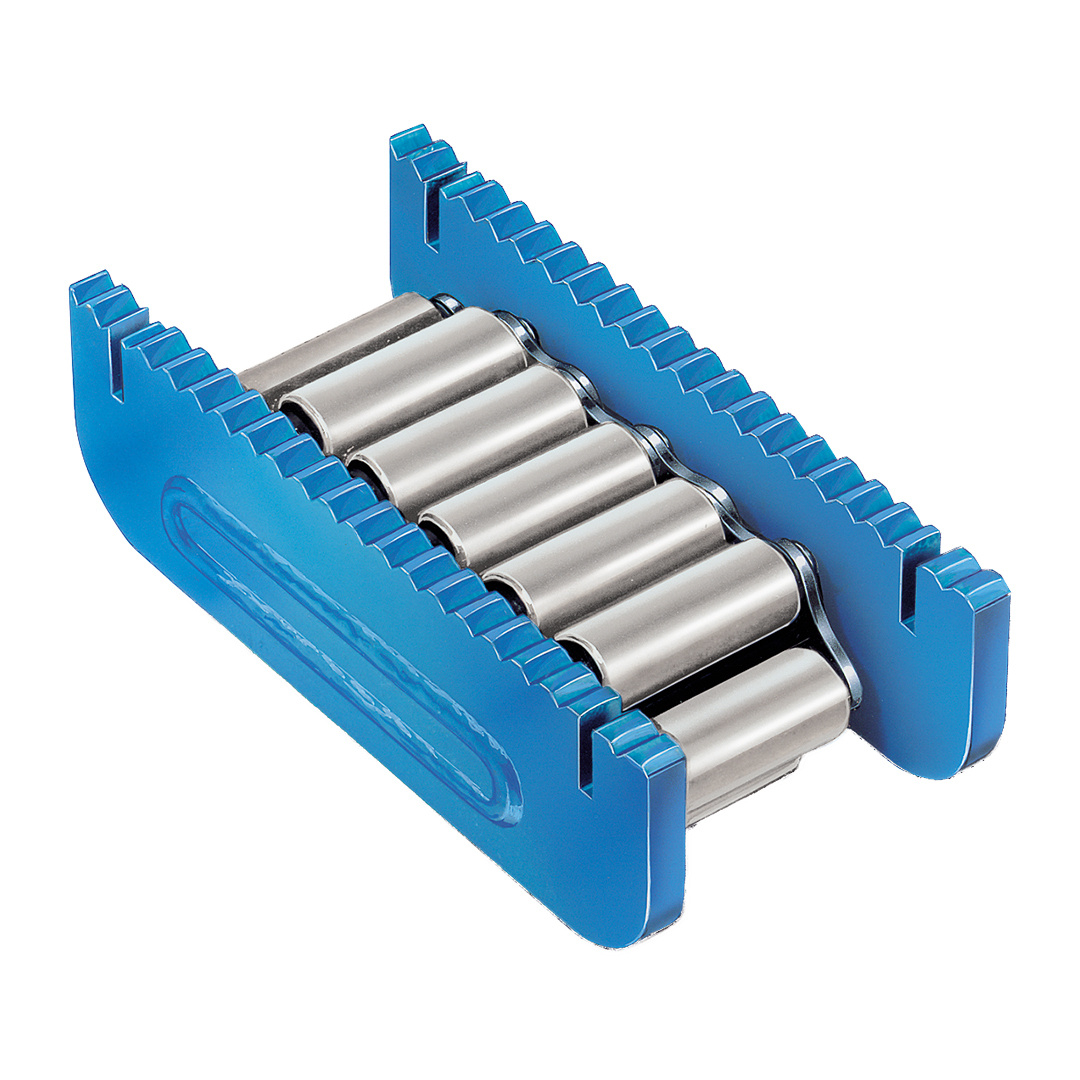

Model N
- For short variable ways of transportation
- Movement of moderately heavy loads, e.g. machines, parts of machines for installation works
- A speed of 5m/min should not be exceeded.
- Allows turning corners by using turntables and packing plates
- Frequently used as a complete transport kit

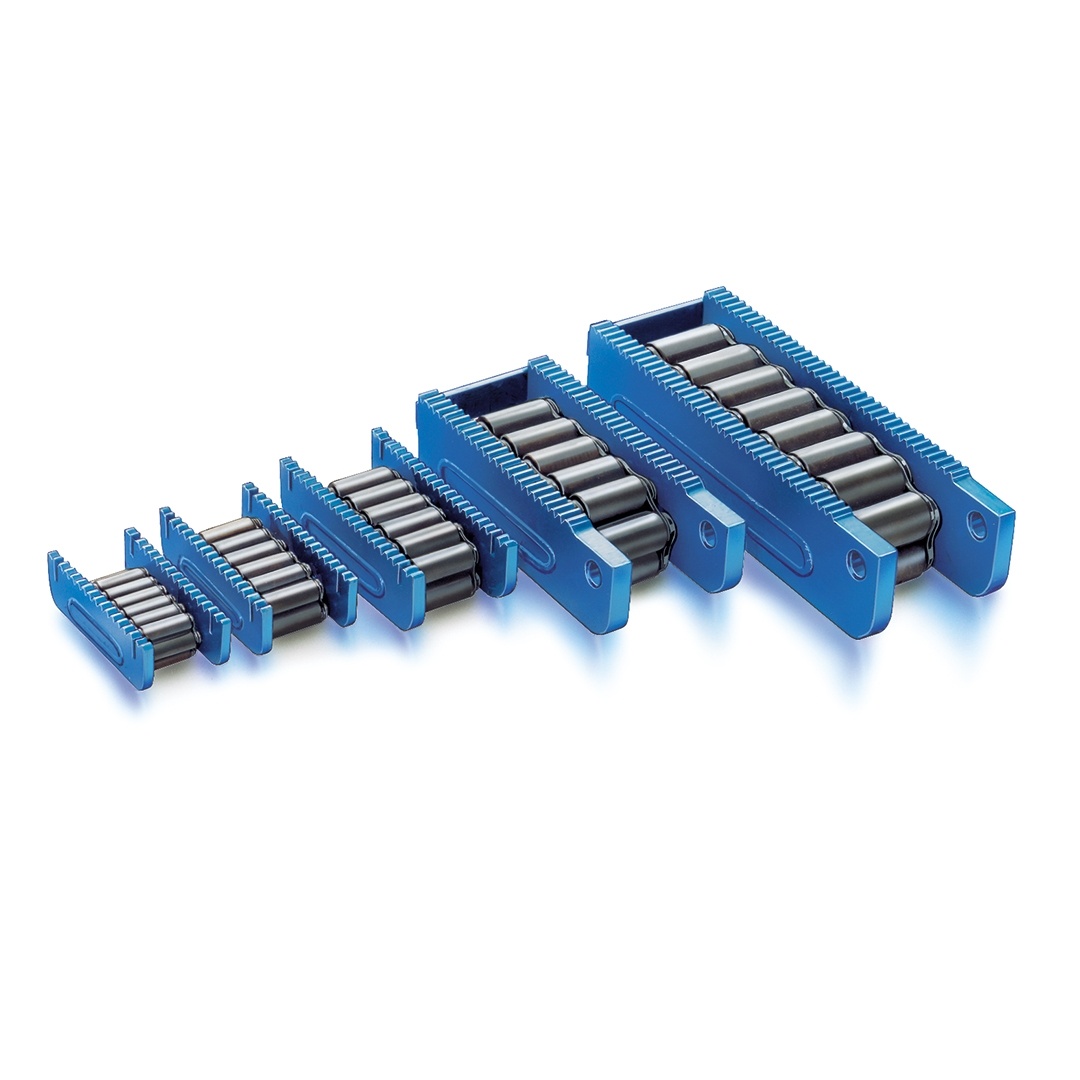

Product Overview
The track surface is important for the safe transportation of the load, not the carrying capacity of the Roller Skate. Tiles are insufficient. The movement on tarmac and concrete is restricted. In these cases, a steel plate of a minimum of 10mm thickness is recommended.
Product resources
- Stable, solid basic construction
- Low level construction
- Accessories for turning corners
Technical specifications
Supporting rolls | Roll number | Capacity max kN | Weight kg |
---|---|---|---|
5 | 15 | 100 | 5.2 |
4 | 13 | 150 | 7.3 |
4 | 13 | 300 | 13.0 |
4 | 13 | 600 | 32.0 |
6 | 17 | 800 | 61.0 |
Turntable
Size | a | b | c | Ø d | e | f | g | i | Weight kg |
---|---|---|---|---|---|---|---|---|---|
I | 220 | 73 | 42 | 130 | 11 | 8 | 87 | 5 | 4.5 |
II | 220 | 86 | 42 | 130 | 11 | 8 | 87 | 5 | 4.5 |
III | 250 | 96 | 48 | 150 | 11 | 8 | 108 | 5 | 6.7 |
IV | 275 | 114 | 61 | 190 | 3 | 165 | 11 | 13.7 | |
V | 360 | 128 | 61 | 220 | 3 | 235 | 11 | 18.9 |
Note: All dimensions in mm
Packing Plate
Size | a | b | c | d | f | g | i | Weight kg |
---|---|---|---|---|---|---|---|---|
I | 149 | 73 | 42 | 120 | 8 | 87 | 5 | 3.7 |
II | 149 | 86 | 42 | 120 | 8 | 87 | 5 | 3.7 |
III | 178 | 96 | 48 | 130 | 8 | 108 | 5 | 5.3 |
IV | 270 | 114 | 61 | 180 | 3 | 165 | 11 | 13.8 |
V | 350 | 128 | 61 | 200 | 3 | 235 | 11 | 18.8 |
Note: All dimensions in mm

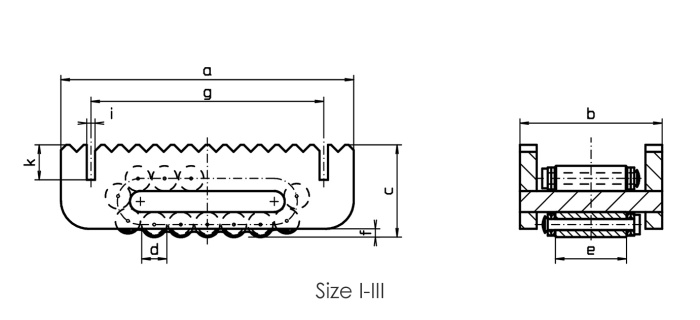

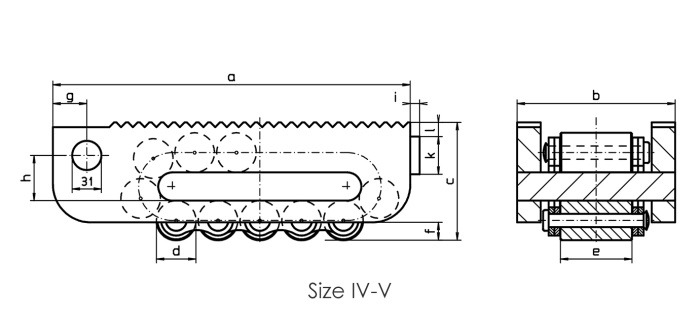

Dimension
Dimensions (mm)
Size | a | b | c | Ød | e | f | g | h | i | k | l |
---|---|---|---|---|---|---|---|---|---|---|---|
I | 210 | 100 | 66 | 18 | 51 | 6 | 167 | 6 | 25 | ||
II | 220 | 113 | 75 | 24 | 60 | 10 | 180 | 6 | 25 | ||
III | 270 | 130 | 92 | 30 | 68 | 10 | 217 | 6 | 25 | ||
IV | 380 | 168 | 125 | 42 | 76 | 16 | 36 | 48 | 10 | 40 | 15 |
V | 530 | 182 | 145 | 50 | 86 | 19 | 36 | 60 | 10 | 40 | 15 |
