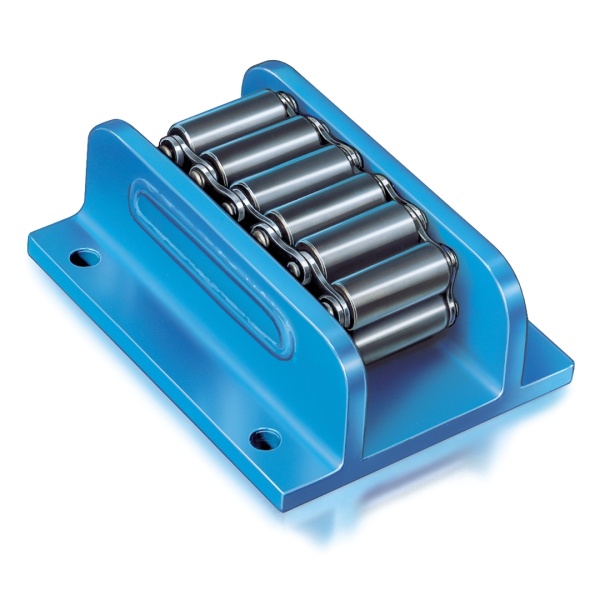

Börkey product

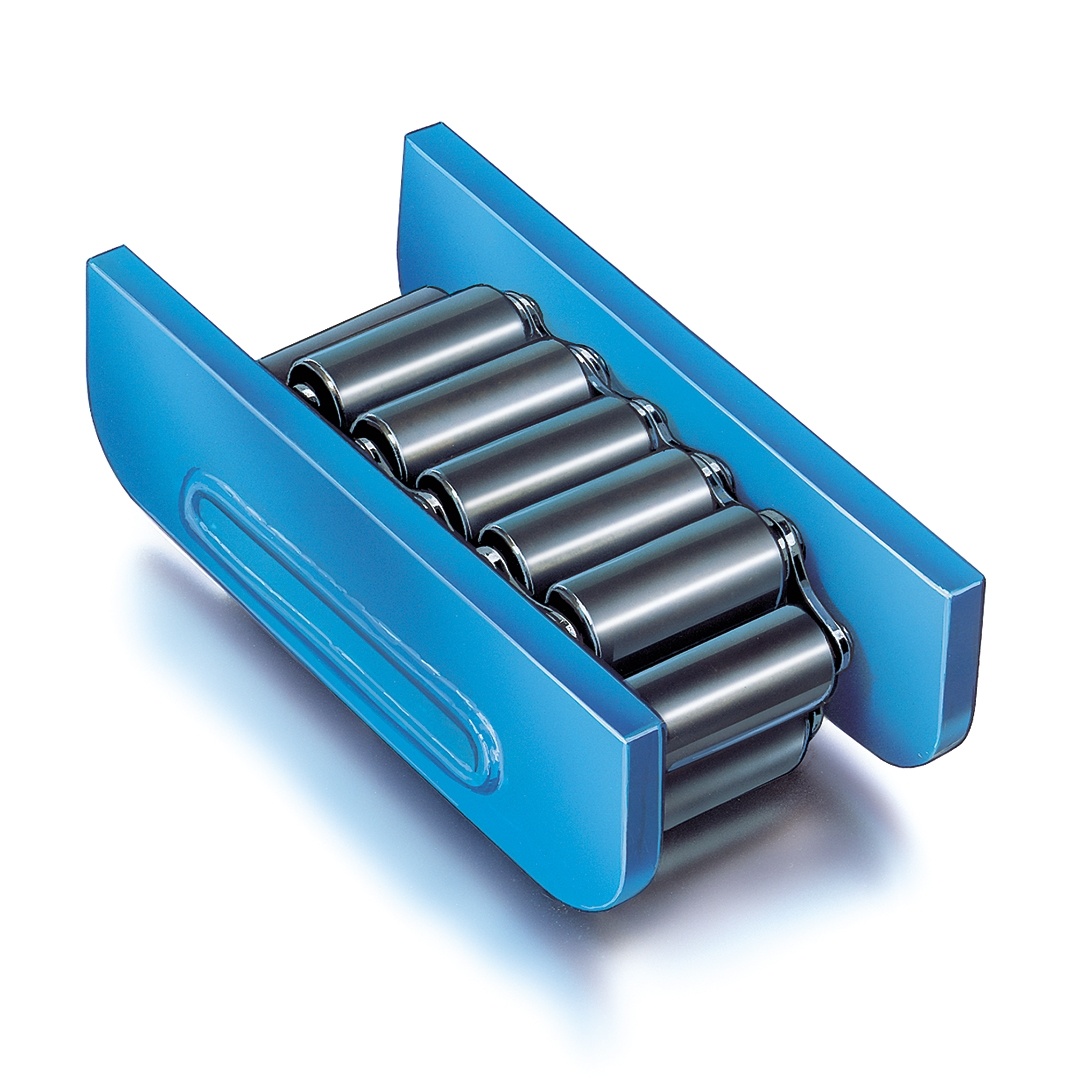

Model C

For short distances
Movement of moderately heavy loads e.g. to transport materials in ovens, for shuttering, concreting or stocking techniques
can be welded to the load
ideal model for confined spaces

Product Overview

Available with hardened center plate (=models C-H) or additional with higher tensile rller material 50CrV4 (=models C-H-50CrV4). If the rollers are being used to their maximum carrying capacity or with lengthy intervals between use, choose models with a hardened center plate (=model C-H). The rolling resistance depends on the track. For smaller models I-IIIv 7-5%, for larger models 5-3% of the total load

Stable, solid basic construction
Low level construction and smooth top achieved after welding, models N and B are the same height
In case of possible overload, choose chain roller material 50CrV4

Product resources

Model C Catalogue Page

Supporting rolls	Roll number	Capacity max kN	Weight kg
5	15	100	5.0
4	13	150	7.0
4	13	300	12.5
4	13	600	32.0
6	17	800	61.0

Dimensions (mm)

Size	a	b	c	Ød	e	f
I	210	100	63	18	51	6
II	220	113	73	24	60	10
III	270	130	90	30	68	10
IV	380	168	126	42	76	19
V	530	182	146	50	86	19
