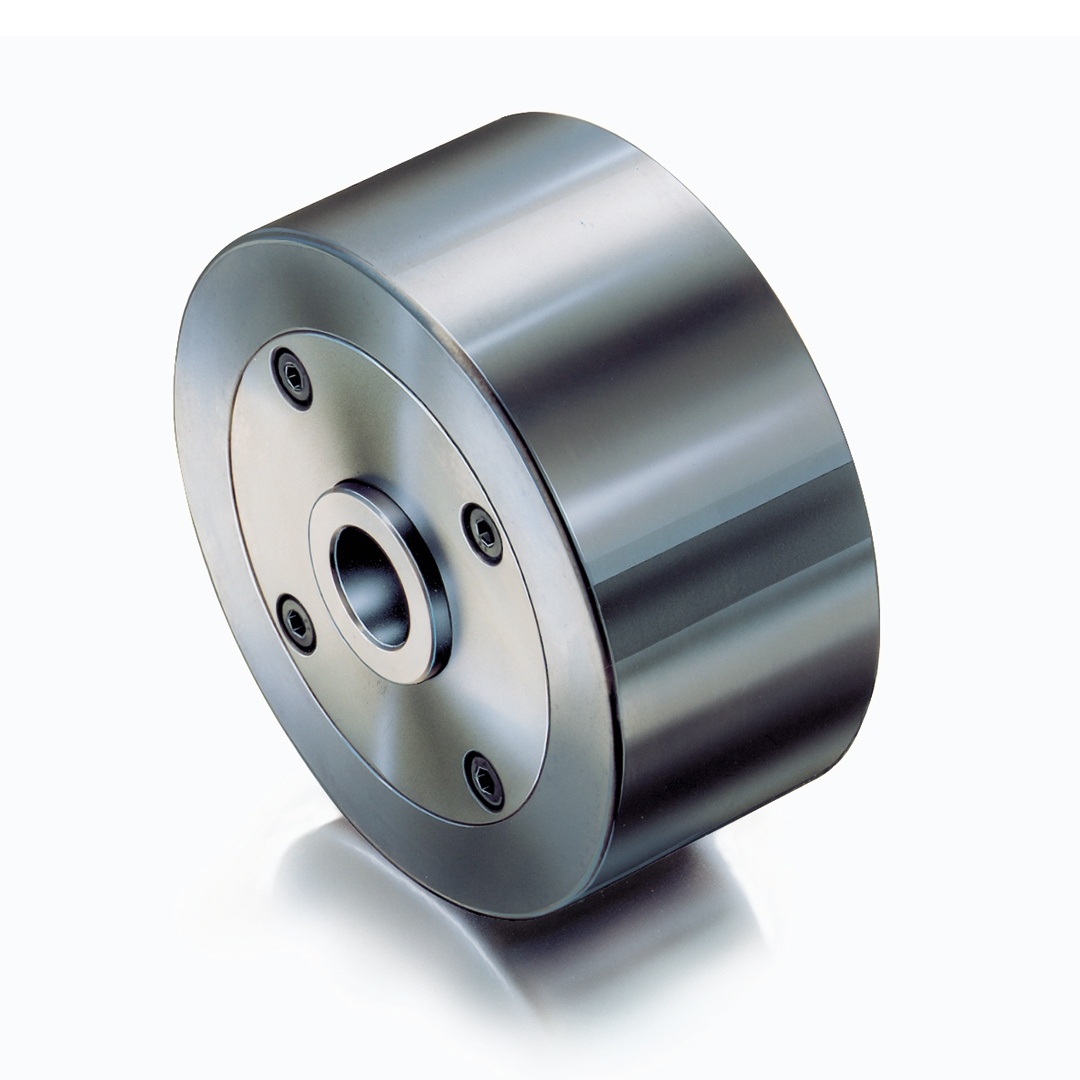

Börkey product
Model S
- For robust use, e.g. on construction sites
- Used as a machine element
- For moving loads with speeds up to max. 100 m/min
- With higher demands on load capacity and robustness
Product Overview
Test according to DIN 4422 at the material testing office passed for steel wheel 150 S.
- Solid, ball-bearing basic construction
- Available with different suspensions
- Special constructions on customer request
Product resources
Technical specifications
| Size | Suitable suspensions of the series | Load capacity (kN) | Weight (kg) | ||
|---|---|---|---|---|---|
| Steel | |||||
| 150S | SF | SL | SD | 30 | 9.7 |
| 175S | SF | SL | SD | 30 | 13.6 |
| 200S | SF | SL | SD | 30 | 18.1 |
| 225S | SF | SD | 30 | 23.3 | |
| 250S | SF | SD | 35 | 29.3 | |
| 275S | SF | SD | 35 | 36.3 | |
| 300S | SF | 35 | 44.4 | ||
Dimension
Dimensions (mm)
| Size | a | b | Ø d1 | Ø d2 | Ø d3 |
|---|---|---|---|---|---|
| Steel | |||||
| 150S | 80 | 90 | 150 | 30 | 50 |
| 175S | 80 | 90 | 175 | 30 | 50 |
| 200S | 80 | 90 | 200 | 30 | 50 |
| 225S | 80 | 90 | 225 | 30 | 50 |
| 250S | 80 | 90 | 250 | 30 | 50 |
| 275S | 80 | 90 | 275 | 30 | 50 |
| 300S | 80 | 90 | 300 | 30 | 50 |
