Borkey heavy duty wheels model S AB A ABP

Börkey product

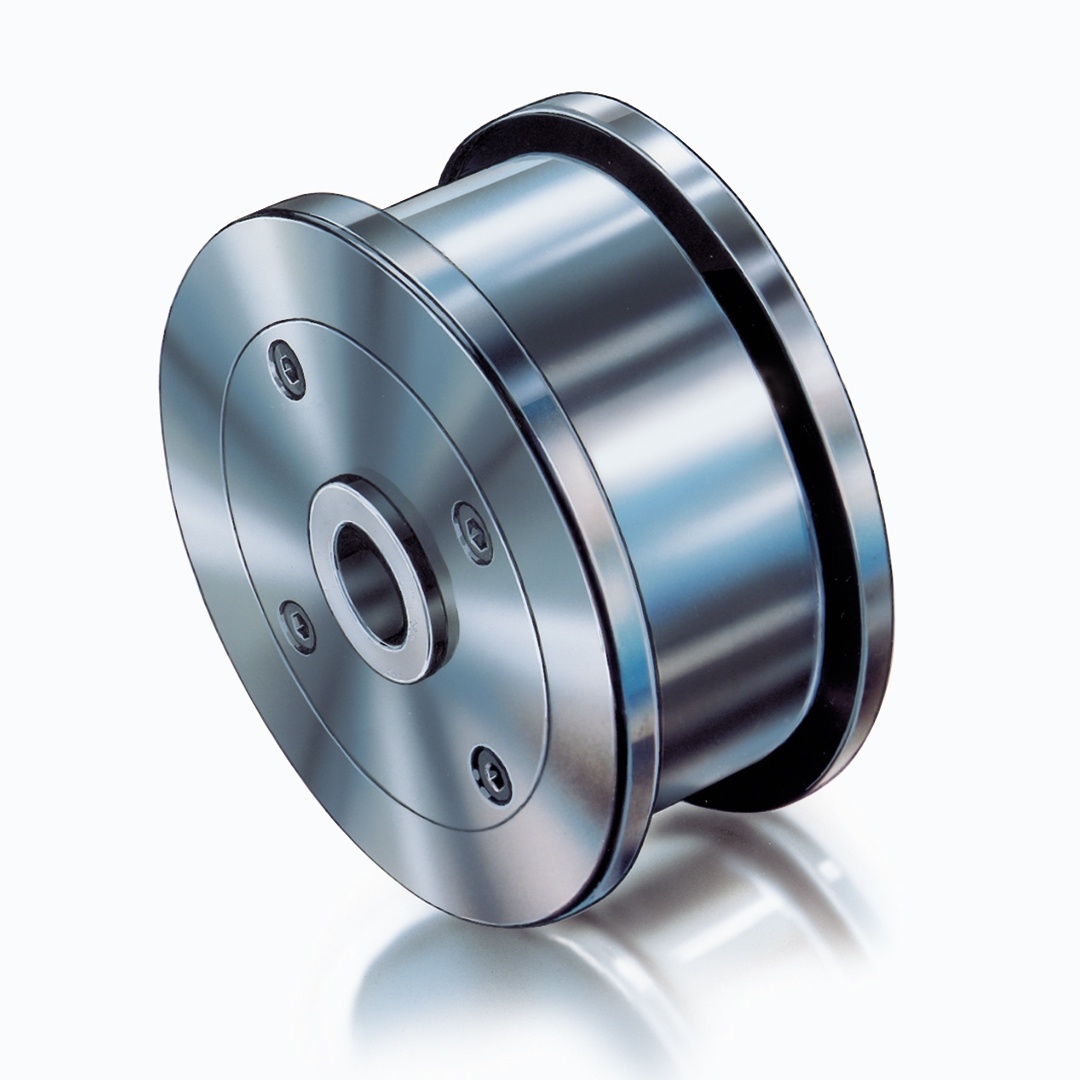

Model S-A(B), S-A(B)/P

For driving on profiles (beams/rails)
Used as machine elements
For moving loads with speeds up to max. 100 m/min
With one wheel flange (=A) or with two wheel flanges (=B)
Maximum distance between two wheel flanges x = 55 mm for the standard wheel

Product Overview

Maintenance-free construction, which is used particularly in machine factories. Narrower distances between the wheel flanges on request, distances > 55 mm on request. Can be combined with fixed castors. Wheel body can be upgraded for an additional charge, is standard with the S/P series without an additional charge.

Solid, all-steel construction with steel (S) or spherical roller bearings (S/P)
Also available as a fixed castor
Special constructions on customer request

Product resources

Model S-A(B), S-A(B)/P Catalogue Page

Model		a	b	c	Ø d1	Ø d2	Ø d3	Ø d4		Suitable for this:Suspensions of the series	Load Capacity (kN)	Weight (kg)
1 Wheel Flange	2 Wheel Flanges											A	B
125 SA	125 SB	80	90	67.5	125	150	30	50	55	SF..SA(B)	20	7.5	7.9
150 SA	150 SB	80	90	67.5	150	175	30	50	55	SF..SA(B)	25	10.2	10.7
175 SA	175 SB	80	90	67.5	175	200	30	50	55	SF..SA(B)	30	14.1	14.7
200 SA	200 SB	80	90	67.5	200	225	30	50	55	SF..SA(B)	30	18.7	19.4

Note: All dimensions in mm

Model		a	b	c	Ø d1	Ø d2	Ø d3	Ø d4	x max	Suitable for this:Suspensions of the series	Load capacity (kN)	Weight (kg)
1 Wheel Flange	2 Wheel Flanges											A	B
150 SA/P	150 SB/P	80	90	67.5	150	150	30	50	55	SF..SA(B)/P	40	10.4	10.9
175 SA/P	175 SB/P	80	90	67.5	175	175	30	50	55	SF..SA(B)/P	40	14.3	14.9
200 SA/P	200 SB/P	80	90	67.5	200	200	30	50	55	SF..SA(B)/P	50	18.9	19.6
225 SA/P	225 SB/P	80	90	67.5	225	225	30	50	55	SF..SA(B)/P	50	24.3	25.1
250 SA/P	250 SB/P	80	90	67.5	250	225	30	50	55	SF..SA(B)/P	65	30.3	31:1

Note: All dimensions in mm
