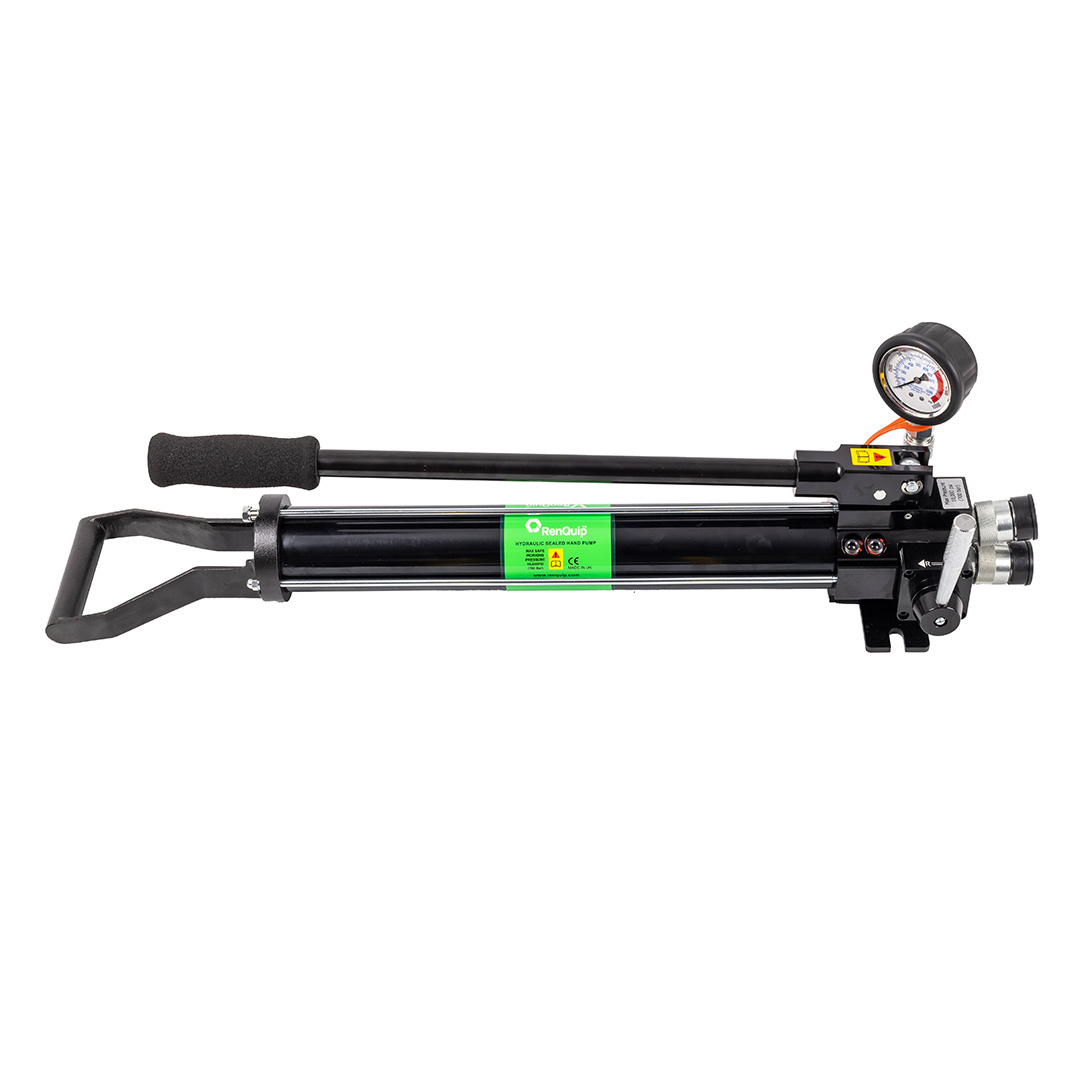

PHD Series
- Double-acting sealed hand pumps
- Lightweight construction for easy handling
- Supplied complete with hydraulic pressure gauges, gauge block and screw coupler
Product Overview
The PHD Series hydraulic hand pumps are designed for operation with double-acting tools and feature an easy-to-use 3-position control valve, allowing the operator to Advance, Hold, and Retract double-acting hydraulic systems with precision.
Each PHD pump is equipped with a sealed, flexible reservoir that contracts as oil is pumped into the system, eliminating the need for an air vent and preventing accidental oil spillage. The flexible reservoir also allows the pump to function efficiently in any orientation without the risk of air entering the hydraulic system, preventing contamination and ensuring reliability and versatility in demanding environments.
- Two-speed design for faster operation and lower handle force
- Oil reservoir capacities up to 1100cc
- Maximum working pressure 700 bar (10,000 psi
Product resources
Technical specifications
| Model number | Oil Capacity (cc) | Tool Weight (kg) |
|---|---|---|
| PH300D | 300 | 5.5 |
| PH580D | 580 | 6.5 |
| PH1100D | 1100 | 7.5 |

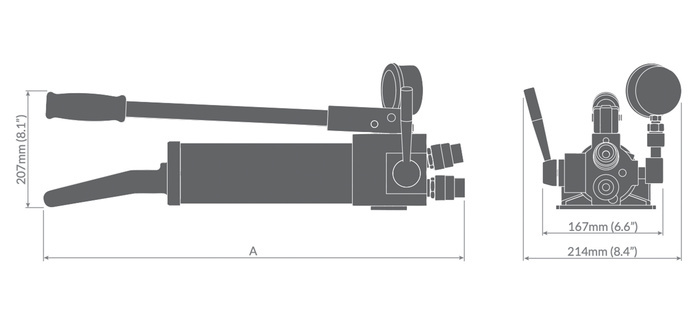

Dimension
Dimensions (mm)
| Model number | Length A | Width | Height |
|---|---|---|---|
| PH300D | 480 | 214 | 207 |
| PH580D | 600 | 214 | 207 |
| PH1100D | 810 | 214 | 207 |
