PHS Series
- Single port, sealed hand pumps
- Lightweight construction for easy handling
- Supplied complete with hydraulic pressure gauges, gauge block and screw couplers
Product Overview

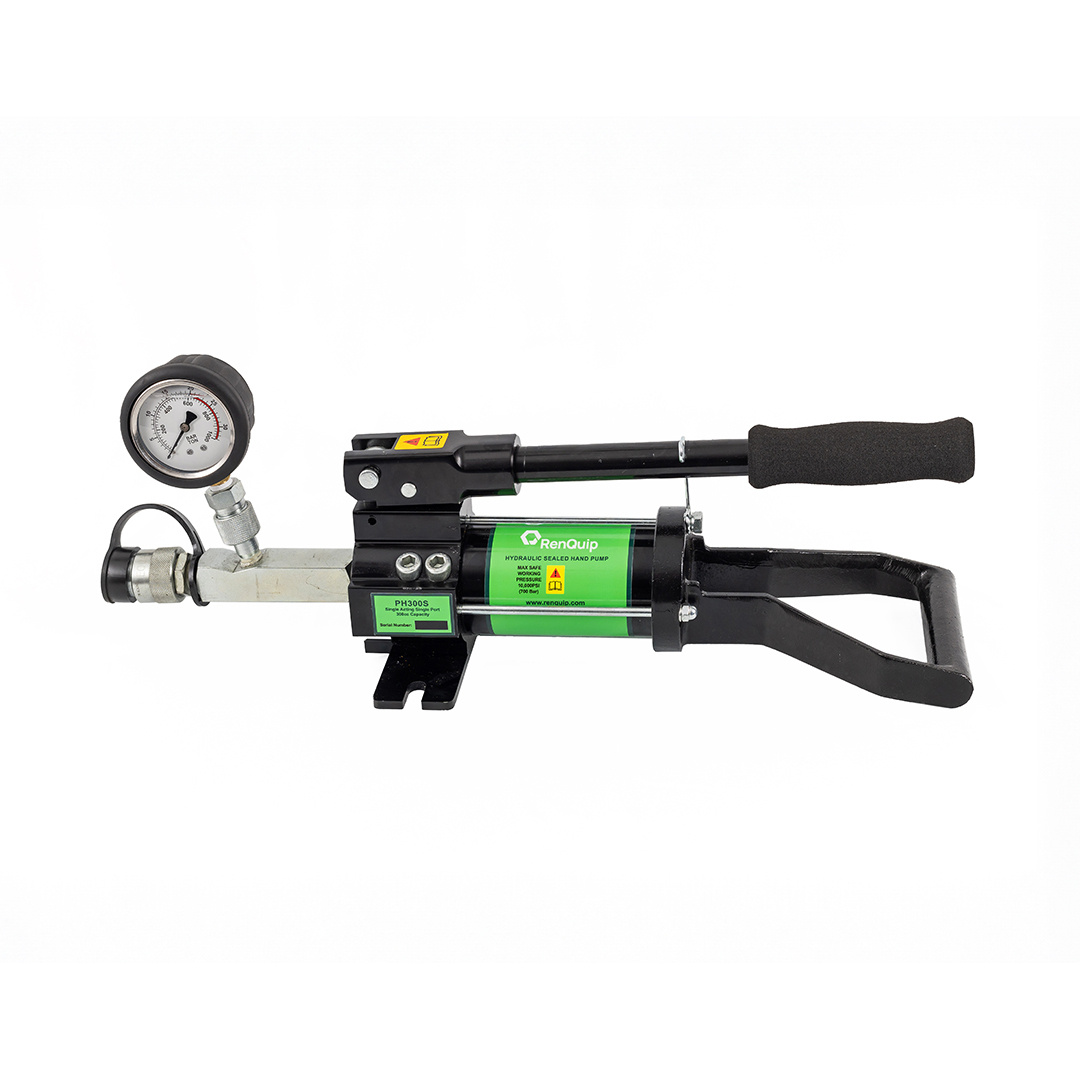

RenQuip’s PHS Series sealed hydraulic hand pumps deliver hydraulic pressure of up to 700 bar (10,000 psi) for use with single-acting hydraulic systems.
Each pump is equipped with a single outlet port and an integrated release valve, and features a flexible reservoir that contracts as oil is pumped into the system. This innovative design eliminates the need for an air vent and prevents accidental oil spillage from the reservoir. The flexible reservoir also enables the pump to operate effectively in any orientation without drawing air into the hydraulic system, reducing the risk of contamination and enhancing overall reliability and versatility.
- Two-speed design for faster operation and lower handle force
- Oil reservoir capacities up to 1100cc
- Maximum working pressure 700 bar (10,000 psi)
Product resources
Technical specifications
| Model number | Oil Capacity (cc) | Tool Weight (kg) |
|---|---|---|
| PH300S | 300 | 4.5 |
| PH580S | 580 | 5 |
| PH1100S | 1100 | 6 |

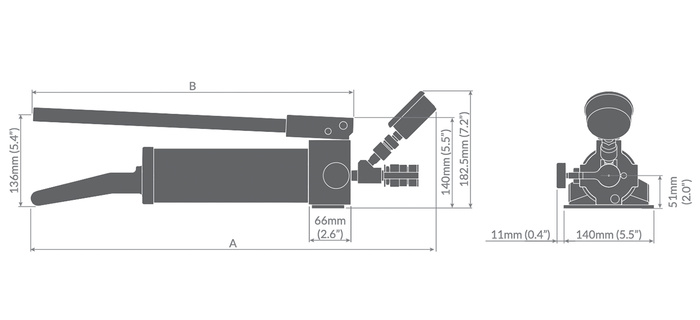

Dimension
Dimensions (mm)
| Model number | Length A | Length B | Width | Height |
|---|---|---|---|---|
| PH300S | 554 | 360 | 140 | 183 |
| PH580S | 643 | 490 | 140 | 183 |
| PH1100S | 867 | 537 | 140 | 183 |
