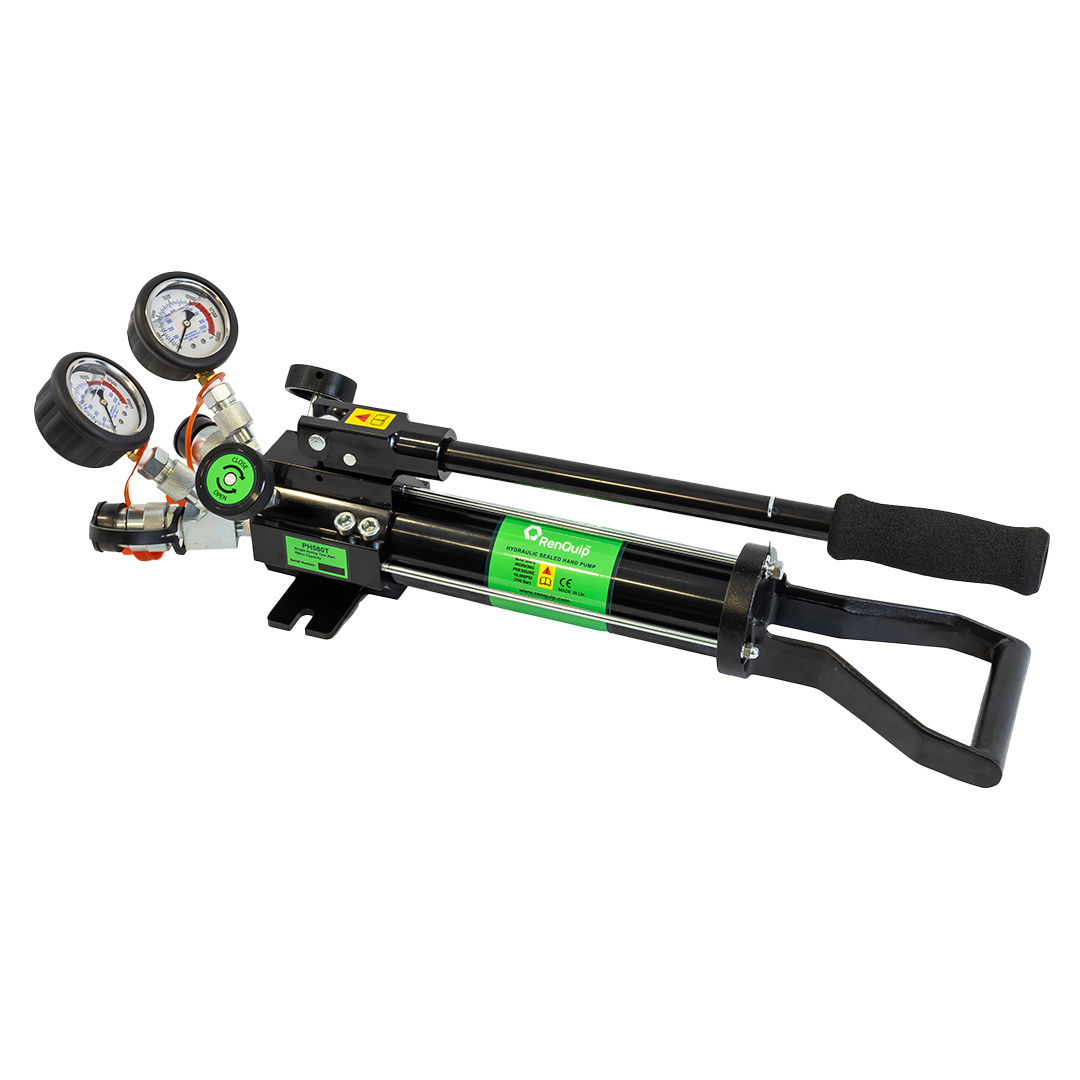

PHT Series
- Twin port, sealed hand pumps
- Lightweight construction for easy handling
- Supplied complete with hydraulic pressure gauges, gauge block and screw couplers
Product Overview
The PHT Series single-acting hydraulic hand pumps from RenQuip feature two outlet ports, each with its own control valve, allowing the operator to manage two hydraulic systems either independently or simultaneously when both valves are open. This configuration makes the PHT Series ideal for applications involving two tools, enabling precise load levelling and improved operational control.
Each PHT pump is fitted with a sealed, flexible reservoir that contracts as oil is pumped into the system. This innovative design eliminates the need for an air vent and prevents accidental oil spillage from the reservoir. The flexible reservoir also enables the pump to operate effectively in any orientation without drawing air into the hydraulic system, reducing the risk of contamination and enhancing overall reliability and versatility.
- Two-speed design for faster operation and lower handle force
- Oil reservoir capacities up to 1100cc
- Maximum working pressure 700 bar (10,000 psi)
Product resources
Technical specifications
| Model number | Oil Capacity (cc) | Tool Weight (kg) |
|---|---|---|
| PH300T | 300 | 5.5 |
| PH580T | 580 | 6 |
| PH1100T | 1100 | 7 |
Dimension
Dimensions (mm)
| Model number | Length A | Length B | Width | Height |
|---|---|---|---|---|
| PH300T | 554 | 360 | 160 | 186 |
| PH580T | 643 | 490 | 160 | 186 |
| PH1100T | 867 | 537 | 160 | 186 |
