Spark Resistant Series

Product Overview

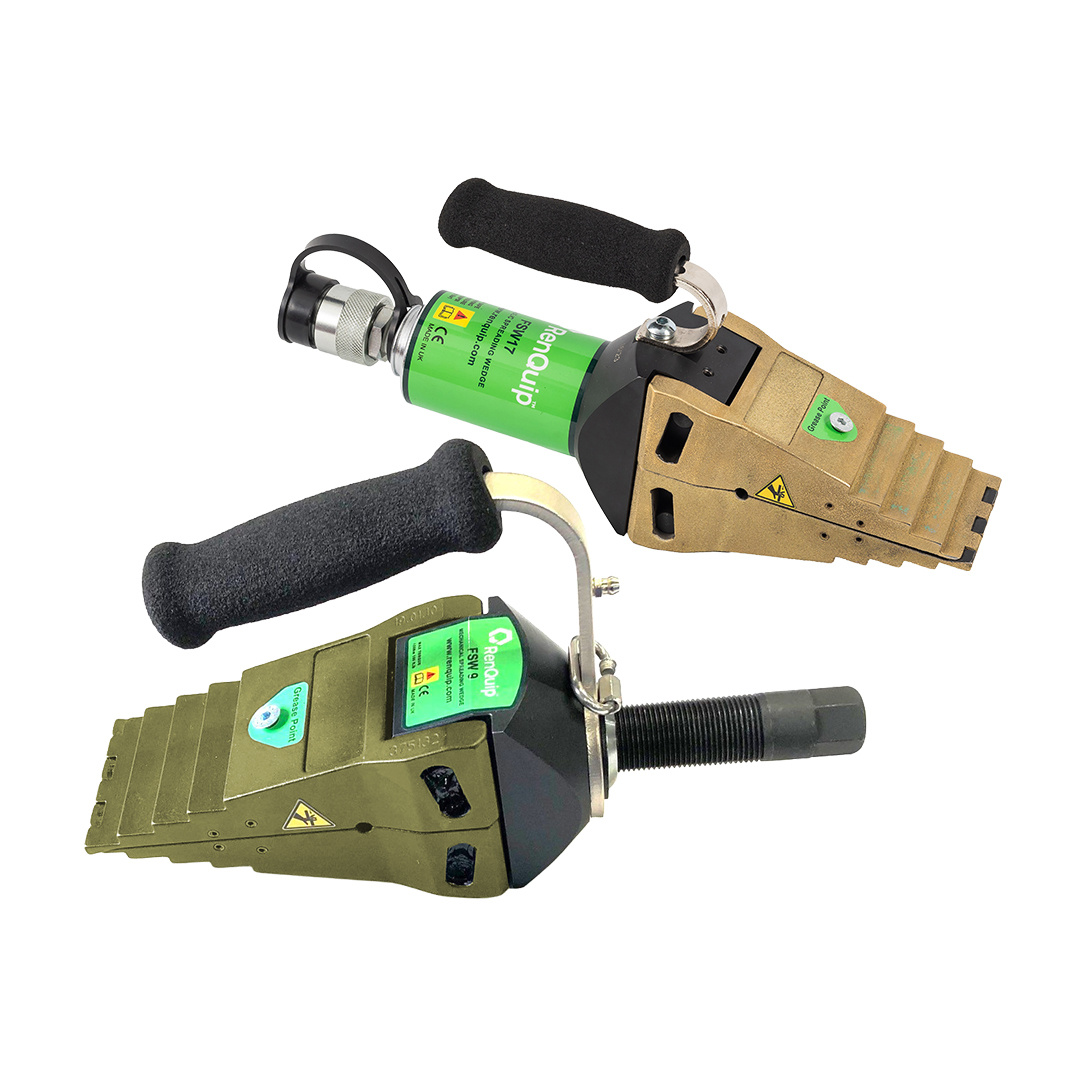

RenQuip has developed a range of spark-resistant flange spreading tools designed to safely separate flange joints without generating sparks.

Manufactured using bronze and available as individual jaws and stepped blocks compatible with the FSW flange spreaders, these tools support flange separation during installation, maintenance, testing, and decommissioning while minimising ignition risks in hazardous areas.

Although the contact surfaces are manufactured from certified non-sparking bronze, the internal structure retains high-strength forged steel to ensure durability, load integrity, and a reliable safety factor.

For use in hazardous environments
Individual components can be retrofitted to FSW17 and FSW9 tools

Product resources

Spark Resistant Catalogue Page

Model number	Min. Flange gap (mm)	Jaw Width (mm)	Jaw step (mm)	Max Spreading Force (kN)	Max Applied Torque (Nm)	Max Spreading Distance (mm)	Max Wedge Protrusion (mm)	Pump Capacity	Tool Weight (kg)
FSW9K-BRONZE	6	66	15	94	200	81	38	-	5.5
FSW9D-BRONZE	6	66	15	94	200	81	38	-	5.5
FSW17P-BRONZE	6	66	15	163	-	81	38	-	8.5
FSW17K-BRONZE	6	66	15	163	-	81	38	-	7
FSW17H-BRONZE	6	66	15	163	-	81	38	-	7
FSW17D-BRONZE	6	66	-	163	-	81	38	300	7
FSW17M-BRONZE	6	-	15	163	-	-	-	-	7
FSW Bronze Jaws	6	66	-	94	200	81	38	-
FSW Bronze Stepped Blocks	6	66	-	94	200	81	38	-

Model number	Length	Width	Height
FSW9K-BRONZE	80	160	290
FSW9D-BRONZE	80	160	290
FSW17P-BRONZE	76	155	440
FSW17K-BRONZE	76	155	350
FSW17H-BRONZE	76	155	350
FSW17D-BRONZE	76	155	350
FSW17M-BRONZE	76	155	350
